I installed my IDParts Rear Swaybar last weekend and snapped a couple pictures along the way and figured I'd share how I did it. Nothing new under the sun I'm sure.

First I measured side to side and got the bar centered in the rear axle beam. Then I clamped the bar BELOW the beam as shown below. Mark the left and right side of the bar now so that, when you take the bar in/out while going through the drilling process, if there are any differences between sides of the bar they're accomodated for in the drilling.



Make sure to flip the bar over when you clamp it to the lower part of the beam - this will make your holes be at the correct angle. Make sure the front most edge of the swaybar is a little behind the front most edge of the lower web of the axle beam, ~1/16" or so. You'll see why this is important later.

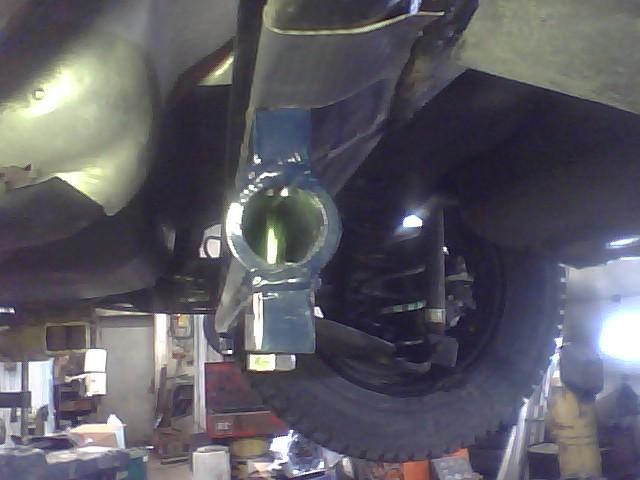

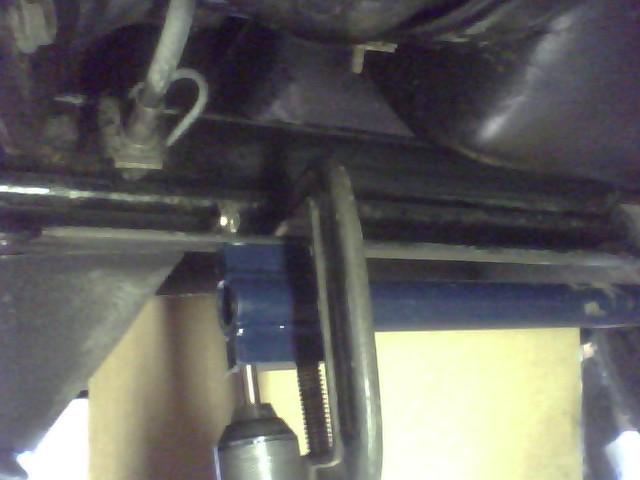

Now that the bar is clamped to the beam you can drill ONE hole in the beam using the holes in the RSB as a drill guide. DO NOT DRILL A PILOT HOLE. I used the tightest drill that would fit (3/8") so the hole is located as accurately as possible. Once ONE hole is drilled in the lower web of the beam - put a bolt in it and tighten the nut down - that way the bar can't move on that end.

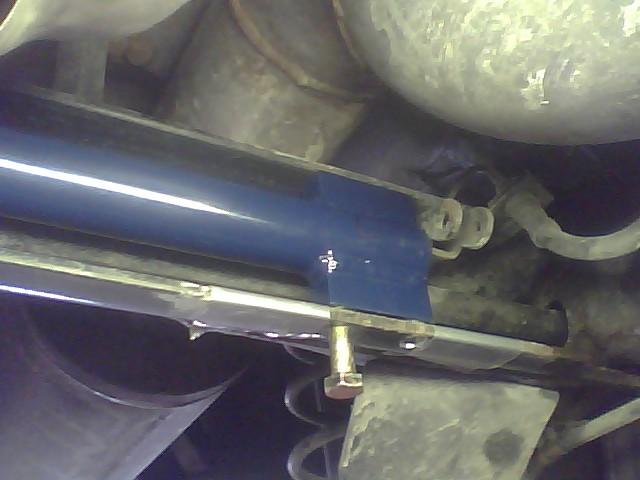

Then go drill one hole on the other end of the bar and put a bolt in that hole. Then go drill the remaining two holes in the bottom web (one on each side).

Now that all 4 holes are drilled in the lower web of the axle beam, flip the bar back over and slide one bolt through the drilled hole and up into the swaybar. It won't go all the way through since we have not drilled the top holes yet.


The hole was drilled the size of the bolt and I had to tap it in with a hammer - nice and snug.

Now go to the other side and install one bolt the same way.

BEFORE drilling the first hole in the top web of the axle beam, you'll need to pull the top of the bar back into the axle beam.

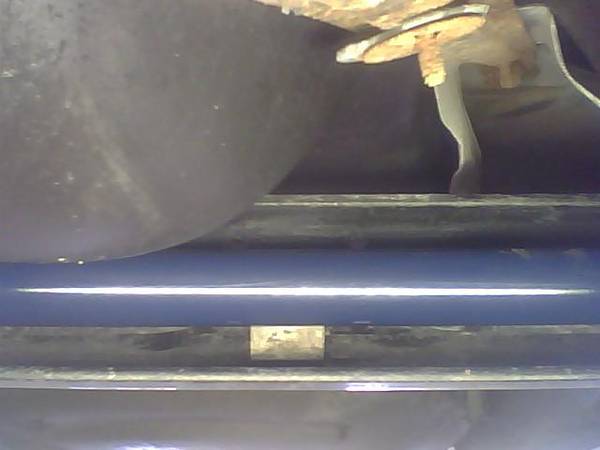

There's a rubber bushing in the center of the axle beam for the OEM swaybar.


Remember setting the front edge of the sway bar a little behind the front edge of the axle beam web earlier? Well, that rubber bushing is holding the sway bar "out" a little. Use the C-Clamp to pull the top of the bar in so that it's set back about 1/16" behind the front edge of the top web of the axle beam just like the bottom edge. Then drill the top hole using the same drill bit. The swaybar becomes a drill guide and locates the hole right where it should be relative to the bottom hole.

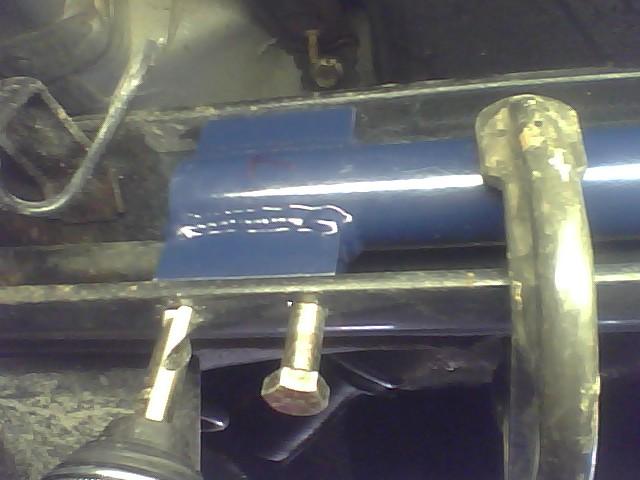

Install ONE bolt through and tighten the nut then drill one hole on the other side of the car. Similar to drilling the lower holes, the bolt(s) will locate the bar in the correct position while you drill the other holes.

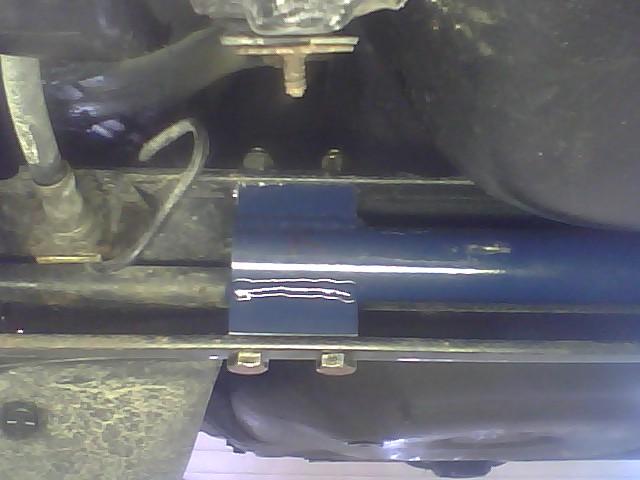

Here's the passenger side all bolted in

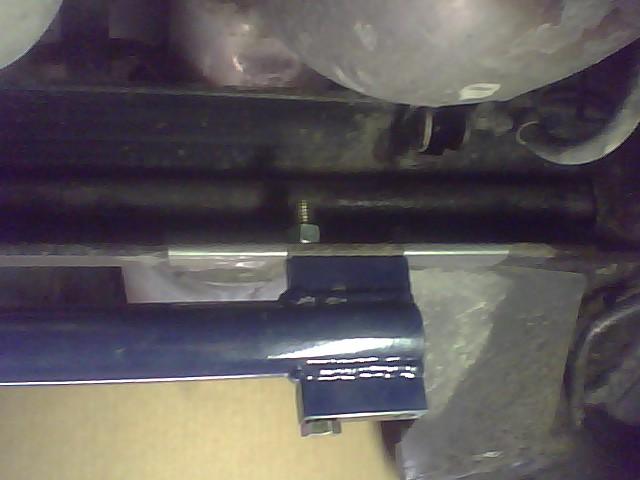

On the drivers side, I had to make some special accomodations to maintain clearance over my 4" exhaust pipe. Instead of drilling a through hole in the top web of the axle beam, I drilled and tapped it for the bolt. I used the same method as on the passenger side - but used the 3/8" drill bit to just put a pilot dimple in the top web. If you look close, you'll see the dimple through the right hole below.

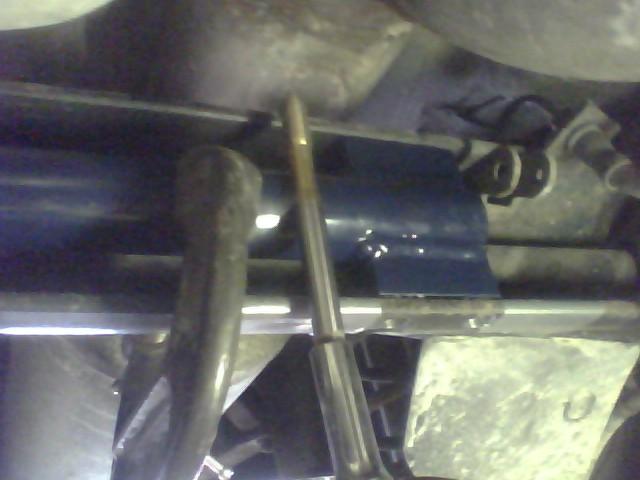

I then drilled it 19/64 (touch smaller than the tap drill size for 3/8-16) and tapped it with a long tap - again using the sway bar holes as a guide to get the tap centered and straight. The picture is blurry (cell phone), but that's a long tap that is 3/8" shank diameter so all I had to do was push and turn.



Continued on Next Post (dang 10 picture per post limit)


Fix_Until_Broke

Top Post Dawg
Joined
Aug 8, 2004
Location
Menomonee Falls, Wisconsin, USA
TDI
03 Jetta, 03 TT TDI
Continued from Previous Post (dang 10 picture per post limit)

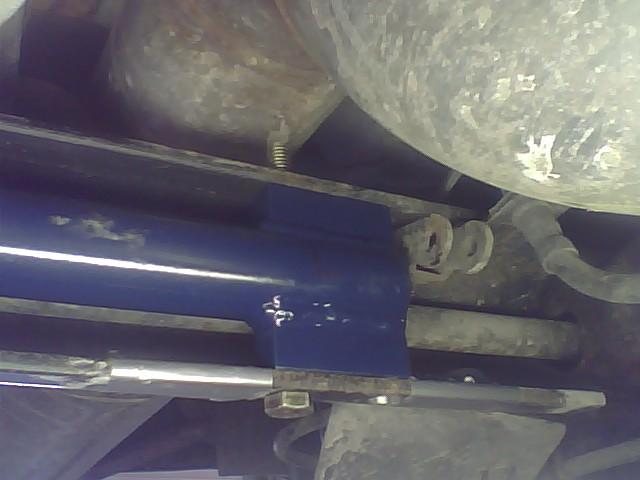

I then threaded the bolts into the top web of the axle beam with some red Loctite then cut off the excess bolt length with a sawzall flush with the top of the axle beam so as not to loose any clearance on my exhaust pipe. This picture is looking forward and down on the top of the rear axle beam.


That's about it - tighten all the nuts/bolts down and go for a test drive.

IMPORTANT TIP - go spend ~$10 on a good 3/8" cobalt drill bit. I've heard many complain that the axle beam material is hard to drill, but I used a cobalt drill bit and finished each hole in ~30 seconds with NO pilot holes. A drill bit like this should be included with each swaybar.







It definately makes a big difference in how the car handles. I'm probably being overly cautious here, but the first couple lane changes you make at speed - be prepared.

I still have my snow tires on, but have pushed it reasonably hard through some corners and it's very neutral in handling - more throttle gives more understeer, less throttle gives less understeer and almost feels like it will overstear but has not done it on me yet. On a hard (crank the wheel while coasting) right hand corner at ~30 MPH there was just a touch of oversteer - the back end went about 2-3 feet beyond and then pulled right back in line. Turn in is MUCH sharper and accurate. It takes a little getting used to, but I like it. I need to play with it more as I'm used to how the car handles for the last 135k miles without one and need to "re-learn" how it handles in emergency maneuvers.

I like it - not sure if it's how it should come from the factory for someone who's not used to how it handles, but it's definately an improvement in turn in, handling and overall feel of the car.
