Default 2007 GMC Canyon TDI Project

I have been working on this a little bit at a time for about 1 year now. Mainly just collecting some parts and developing the complete picture of how everything will work. I am getting close now so thought I would start to share some pictures.

Concept was originally a 2008 Ranger, but I like the canyon better and came with a 5000 lbs towing capacity and limited slip differential so I traded the Ranger straight across for the Canyon. Lot more parts available on the market for drop kits and accessories too. I intend to install a cab controlled air ride after the engine is in place. I want to be able to drop it 5/4 for high way driving, and lift when on short back road drives. I will also be able to level it when pulling trailers.








This one came with a 5cyl I5 and 4L65E auto transmission. It turns at around 2200 RPM at 110 kph. Very good gearing in place for TDI. I wanted to do the build first with the factory transmission. If I am happy with automatic, I have a 6L80E to swap in. If I am not happy with the Auto, I will go to a T56.





My transplant engine is a 2011 CJAA CR 2.0 TDI with 3000km on it. Yes, it is squeaky clean and just like new!

This is a picture of an engine being floor tested with the harness and ECU that was made up for my CR engine by Johan @ Van Vaught.







Video of run:

https://www.youtube.com/watch?v=TUsCY69oUv0




.
__________________
2001 Audi A4 - New Project - 2.0TDI CR 450HP All Turbo
http://forums.tdiclub.com/showthread.php?t=270527
2007 Canyon w/2011 TDI CJAA CR
http://forums.tdiclub.com/showthread.php?t=415533

Last edited by TDIsyncro; May 24th, 2014 at 22:28.
TDIsyncro is offline   Reply With Quote
Old May 24th, 2014, 22:26   #2
TDIsyncro
Veteran Member

TDIsyncro's Avatar

Join Date: Nov 2005
Location: Saskatoon, SK
TDI(s): Audi/TDI x 2
Fuel Economy: 50-60mpg HWY, depending on speed and wind
Default

I have already been running one of these things to asses the problems and opportunities there are in the project.

http://www.usshift.com/

I ordered it with the harness and was a fairly easy installation. Shift points are a lot more firm and it locks the torque converter at as low as 1400 RPM as far as I can tell. Comes with laptop software to custom create shift points.

I discovered the down side is that I am using a TPS, and this does not work with the cruise control system. The controller will drop line pressure off as soon as TPS position drops off with removal of ones foot from pedal. The only solution around that is to tag team it with a aftermarket cruise control system.

http://www.rostra.com/universal-afte...-by-rostra.php

Best idea I could come up with was a cable link to the TDI pedal, or one other idea I am working on in my mind...not sure about it yet.
__________________
2001 Audi A4 - New Project - 2.0TDI CR 450HP All Turbo
http://forums.tdiclub.com/showthread.php?t=270527
2007 Canyon w/2011 TDI CJAA CR
http://forums.tdiclub.com/showthread.php?t=415533

Last edited by TDIsyncro; May 24th, 2014 at 22:55.
TDIsyncro is offline   Reply With Quote
Old May 24th, 2014, 22:26   #3
TDIsyncro
Veteran Member

TDIsyncro's Avatar

Join Date: Nov 2005
Location: Saskatoon, SK
TDI(s): Audi/TDI x 2
Fuel Economy: 50-60mpg HWY, depending on speed and wind
Default

future2
__________________
2001 Audi A4 - New Project - 2.0TDI CR 450HP All Turbo
http://forums.tdiclub.com/showthread.php?t=270527
2007 Canyon w/2011 TDI CJAA CR
http://forums.tdiclub.com/showthread.php?t=415533
TDIsyncro is offline   Reply With Quote
Old May 24th, 2014, 22:26   #4
oldpoopie

oldpoopie's Avatar

Join Date: May 2001
Location: Portland Oregon
Default

Neat!
__________________
Pacific Northwest TRUSTED TDIClub mechanic

Email me, justgrow@gmail.com
oldpoopie is offline   Reply With Quote
Old May 26th, 2014, 18:14   #5
TDIsyncro
Veteran Member

TDIsyncro's Avatar

Join Date: Nov 2005
Location: Saskatoon, SK
TDI(s): Audi/TDI x 2
Fuel Economy: 50-60mpg HWY, depending on speed and wind
Default

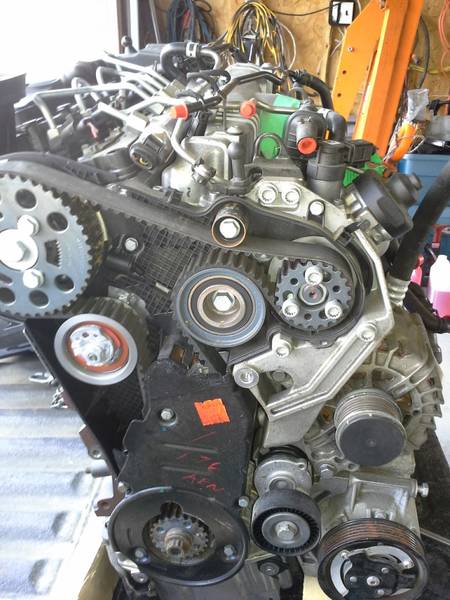

First step is prepping the engine.

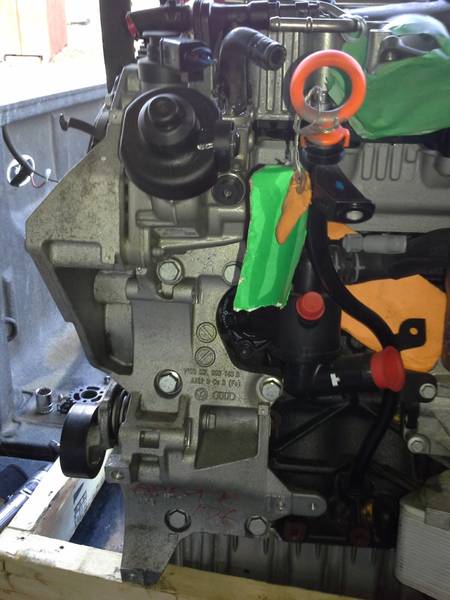

The OEM accessory bracket holds A/C and alternator only. I will replace this bracket from a 2010 Audi A4 2.0TDI. To do this I have to remove the high pressure fuel pump, timing belt, alternator, etc.

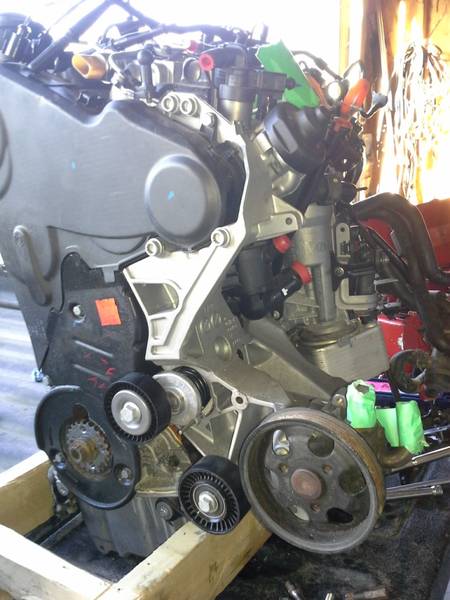

The CJAA OEM bracket also covers one of the bolt holes for the driver side engine mount.

New bracket installed.

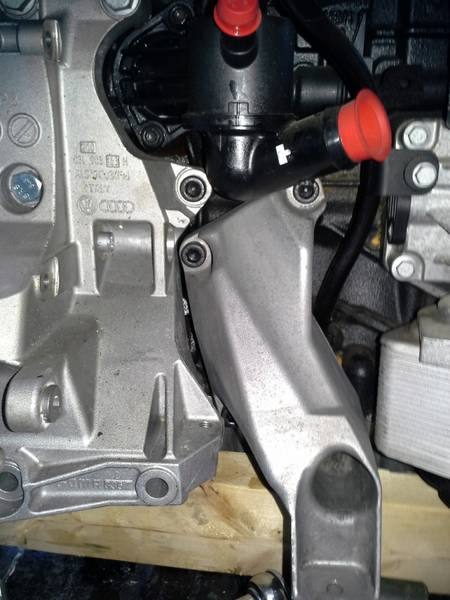

Bolt hole is clear to install motor mount. motor mount from 2004/5 Passat TDI.

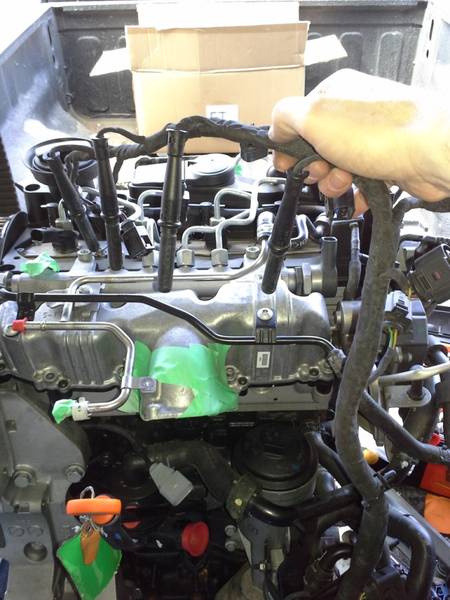

Installation of wire harness.

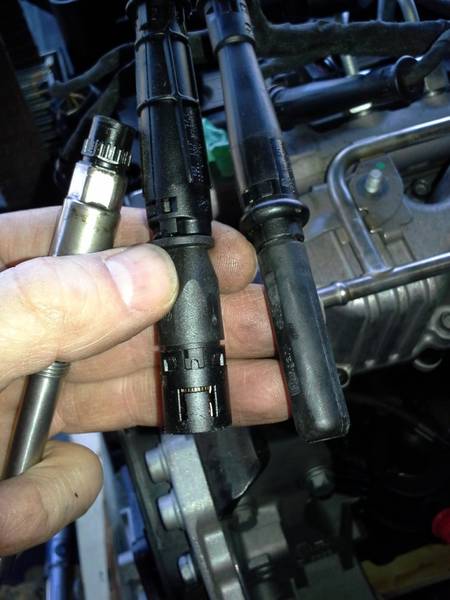

A bit of a problem. North American engines have pressure sensor GP. Apparently many European CR engines have only GP. The connectors do not fit. Rather than snipping the connectors off and replacing them, Johan has some European GP on way to me. I hope!

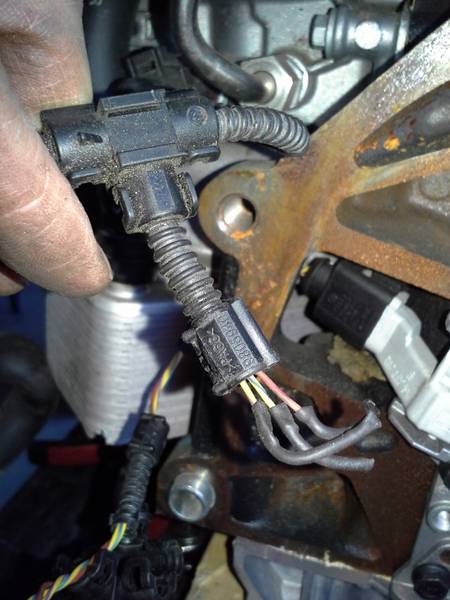

Harness connector for crank position sensor went missing. Had to splice a new one on.

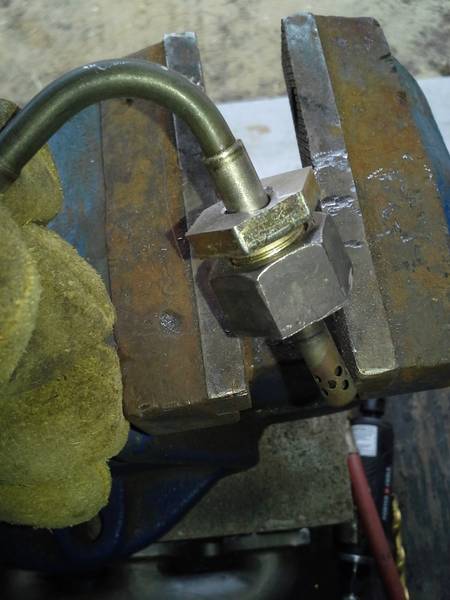

Making boss for factor EGT using coupling nut and bolt.

Boss installed. Oh yeah..that is the custom log manifold I built in the fall. The paint is good for around 1800F.
