Old February 19th, 2007, 12:38   #61
G60ING
Veteran Member

G60ING's Avatar
Default

try swapping the ds switch
G60ING is offline   Reply With Quote
Old February 20th, 2008, 17:26   #62
Paul7878
Veteran Member

Paul7878's Avatar

Join Date: Mar 2005
Location: Bismarck, ND
Default

I have a MK3 Jetta that I put K2 heated seats in. I have the switches with the pigtail attached, does that previous diagram work for A3's? I haven't had a chance to look through my bentley manual
Paul7878 is offline   Reply With Quote
Old September 26th, 2008, 06:54   #63
tamorgen
Veteran Member

Join Date: Oct 2004
Location: Columbia, MD
Default Difference between cloth and leather elements

Can someone tell me what the difference is between the parts?

Element, seat heater
cloth R/L 1J0 963 555 B
leather R/L 1J0 963 555 D
Element, backrest heater
cloth R/L 1J0 963 557 C
leather R/L 1J0 963 557 D
Element, side heater
R/L 1J0 963 556 B

I did a search of 1stVWparts and the cloth elements are like twice as expensive.

Does what element really have to do with the material or the shape of the seat? I have cloth seats now in my 01 Wolfsburg, but I want to get new leather upholstery installed. I want to add the heated elements and wiring first, or at least along with it. Do I need the cloth elements because of the shape of my seats, or the leather because I'm adding leather, and different elements act differntly with different materials

Also, is there a better source out there for elements that will work with factory wiring?
tamorgen is offline   Reply With Quote
Old September 26th, 2008, 08:42   #64
Getriebe Guy
Veteran Member

Getriebe Guy's Avatar

Join Date: Dec 2006
Location: Dearborn MI
TDI(s): 2001 Golf
Default

I did a search of 1stVWparts and the cloth elements are like twice as expensive.

Does what element really have to do with the material or the shape of the seat? I have cloth seats now in my 01 Wolfsburg, but I want to get new leather upholstery installed. I want to add the heated elements and wiring first, or at least along with it. Do I need the cloth elements because of the shape of my seats, or the leather because I'm adding leather, and different elements act differntly with different materials

Also, is there a better source out there for elements that will work with factory wiring?[/quote]

So it sounds like you are having an upholstery shop turn your VW orig equipment fabric seats into leather seats?

Buying aftermarket seat heating elements may be an option for you.

I installed heating elements from www.heatedseatkits.com and so have quite a few forum members with great reviews. Now that it is 50 degrees on Michigan mornings I'm back to using my heated seat every day and I love it. These elements would work fine for leather or cloth and you can trim them to shape but from my experience they don't need to be trimmed for Mk4 seats. I've got the aftermarket switch on my IP that has high/low/off positions. If you are really set on using the factory wiring I would think the factory wiring would drive the afermarket seat heating element with no problem as the factory switch is basically a potentiometer that varies the current to the heating element. If you are not set on using factory wiring then the heated seat kit comes with all the wiring you need, just put it under your leather seat covers and you are good to go.
Getriebe Guy is offline   Reply With Quote
Old September 26th, 2008, 10:02   #65
pete3221
Veteran Member

pete3221's Avatar

Join Date: Jun 2008
Location: Truro, Nova Scotia, Canada
TDI(s): '03 Bora TDi
Fuel Economy: high 40's
Default

you could ask the dealer, there was a heated seat recall done for the mk4's. the seat elemament wouldn't heat, or itd heat too much and litterly burn through the seat. also the switch was part of this recall.
pete3221 is offline   Reply With Quote
Old September 26th, 2008, 12:13   #66
tamorgen
Veteran Member

Join Date: Oct 2004
Location: Columbia, MD
Default

Quote:
Originally Posted by tamorgen
I did a search of 1stVWparts and the cloth elements are like twice as expensive.

Does what element really have to do with the material or the shape of the seat? I have cloth seats now in my 01 Wolfsburg, but I want to get new leather upholstery installed. I want to add the heated elements and wiring first, or at least along with it. Do I need the cloth elements because of the shape of my seats, or the leather because I'm adding leather, and different elements act differntly with different materials

Also, is there a better source out there for elements that will work with factory wiring?
Quote:
Originally Posted by Getriebe Guy
So it sounds like you are having an upholstery shop turn your VW orig equipment fabric seats into leather seats?
That's exactly what I am doing. I have already found a source for the OEM spec harness.

Quote:
Originally Posted by Getriebe Guy
Buying aftermarket seat heating elements may be an option for you.

I installed heating elements from www.heatedseatkits.com and so have quite a few forum members with great reviews. Now that it is 50 degrees on Michigan mornings I'm back to using my heated seat every day and I love it. These elements would work fine for leather or cloth and you can trim them to shape but from my experience they don't need to be trimmed for Mk4 seats. I've got the aftermarket switch on my IP that has high/low/off positions. If you are really set on using the factory wiring I would think the factory wiring would drive the afermarket seat heating element with no problem as the factory switch is basically a potentiometer that varies the current to the heating element. If you are not set on using factory wiring then the heated seat kit comes with all the wiring you need, just put it under your leather seat covers and you are good to go.
I had been looking at those, I'm just not sure if the factory wiring and switches will work. I may have to give them a call. The OEM pads look to be twice the price, unless I can find a junked MK4 to get them out of.
tamorgen is offline   Reply With Quote
Old September 29th, 2008, 10:17   #67
Getriebe Guy
Veteran Member

Getriebe Guy's Avatar

Join Date: Dec 2006
Location: Dearborn MI
TDI(s): 2001 Golf
Default

Can you sell or return the OEM wire harness and switches and use the wiring that comes with the aftermarket switches? For me saving a couple hundred bucks and getting a hotter seat (my aftermarket heat pads get hotter than my wife's OEM heated seats) was worth having an aftermarket heated seat switch on my dash instead of the VW OEM switch.
Getriebe Guy is offline   Reply With Quote
Old September 30th, 2008, 06:23   #68
LNXGUY
Veteran Member

LNXGUY's Avatar

Join Date: Jan 2004
Location: Barrie, Ont, Canada
Default

Quote:
Originally Posted by Aquell
Hi,

I am new to reparing/modding my golf and am looking for some help in diagnosing the problem with my heated seats.

I have a MK4 2005.5 Golf GTTDI 130, the driver's seat heats up fine, however the passenger seat does not heat up in any part of it. I have checked the fuse as I believe it is the same fuse as for the driver's seat and this is fine.

Would I be correct in thinking that it would be unusual for all the elements in the seat to fail at once, or is it a case of if one fails then it would break the entire circuit?

Could anyone help describe the steps I should go through to diagnose what the problems could be before biting the bullet and deciding whether to get VW to replace the heating elements or not.

Thanks in advance,

Aquell

Have you pulled back the lower seat cushion and checked where all the wires connect? They are known for cracking and detaching from each other.. Personally, I'd cut away all the silicon like sticky stuff VS uses and solder the wires together and tape. I had the same problem with my drivers side, no heat at all.
__________________
Bill
---------------------
LNXGUY is offline   Reply With Quote
Old September 30th, 2008, 12:51   #69
tamorgen
Veteran Member

Join Date: Oct 2004
Location: Columbia, MD
Default Some answers...

Okay, I've been doing some research over the past few days, and I wanted to share with everyone what I've found out.

I had a suggestion from MINION on Vortex to find a Jetta with the same seats as mine, get their VIN number, and then I would be able to verify which elements I need for my Jetta. So, knowing good advice when I saw it, I did a search for 01 Wolfsburg Edition Heated Seats VIN on Google, and I found several listings come up on AOL Autos, and they had a link to their CarFax report, which had the VIN.

I then sent an email to John at World Impex, gave him the VIN, and asked him to confirm the correct heating elements. He gave me the ones for the cloth seats, so now I know for sure that they fit the Wolfsburg Sport seats, which I wasn't sure of before.

Now, that gives me:

Element, seat heater
cloth R/L 1J0 963 555 B
Element, backrest heater
cloth R/L 1J0 963 557 C
Element, side heater
R/L 1J0 963 556 B

I had also emailed Potterman at parts4vws a few days ago, and he responded a short time ago. He informed me that the leather parts listed below, are no longer available. From that information, it seems to me that the heater elements listed for the cloth seats are pretty much universal.

leather R/L 1J0 963 555 D
leather R/L 1J0 963 557 D

If I can find a set of the cloth elements used, I'll be great. The best price I am seeing is through 1stVWparts, and that is about $545 total for two sets. Pretty expensive, but it will be OEM, and unlike the aftermarket units, I will have the bolsters elements as well. Even out the cost of the elements, as I'm seeing a set of aftermarket elements being around $320. The $225 difference is actually less than the cost of the two bolster elements.

Anybody know where I can get them used on the cheap?
tamorgen is offline   Reply With Quote
Old October 30th, 2008, 08:28   #70
tamorgen
Veteran Member

Join Date: Oct 2004
Location: Columbia, MD
Default

Okay, for anyone else needing this in the future, if you buy a harness that someone took out of their car, and you get frayed ends for the wires going to fuse 44 & fuse 5, I was able to figure out which repair wires you need.
Fuse 44, you need 000 979 227
Fuse 5, you need 000 979 225
These are simply yellow repair wires, about 18", with a connector on each end. You buy one, and you get two connections out of it.

I ended up just going to the dealer, but they tried to charge me $8 each, when the MSRP is listed as $4.84. I mentioned that, and they brought it back down to reasonable, which is still a tad pricey for a wire with two 5 cent connectors on the end.
Also, of interest, if you look at the Kufatec.de web site, they sell the harness for the heated seats. I've known this for some time, but their shipping makes it cost prohibative. I was able to get a better deal through the classifieds. However, they do supply some good information:

They show the four wires that you need to connect. One is labeled Masse (ground), and the other 3 are labeled Kl. 15, Kl. 58b, and Kl. 30. I'm sure these are labels for what pin socket they are to be plugged into, but I still need to find that on a wiring diagram. My home PC took a dump last night, and I'm waiting on the motherboard to be replaced, so I can't look at my Bentley CD. Does anybody have the Bentley that can show me what those match up to? Again, I'm trying not to splice. I know that two of those will go to the fuse box, and it shouldn't be too hard to match up once I get the car pulled apart, but what about the illumination pin? If Kufatec has a pined wire, then it must plug in somewhere, and we aren't expected to use scotch locks to splice it in.

Oh, and yes I did look at the diagram that Tongsli posted, but I'm not getting much out of it. I don't see anything that would seem to match up with Kl. 15, Kl. 58b, and Kl. 30.

* fuse 44
* fuse 5
* earth point
* any blue/grey wire in the dash illumination

* And 2 wires to the 6 pin connectors under the seats.
tamorgen is offline   Reply With Quote
Old November 21st, 2008, 15:25   #71
lkchris
Veteran Member

Join Date: Apr 2008
Location: Albuquerque, NM, USA
Default

Some useful urls:

http://vwgolfr32.co.uk/heated-seats.pdf

http://stores.ebay.co.uk/VW-Teesside...QQftidZ2QQtZkm
__________________
Kent Christensen
Albuquerque
'03 New Beetle TDI, '07 E320 Bluetec, '07 GL320CDI
lkchris is offline   Reply With Quote
Old December 26th, 2008, 22:48   #72
68redbug2000jetta
Newbie

Join Date: Dec 2008
Location: woodbridge VA
TDI(s): none
Default

hi guys ive been reading this topic for a good while (link was on vortex) and im still really stumped on everything (im use to working on aircooleds).now im going to be wiring my car for cloth heated seats.i guess i use the diagram shown?also i noticed the part #'s for the repair wires for the green/brown connectors on the dash switch...what would be the repair wire #'s for the connector under the seat?thanks
68redbug2000jetta is offline   Reply With Quote
Old December 29th, 2008, 03:54   #73
tamorgen
Veteran Member

Join Date: Oct 2004
Location: Columbia, MD
Default

Quote:
Originally Posted by 68redbug2000jetta
hi guys ive been reading this topic for a good while (link was on vortex) and im still really stumped on everything (im use to working on aircooleds).now im going to be wiring my car for cloth heated seats.i guess i use the diagram shown?also i noticed the part #'s for the repair wires for the green/brown connectors on the dash switch...what would be the repair wire #'s for the connector under the seat?thanks
Look back on the second page at the post from Oldpoopie

Quote:
Originally Posted by oldpoopie

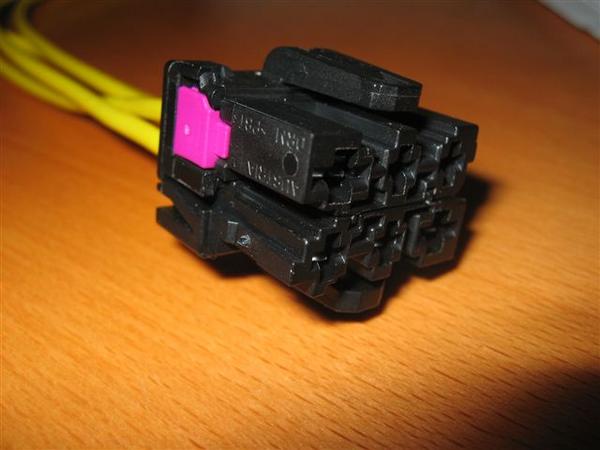

Ok, turns out I had a little crisis getting the connector housing (1J0-937-731) at the seat. IMPEX said it was out of stock in north america, as did my local dealer. I ordered it anyway from my dealer on thursday. Then, friday evening, I contacted GSXR600 of mb pierburg fame, and asked him to source them from germany for me. He said no problem. Well,long story short, the dealer calls me sat and says the parts are in! [img]/images/graemlins/eek.gif[/img] Turns out the old # was supplanted by 2 new parts.


They are: 1j0-937-713 (pink locking tab)
1j0-937-714 (blue locking tab)

The two parts slide and lock together forming the complete connector. You'll have to insert any repair wires before you lock the 2 connectors together. You'll need 2 of each. Here are some pics:




Also, consider going over to Vortex and looking at their parts post. If you look under Golf/Jetta MKIV, often users will be selling the whole wiring harness and switches out of a wrecked MKIV. Could save you a lot of time and effort. And if you want to go the new route, look at http://www.kufatec.de/shop/product_i...f02e7326696c87 You will pay a premium for shipping, as they only ship via FedEx from Europe, but if you can find anyone else that needs wiring harnesses, you can offset the shipping costs to more reasonable if you split the costs. Either that, or order many harnesses that you may need in the future, just so you don't have to keep paying for the shipping.

Last edited by tamorgen; December 29th, 2008 at 04:00.
tamorgen is offline   Reply With Quote
Old December 29th, 2008, 18:28   #74
68redbug2000jetta
Newbie

Join Date: Dec 2008
Location: woodbridge VA
TDI(s): none
Default

i read his stuff.i already have the connectors under the seat (well one half...other half is missing due to the dealer warehouse sending the wrong part so i have to try and get a exchange).it said for pins 1,3,5,6 i need part # 000 979 135 and pins 2,4 i need 000 979 227 but that looks to be for the dash connector but i dont see anything listed for the 6 pin connector under the seat.here is one i wired already...does it look right?the wires seem to be bigger than the dash wires.thanks



68redbug2000jetta is offline   Reply With Quote
Old January 22nd, 2009, 06:36   #75
tamorgen
Veteran Member

Join Date: Oct 2004
Location: Columbia, MD
Default Heated, powered, & memory

A buddy of mine just picked up some seats (from an 01 GLX, he thinks) that he is going to install in his 02 Jetta TDI. Right now, he has standard seats. I've done the heated seats install, so I'm going to be able to help with that, however, I haven't been able to find any write ups on the powered & memory. Anybody know anything about that? About all I know is there are two more plugs in the seats. I think I read somewhere that the powered portion should be easy to hook up, but the memory is more complicated.

Anyone?
tamorgen is offline   Reply With Quote
