Ok, just curious, is the cabin filter in the Passat located BEFORE the A/C evaporator and the heater core so that it will keep crap from collecting in the fins on both of them? Where exactly is it located?

Thanks in advance!
__________________
2014 Passat TDI SE 6 Speed Manual Transmission. Candy White/Cornsilk. Latest Revision 0020 Turbo.
My other car is a 1995 Volvo 850 5MT with 163K miles. I am as passionate as turbo diesel enthusiasts come, and love studying and working on turbo diesel cars and trucks!
TurboDieselPoint is online now   Reply With Quote
Old October 24th, 2012, 22:56   #2
vw_norm
Veteran Member

Join Date: Jul 2012
Location: Hawaii
Default

Yes. The cabin filter is located above the passenger footwell trim panel in the a/c unit. It is removed from the bottom of the assembly after removing an access panel on the a/c heater unit. The filter is placed between the fan/outside air intake and the heater and a/c cores. It also is equipped with activated charcoal as part of the filter element.
vw_norm is offline   Reply With Quote
Old October 25th, 2012, 05:17   #3
Ace Deprave
Veteran Member

Join Date: May 2012
Location: Louisiana
Default

I was recently wondering about this myself. Sounds like it's easy to get to...my 2008 Mazdaspeed3's cabin filter was a huge pain to get to...I had to remove part of the dash, the glove compartment, and an assortment of other things to access it. I think it took me 2 hours to do, and that's with watching a youtube instruction video. Thankfully, I won't have to change that one again!
__________________
Ace Deprave is offline   Reply With Quote
Old October 25th, 2012, 17:47   #4
TurboDieselPoint
Veteran Member

TurboDieselPoint's Avatar

Join Date: May 2012
Location: Texas
Default

So the path is:

A). Outside Air -> Filter -> Fan -> A/C Evap/Heater Core -> Vents?

or

B). Outside Air -> Fan -> Filter -> A/C Evap/Heater Core -> Vents?
__________________
2014 Passat TDI SE 6 Speed Manual Transmission. Candy White/Cornsilk. Latest Revision 0020 Turbo.
My other car is a 1995 Volvo 850 5MT with 163K miles. I am as passionate as turbo diesel enthusiasts come, and love studying and working on turbo diesel cars and trucks!
TurboDieselPoint is online now   Reply With Quote
Old October 25th, 2012, 20:12   #5
Lightflyer1
Veteran Member

Lightflyer1's Avatar

Join Date: Sep 2005
Location: Round Rock, Texas
Default

My experience has always been B in the past. Fans push air better than they pull it.
Lightflyer1 is offline   Reply With Quote
Old October 25th, 2012, 23:19   #6
vw_norm
Veteran Member

Join Date: Jul 2012
Location: Hawaii
Default

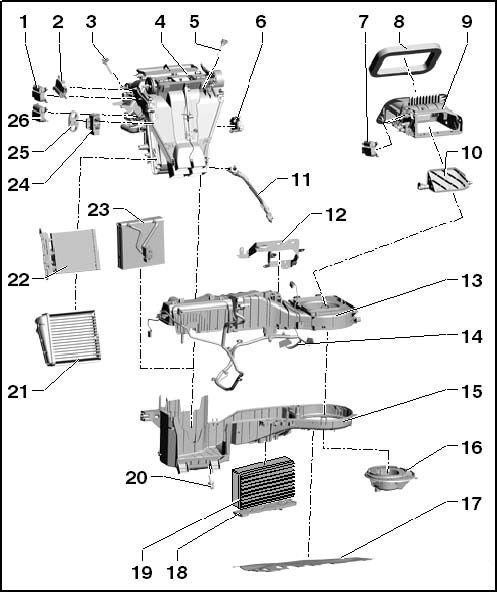

Here is an exploded view of the HVAC box. 23 is the A/C Evaporator, 22 is the Aux heater (TDI only), 21 is the heater core, 19 is the dust/pollen filter, 18 is the cover for the filter, 17 is footwell access cover, 16 is the fan/blower, 11 is the condensation water drain hose with valve, 9 is the outside air intake. Air flow is right to left (Option B above).

Last edited by vw_norm; November 2nd, 2012 at 23:47.
vw_norm is offline   Reply With Quote
Old October 26th, 2012, 08:28   #7
unixb0y
Veteran Member

Join Date: Oct 2003
Location: Manitoba, Canada
Default

Quote:
Originally Posted by TurboDieselPoint View Post
So the path is:

A). Outside Air -> Filter
This is how it's done on the MKIV. The filter is accessed from the engine compartment and fresh air is taken from below the windshield.

There are hood gaskets that prevent engine bay air from being used.
unixb0y is offline   Reply With Quote
Old October 26th, 2012, 09:16   #8
compu_85
Gadget Guy

compu_85's Avatar

Join Date: Sep 2003
Location: Springfield VA
Fuel Economy: 56.3/44/41
Default

Speaking of the Aux heater... did we confirm TDIs have them?

-J
__________________
Present:
2012 Passat SE TDI DSG. 60,000 miles. Factory Alarm, LED tails, Memory Seat, HIDs 38/48 MPG.
99.5 Jetta "GLX" TDI. 295,000 miles. Half way there!!! Power Memory Seats, HIDs 11mm pump, BV39 Turbo, RCIII 36/47 MPG.
1991 Mercedes 350SDL 230,000 miles, 70,000 on engine. 18/27 MPG.
Past:
1988 Audi 5000S Quattro, 1992 Jetta ECOdiesel, 1991 Jetta ECOdiesel.

Check out the official TDIClub Chat Room!
Quote:
Originally Posted by BRUSSELS BELGIAN View Post
Maybe I should pay MYSELF to do bad work on my car!
compu_85 is offline   Reply With Quote
Old October 26th, 2012, 13:39   #9
Nebelwerfer
Veteran Member

Join Date: Mar 2012
Location: Canuckistan
Default

We must have something. The temps here have been around -5C every morning and the engine is cold.

I crank up the heat to about 25C and I'm getting warmth in about a minute. It's not a lot, but its better than ice cold air.

Regards
__________________
Nebelwerfer is offline   Reply With Quote
Old October 31st, 2012, 11:54   #10
ng3
Veteran Member

ng3's Avatar

Join Date: Sep 2012
Location: Newmarket, Ontario
Default

Quote:
Originally Posted by vw_norm View Post
Here is an exploded view of the HVAC box. 23 is the A/C Evaporator, 22 is the Aux heater (TDI only)
According to the pic the Aux heater is #22
__________________
Good times: 96 Jetta Auto 98 Z24 5sp 04 Mazda3 Auto 09 Patriot 4x4 5spd
Current: 12 VW Passat Trend+ 2.0l DSG
ng3 is offline   Reply With Quote
