Old April 9th, 2012, 18:45   #1
bhutchins
Veteran Member

bhutchins's Avatar

Join Date: Feb 2011
Location: SW Portland OR
Fuel Economy: best 47
Default CR Injectors

remove the fuel lines and label, put into zip-lok bag to keep clean. they use a 17mm wrench. 17mm offset tubing wrench is best. Socket T40055 can also be helpful, and you will need it to re-torque the injector lines.

Pull up the center (circular part) of the return line to release, the ears stay down


release position below


remove the four 4mm allen cap screws and rotate the cover plate to reveal the tension plate bolts as show

remove the two 10mm nuts, and gently tap with the slide hammer, vw.snapon.com part numbers T10055 (hammer)
and T10055/1 (injector adapter) installed in photo above


injectors flow bench test @ dfispdx.com:
test benches use 1487AW2 fluid per ISO9001

03L 130 277C (CDCA) T5 transporter, Bosch# 0445116 035
Full load: Pulse Width 2.0 (mS), 1600 RPM, 42mL injection, 20 mL return
Low Idle: P/W 1.5, 800 RPM, 18mL, 8 mL return

03L 130 277A (CJAA) 140HP CR from a vendor, Bosch# 0445116 011
Full load: P/W 2.0, 1500 RPM, 58 mL, 18 mL return **Cant believe that**
Low Idle: P/W 1.5, 800 RPM, 18 mL, 8 mL return

Incase that was an extruded injector, so I pulled one of my own:
<flows to be updated here>

here are the CJAA injectors that we have (top) and the CDCA injector from the T5 transporter and Amerok (bottom), the same except the sweated on/shrink fit collar


here's a close up of the part numbers. on the top row, the VW part number. the "A" is the CJAA, the "C" is the CDCA. the bottom row first 10 digits is the bosch number

NOTICE: the flat area up top is not the same the
CJAA on left, tip of injector to bottom of flat is 5.956 inches, 0.350 inches wide
CDCA on right is, tip of injector to bottom of flat is 6.116 inches, 0.511 inches wide
the bottom of the flat is what holds down the injector. a shim will have to be made to use the "C" injector

the part numbers for the CJAA injector seals (and I'm asuming the CBEA also) are:
Top return line O-ring 059 130 119
Middle O-ring WHT 000 884
Bottom copper crush O-ring 059 130 519

more to be updated

referance:
Audi A4R4 450HP CBEA (CR) Build
CR140 Power: Round One
Upgrading NA CR 140 to EU CR 170
CR Big Turbo Kit? Tuning?
__________________
Sold : 234 WHP / 404 WTQ (550 N-M)

Last edited by bhutchins; April 13th, 2012 at 07:44.
bhutchins is offline   Reply With Quote
Old April 9th, 2012, 18:45   #2
bhutchins
Veteran Member

bhutchins's Avatar

Join Date: Feb 2011
Location: SW Portland OR
Fuel Economy: best 47
Default

Other very informative posts from referances above

Quote:
Originally Posted by Rub87
Here is the CAGx duration map.. curious to see the other possibilities, especially the 180hp ones, as one can see, around 820usec for 78mg at 1800bar.. at 4000rpm, 1msec is 24 degCA.. so injectors are definatly not small as seen on most other OEM's, but they're not huge either

Quote:
Originally Posted by Rub87
CBEA Duration:

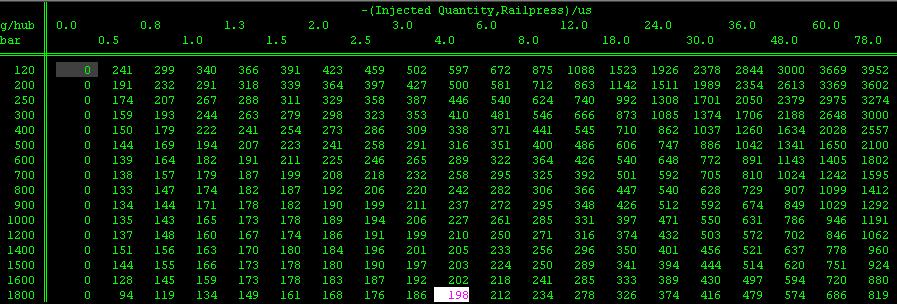

CAGx Duration:

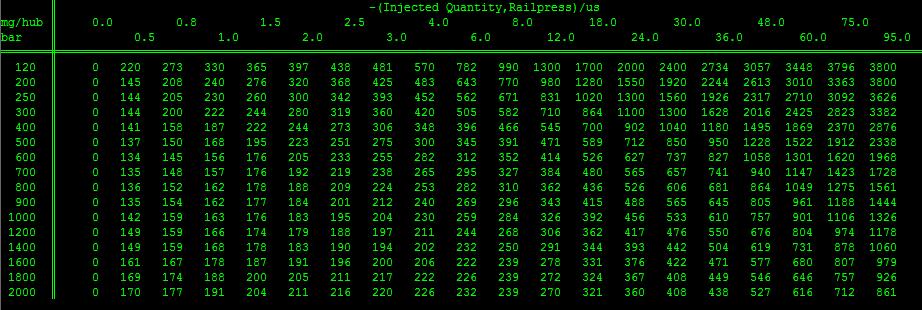

T5 BiTDI Duration:

Quote:
Originally Posted by chris@revotechnik View Post
Did some more digging this morning since it came up on another forum.

The CBBB engine code CR170 found in the passat and GTD in the UK and possibly other places in europe:

Uses the same replacement cylinder head which means the turbo bolts up and the injectors would fit the same. This disproves rumors stating otherwise.

to further back this up the CBBB we have in house uses the same fitting on the outlet of the turbo to the DPF (DPF is different itself). This means that the turbo outlet would bolt right up to a US CR140 factory DPF. I have a DPF delete we installed on our CBBB right next to me awaiting to go on my CJAA. To go one step further to ensure the manifold/turbo bolt to the cylinder head I have confirmed that the CR140 CJAA and the CR170 CBBB have the exact same exhaust manifold gasket part number, this means they have the same bolt pattern.

There may still be some misalignment of the EGR ports and other small things but many people swapping would be blocking those off anyway meaning that is less critical. ITs possible some chagnes to the EGR and how it routes to the intake may also be different as i have not checked into that but that can all easily be done by sourcing the factory parts or building them aftermarket.

Unrelated but according to engineer/owner of the CR170 in our A3 over in the UK shares the same airbox as the 2.0t and other petrol applications. I had mine apart earlier this week and ours is much different internally then what was in our 2.0T development car we had in the US. About 1/3 of the airfilter is reserved only for cold starts below 2 celcius and is otherwise closed off during normal "warm" operation.

I've got a buddy who is a BW dealer but does not deal with these applications checking to see pricing and availability of the CBBB turbo in North America.


The NMS Passat CR140 does have a different cylinder head part number, different turbo number than the US CJAA CR140 and according to the diagram has oval ports out of the manifold not round. The part number for the exhaust gasket is also different. So without digging further it would seem the CBBB turbo would not bolt on the NMS Passat CR140 and we already know they use a different type of injectors which means that the CR170s probably could not be controlled by the ecu in that application.

Quote:
Originally Posted by chris@revotechnik
Quote:
Originally Posted by bhutchins
according to http://www.ginner.at/images/Injektoren_2011.pdf the 03L130277 injectors I have are used for 103kW (140HP) CBAB as well as the 125kW (170HP) CBBB motors, including tiguani, passat and golf TDi's. the US motors are a CJA.

does the CBAB and CBBB have differnt turbo's?
There are euro CR140 applications that actually use the CR170 parts. Some have both the turbo and injectors others have just the injectors. The latter being more common.

CJAA injectors are 03l 130 277A
CBBB and CBAB injectors are 03l 130 277 (as listed above)

CJAA turbo is 03L 253 056

CBAB turbo is 03L 253 056A

CBBB turbo is 03L 253 056C


Note this is based on grabs from etka about 6 months ago so part numbers may have superseded.

None of this applies to the US specific B7 passat 2.0 TDI as the engine is different including the turbo and injectors from other versions including the US CJAA.
__________________
Sold : 234 WHP / 404 WTQ (550 N-M)

Last edited by bhutchins; April 12th, 2012 at 08:54.
bhutchins is offline   Reply With Quote
Old April 9th, 2012, 18:46   #3
bhutchins
Veteran Member

bhutchins's Avatar

Join Date: Feb 2011
Location: SW Portland OR
Fuel Economy: best 47
Default

P/W = injector pulse width in milliSeconds
ICP = Injector Control pressure in BAR
D mL = Duty (or injected) mL
R mL = Return mL

CDCA injector Test: http://pics.tdiclub.com/data/500/injector_test_1.pdf
CJAA Injector Test: http://pics.tdiclub.com/data/500/injector_test_2.pdf
Line 2: my CJAA injector, Line 3: CDCA Injector, Line 4: Retest of injector test 2 line 3 http://pics.tdiclub.com/data/500/injector_test_3.pdf
__________________
Sold : 234 WHP / 404 WTQ (550 N-M)

Last edited by bhutchins; April 12th, 2012 at 14:14.
bhutchins is offline   Reply With Quote
Old April 9th, 2012, 18:54   #4
Charrigan
Veteran Member

Join Date: Jan 2012
Location: Ann Arbor,Mi
TDI(s): 09 Jetta
Default

I cant wait for power results.... When are you installing them?

I have a family member who works for bosch and I can obtain these pretty easily and much less than retail pricing.
Charrigan is offline   Reply With Quote
Old April 9th, 2012, 19:39   #5
bhutchins
Veteran Member

bhutchins's Avatar

Join Date: Feb 2011
Location: SW Portland OR
Fuel Economy: best 47
Default

Matt (Whitbread) believes that they can support 240-250HP alone, but Mark Malone mentioned that there is boost creep here with the factory turbo, and turbo should be upsized to prevent overboost, as the stock turbo is vacuum controlled. This will also help EGT,as does my FMIC and upsized exhaust

A clutch and limited slip diff will also be required to put it to the pavement. It's known that Kyle at Diesel-performance.com is working on a upsized turbo, hopefully a GTB2260VK. At that point the injectors would really help.
__________________
Sold : 234 WHP / 404 WTQ (550 N-M)
bhutchins is offline   Reply With Quote
Old April 9th, 2012, 20:04   #6
JFettig

JFettig's Avatar

Join Date: Aug 2010
Location: Blaine, MN
Default

Are you sure you didn't misunderstand Matt? The stock turbo won't handle that. GTB2260VK will take care of that problem.
JFettig is offline   Reply With Quote
Old April 9th, 2012, 20:12   #7
bhutchins
Veteran Member

bhutchins's Avatar

Join Date: Feb 2011
Location: SW Portland OR
Fuel Economy: best 47
Default

re-reading... you are correct
Quote:
Originally Posted by Whitbread
....A 2260vk would be quite nasty on a CR. Smokeless 240-250 should be easy with enough fuel from the t5 injectors.....
__________________
Sold : 234 WHP / 404 WTQ (550 N-M)
bhutchins is offline   Reply With Quote
Old April 10th, 2012, 14:25   #8
Rub87
Veteran Member

Join Date: Dec 2006
Location: Belgium
Default

I guess with any of the stock injectors 250hp should be no problem at all.. with enough air egts should be no issue with the slightly longer duration
__________________
'99 Black Ibiza GT90: 2260v, ARL bottomend, rosten rods 81mm slugs, 17:1 CR, 35/38mm exh/in valves, 02M, 305mm discs with Brembo calipers, OZ Superturismo 16"x7.5J, .............
Dyno'd area, Old VNT20 setup dyno'd 192whp
Rub87 is offline   Reply With Quote
Old April 10th, 2012, 15:25   #9
bhutchins
Veteran Member

bhutchins's Avatar

Join Date: Feb 2011
Location: SW Portland OR
Fuel Economy: best 47
Default

I couldnt believe that 170 HP CDCA "C" injectors flowed less than the 140 HP CJAA "A" injectors, so I took # 4 out of my car, and I am having one of each retested today.
__________________
Sold : 234 WHP / 404 WTQ (550 N-M)
bhutchins is offline   Reply With Quote
Old April 10th, 2012, 22:33   #10
Rub87
Veteran Member

Join Date: Dec 2006
Location: Belgium
Default

can you matbe ask the testing pressure and the number of shotst at which the injectors are tested?
__________________
'99 Black Ibiza GT90: 2260v, ARL bottomend, rosten rods 81mm slugs, 17:1 CR, 35/38mm exh/in valves, 02M, 305mm discs with Brembo calipers, OZ Superturismo 16"x7.5J, .............
Dyno'd area, Old VNT20 setup dyno'd 192whp
Rub87 is offline   Reply With Quote
Old April 12th, 2012, 14:19   #11
bhutchins
Veteran Member

bhutchins's Avatar

Join Date: Feb 2011
Location: SW Portland OR
Fuel Economy: best 47
Default

Put links to the injector test data in post 3. the numbers look very close to the tables Ruben shared (reposted in post 2 above).

added some dimensions toward bottom of post 1 from flats to nozzle tip

by using linear regression on Rubens tables
at 1500 uS and 800 Bar, the 277 A (CBEA / CJAA injectors) would have an injection quantity of 78.5 ml
at the same pulse width and pressure the 277 C (CDCA injectors) would inject a quantity of 90.73 ml
that is a 15.5% increase in fuel delivery
__________________
Sold : 234 WHP / 404 WTQ (550 N-M)

Last edited by bhutchins; April 13th, 2012 at 07:26.
bhutchins is offline   Reply With Quote
Old April 12th, 2012, 14:32   #12
dieselpower04
Veteran Member

dieselpower04's Avatar

Join Date: Jun 2007
Location: Outside Tampa, FL
Default

Wow I guess the CR is no joke!
__________________
Gone but never forgotten...
My TDI Build Thread

dieselpower04 is offline   Reply With Quote
Old April 13th, 2012, 08:20   #13
ryanp

ryanp's Avatar
Default

I suppose these injectors need to be tested at operating pressures to give an accurate comparison? @ 1800bar 240ps 3.0 v6 injectors flow 12% more than 140 injectors. I'm still awaiting actual figures!

Ryan
__________________

02M 6 Speed Conversions + Euro Parts - 6 Speed Setups for A4 + A5 platform,PD150 Intakes, TIP kits, Turbo's, Injectors as well as anything else!! PM Me! - Click HERE
ryanp is offline   Reply With Quote
Old April 13th, 2012, 08:46   #14
bhutchins
Veteran Member

bhutchins's Avatar

Join Date: Feb 2011
Location: SW Portland OR
Fuel Economy: best 47
Default

in post 3 I give links to actual flow bench data at various pressures
__________________
Sold : 234 WHP / 404 WTQ (550 N-M)
bhutchins is offline   Reply With Quote
Old April 13th, 2012, 09:24   #15
DPM
Veteran Member

Join Date: Mar 2001
Location: Newtownards, N. Ireland
Fuel Economy: 38.5- 47 Forester, Citroen 55- 63
Default

Looks more like two different pulse speeds/widths, but at a fixed pressure.
DPM is offline   Reply With Quote
