Old January 24th, 2012, 22:43   #1
SirLoinOfBeef
Newbie

Join Date: Jan 2012
Location: Fontana Ca
Default 1961 Willys jeep 1.9 Y1 swap

i am planning a VW 1.9 diesel swap in my Willys Jeep. i currently have a SM465 trans and I want to use it with this engine swap. my mind is set no turning back. So far i have the engine Located at Quality German Auto parts in Ontario Ca. I have the VW to Toyota adapter From ACME lined up that problem is solved as well. here is where i have problems. OTT says their adapter it about $300 but, it is out of stock. and they are Most likely a minimum of 6 months to a year away from tooling up and making their adapter for the SM465 to 20r Toyota bell that is if they even make it again. i am really in a Goatf*ck here.
I need to find the cad drawing dimensions for the SM465 transmission like i have here for the W58 Toyota transmission. I cannot seem to find anything on this GM transmission. Need all the Help I can get. a local shop says for at or just over $1000, they can spec it out from samples and make one for me. i would love to buy the OTT adapter. sadly i don't have 6 months to years time to wait.
http://www.ottindustries.com/22re-sm.htm

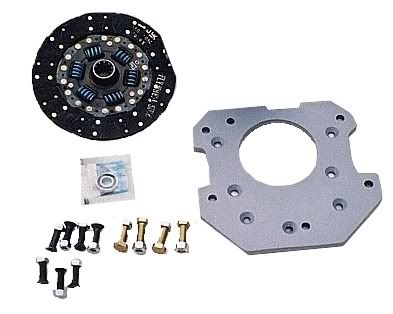

i need these parts.

this is the W58 cad drawing


i need the cad drawing for a SM465 trans
Thanks for any help!!!
SirLoinOfBeef is offline   Reply With Quote
Old January 25th, 2012, 05:45   #2
onlyn8v
Veteran Member

Join Date: Nov 2005
Location: Long Island NY
Default

Isnt the SM465 bolt pattern the same as a t-5? If so you can grab a drawign of that online- I would suggest checking Pirate4x4.com
__________________
Dave
90 Turbo Corrado (Red) 034EFI, 3" exhaust, body kit, Built ABA + lots more
98 Jetta TDI 5 speed 249k+ (Red) RC3+, Ventectomy, tint, leather interior, Porsche wheels, DRL-less, ported / polished head with matched intake manifold,3" catless exhaust, 2.5" downpipe, PP520, hybrid turbo, FMIC, smoked e-codes, badgeless grille, H&R cup kit
04 Jeep Wrangler 4.0 33K Blue 4" Fabtech lift, MT wheels, 33",Borla, sliders, snorkle, 15mpg
...Other crap Im parting
onlyn8v is offline   Reply With Quote
Old January 25th, 2012, 06:44   #3
LukeWilson
Veteran Member

Join Date: Jan 2010
Location: Ottawa, ON
Default

Why wouldn't you just use the W56 or R151? What's the need for the SM465?
LukeWilson is offline   Reply With Quote
Old January 25th, 2012, 20:31   #4
SirLoinOfBeef
Newbie

Join Date: Jan 2012
Location: Fontana Ca
Default

Quote:
Originally Posted by LukeWilson View Post
Why wouldn't you just use the W56 or R151? What's the need for the SM465?
the w58 is so much longer and i would have to really pitch ther rear diff upward to align, plus i have Offset differentials and would have to reinvest in new front and rear ends and wheels 5 on 5.5 BP too it would be a real pain in the ass. this makes it more simple plus the 6.55 granny 1 st. gear and Dana 18 with 2.43 low range too. its simple and easy for the Win.
SirLoinOfBeef is offline   Reply With Quote
Old January 25th, 2012, 20:34   #5
SirLoinOfBeef
Newbie

Join Date: Jan 2012
Location: Fontana Ca
Default

Quote:
Originally Posted by onlyn8v View Post
Isnt the SM465 bolt pattern the same as a t-5? If so you can grab a drawign of that online- I would suggest checking Pirate4x4.com
i don't know. i will have to look into this one. i cannot find much info on cad drawings for the SM465. there is a place in Canada, OTT industries that made the adapter that i need. i am currently begging them to make another one. or sell me a copy of the cad files anything really to make it work.
SirLoinOfBeef is offline   Reply With Quote
Old February 8th, 2012, 18:54   #6
01greenjetta
Veteran Member

01greenjetta's Avatar

Join Date: Nov 2010
Location: Georgetown, CA
Fuel Economy: 45 mpg freeway, 32 in the canyons
Default

I realize you may be wanting to keep it looking original, but these things are much more capable and stable at speed if you move the rear axle toward the aft as this guy on pirate4x4.com did.
I live close to the Rubicon so I see a lot of Willys' set up this way.

Then you could probably use the 'yota trans and save a lot of time and money.
__________________
VAG-COM VCDS KII-USB
01greenjetta is offline   Reply With Quote
Old April 25th, 2012, 03:58   #7
N2TOH
Veteran Member

Join Date: Aug 2003
Location: Chester County, PA
Fuel Economy: 0/0/0
Default TDI into Jeep Swappers links

for SM465 info try Novak adapter, please let them know what your doing...

http://www.novak-adapt.com/catalog/sm465_package.htm

also look here,

http://forums.tdiclub.com/showthread.php?t=350699
__________________
My not so secret wish is for a TDI swap that will fool a Jeep service tech.
N2TOH is offline   Reply With Quote
Old April 26th, 2012, 01:06   #8
e*clipse
Veteran Member

e*clipse's Avatar

Join Date: May 2007
Location: Chico, CA
Default

First, I'd like to say this is one cool project. I'll bet that Willys is really light - nice off road w/ a diesel!

SirLoinOfBeef:
Quote:
the w58 is so much longer and i would have to really pitch ther rear diff upward to align, plus i have Offset differentials and would have to reinvest in new front and rear ends and wheels 5 on 5.5 BP too it would be a real pain in the ass. this makes it more simple plus the 6.55 granny 1 st. gear and Dana 18 with 2.43 low range too. its simple and easy for the Win.
How much longer?
It's a really bad idea to angle the differential so it points up to the tranny. Here's the reason: U-joints are not CV joints. In other words, the output of a U-joint at an angle does NOT spin at a constant RPM. This is why U-joints are paired - the second one offsets the non-constant rpm of the first one.
So, you can have a centered transmission output go at an angle (both verticle and horizontal) to an offset differential. Just make sure the input shaft for the differential is parallel to the output shaft of the tranny.
It's really no big deal to get a different driveline, just make sure the u joints can handle the angles.
__________________

1996 1Z, MK4 MAF, MK4 11mm IP, .216's, long runner intake manifold, FMIC, GTA2056V, CCV filter, RC3+, 2.5" exhaust, Toyota Pickup Build thread
e*clipse is offline   Reply With Quote
Old April 26th, 2012, 06:18   #9
N2TOH
Veteran Member

Join Date: Aug 2003
Location: Chester County, PA
Fuel Economy: 0/0/0
Default

The problem is an early CJ5 is an 80 inch wheelbase truck, there is so little room between the engine and rear drive yoke that adding even a single inch is something to be concerned about.

Quote:
Originally Posted by LukeWilson View Post
Why wouldn't you just use the W56 or R151? What's the need for the SM465?
__________________
My not so secret wish is for a TDI swap that will fool a Jeep service tech.
N2TOH is offline   Reply With Quote
Old May 18th, 2013, 09:47   #10
nwca
Member

Join Date: Sep 2012
Location: North West California
Default

I know this thread is a little older.but anyway we can get a update? I have a 1.6 in front of a ax15 and I'm putting a 1.9 MTDI up there..have another CJ5 with a 2.5 and plan on putting the 1.6 with a SM465 in its place soon. I built all the original adapters myself (Using the Jeep Flywheel even) so I'm not afraid of some fabricating..but if there is a source for getting the adapter plates..
nwca is offline   Reply With Quote
