Old January 2nd, 2012, 22:26   #1
Got Bearings?
Veteran Member

Got Bearings?'s Avatar

Join Date: May 2007
Location: SoCal
Fuel Economy: 36 / 50
Default Head porting pictures

Recently, I've seen people post pics of head, showing the porting done but I can't find the threads anymore. If you have any pics to post or links to pics, would you mind sharing them on this thread?

I would appreciate it and I'm sure others would too.

Thanks!
__________________
The New Commuter Car: 2009 Cadillac CTS-V 556 HP, 6.2L Supercharged V-8, 6 speed manual
The Old Commuter Car: 01 Golf GLS TDI WRECKED AND GONE!
The Slow Car: 95 Impala SS 383, 6 speed, 391HP , 440TQ
Looking for Battery Cables, better & cheaper than OEM? Click here for info
Got Bearings? is offline   Reply With Quote
Old January 3rd, 2012, 15:36   #2
Got Bearings?
Veteran Member

Got Bearings?'s Avatar

Join Date: May 2007
Location: SoCal
Fuel Economy: 36 / 50
Default

Come on.. don't be so shy!!! I know people have them. Post'em up!
__________________
The New Commuter Car: 2009 Cadillac CTS-V 556 HP, 6.2L Supercharged V-8, 6 speed manual
The Old Commuter Car: 01 Golf GLS TDI WRECKED AND GONE!
The Slow Car: 95 Impala SS 383, 6 speed, 391HP , 440TQ
Looking for Battery Cables, better & cheaper than OEM? Click here for info
Got Bearings? is offline   Reply With Quote
Old January 3rd, 2012, 17:04   #3
Nash_TDI
Veteran Member -TDIClub Enthusiast

Nash_TDI's Avatar

Join Date: Sep 2002
Location: Louisville, ky
Fuel Economy: 63.25mpg max
Default


IMG00164-20101129-1215 by Nash_TDI, on Flickr

I wish I had taken more, but I didn't.
__________________
2.0 ALH, GTB2260, 12mm, etc, etc.....
www.nashimporters.com http://louisvillevw.org/
TDI Repair Available, TBs, Clutches, Manual Swaps, BSM, etc..
PD Cam tools, BSM tool, VE & PD TB tool rental available.
Nash_TDI is offline   Reply With Quote
Old January 3rd, 2012, 18:49   #4
GTiTDi
TDIClub Enthusiast
Macht Schnell! Vendor
w/Business number

GTiTDi's Avatar

Join Date: Oct 2010
Location: 3 Spruce st Wareham, gateway to Cape Cod Massachusetts
Default

Here ya go..a 1Z head updated to 7mm valves/guides , 3 angle valve grind and some mild porting http://forums.tdiclub.com/showthread...=304978&page=9
__________________
91 GTI CJAA (was 1Z powered) (2012 TDIfest Radical class winner) CTN+(eurotuning 6th) fully deleted, 3" SS downpipe and side pipe running standalone using the Tischspiegel
MK2 GTI build
schnellsnailFB
GTiTDi is offline   Reply With Quote
Old January 4th, 2012, 05:57   #5
arne487
Veteran Member

arne487's Avatar

Join Date: Jan 2008
Location: Fort Collins, CO
Fuel Economy: 62.4 max, 53 avg
Default

This is an interesting one:
http://forums.tdiclub.com/showthread.php?t=266569
__________________
His: '03 Golf - RyanP GTB2260VK, Other Fun Stuff
2004 Passat Wagon 1.8T 4-Motion 5-Speed
Hers: '10 TDI Cup Jetta - Just a skid plate and a Frostheater. She won't let me touch it.
arne487 is offline   Reply With Quote
Old January 4th, 2012, 10:49   #6
Got Bearings?
Veteran Member

Got Bearings?'s Avatar

Join Date: May 2007
Location: SoCal
Fuel Economy: 36 / 50
Default

Thanks for the pics and links. If anyone has pics they don't want to share publicly, you can PM me and will not share them with anyone.

Thanks!
__________________
The New Commuter Car: 2009 Cadillac CTS-V 556 HP, 6.2L Supercharged V-8, 6 speed manual
The Old Commuter Car: 01 Golf GLS TDI WRECKED AND GONE!
The Slow Car: 95 Impala SS 383, 6 speed, 391HP , 440TQ
Looking for Battery Cables, better & cheaper than OEM? Click here for info
Got Bearings? is offline   Reply With Quote
Old January 4th, 2012, 18:55   #7
Sootman
Veteran Member

Sootman's Avatar

Join Date: Jan 2003
Location: Maine Coast
Fuel Economy: 30 +/- MPG
Default

Here's a few from my ALH
[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]
__________________
Sootman
A friend will help you move. A good friend will help you move a body.
Audi Quatro A3 gasser. Hey is it my fault I can't buy a diesel Quatro??
http://www.idparts.com/catalog/index.php
Dyno: http://forums.tdiclub.com/showthread.php?t=352348
Sootman is offline   Reply With Quote
Old January 4th, 2012, 19:05   #8
JFettig

JFettig's Avatar

Join Date: Aug 2010
Location: Blaine, MN
Default

How much material is actually removed from the ports? Every intake port I have seen appears to just be smoothed out.
__________________
Minnesota Malone Tuning dealer
1998 B5 Passat TDI Compound Turbos
2009 JSW Stage 3 196whp so far
DIY injector calibration http://forums.tdiclub.com/showthread.php?t=383324
JFettig is online now   Reply With Quote
Old January 5th, 2012, 19:18   #9
Fix_Until_Broke
Veteran Member

Fix_Until_Broke's Avatar

Join Date: Aug 2004
Location: Menomonee Falls, Wisconsin, USA
Fuel Economy: 75.0/53.0/38.4
Default

All the above ports look like they have had very little material removed from them - just a bit of polishing and smoothing out any rough edges.

I think the intake ports are pretty good "as is". Not that there can't be improvements in flow rate by porting, but at the cost of intake charge swirl. In Alex22's thread where he had both flow and swirl measurement there was significant loss in swirl at low to mid valve lifts where the valve spends most of it's time.

The exhaust ports have quite a bit of room for improvement in my opinion.

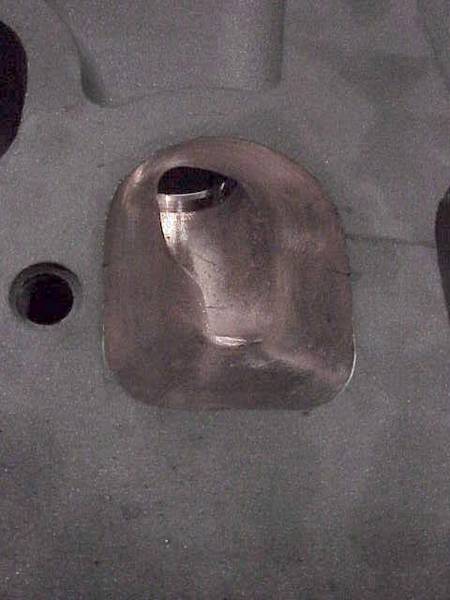

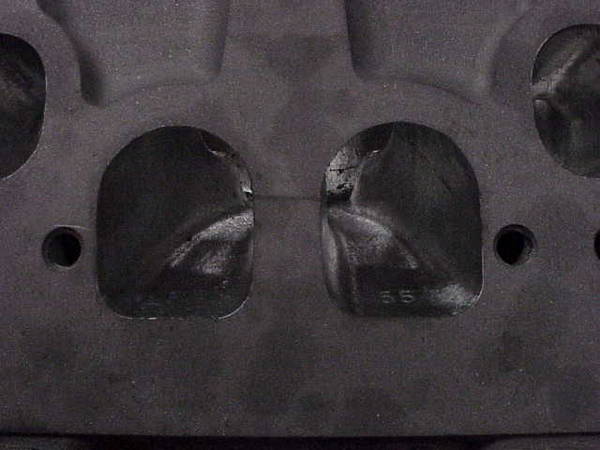

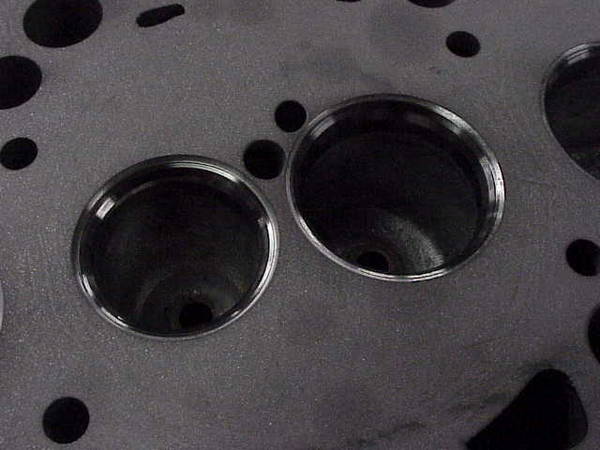

Here's what I did on my head

Intake

Exhaust
__________________
03 Jetta, Cat 2u, DG Steel SP w/MOGolf Mod, 3"DP, 4"EXH, EaBP100 Bypass, Euroswitch, ECodes, Driving Light, PD Lift Pump, R520's, RC5,RC6, TDTuning, Malone, ScanGaugeII, 3" TIP, 2" TOP, HE221W Compounded with GTC1444VZ, 6 Bar MAP, VR6 MAF, Vented Fender Liner, Battery Cover Mod, 11mm, Monster Mats, 215/55/17 (27.9/53.0/75) Monthly MPG Links, Euro Trunk Latch, IDParts RSB, SDI or ALH Intake, ARL Ceramic Pistons, Rosten Rods, DRW, Wavetrac, SBC, FSD's, Beef Springs, Rebuilt Head, Recaro's, Colt II, DG Sigma 6, RMT200
Fix_Until_Broke is offline   Reply With Quote
Old January 6th, 2012, 08:47   #10
Satiro
Veteran Member

Satiro's Avatar

Join Date: Aug 2006
Location: Spain
Default

Quote:
Originally Posted by Fix_Until_Broke View Post
The exhaust ports have quite a bit of room for improvement in my opinion.

Here's what I did on my head

Intake

Exhaust
Thanks for those pictures! are very enlightening for me. I will have to make that work soon.
__________________
Rub87remap ARLpistons PD100rods Sputters ARLbolts Rosten'sMainStuds VitonSeals PortedHead Rosten'sValveSpring ASVpump 11mmHead DE143 11mmSprings GT18v Race520 BigFMIC fuelCooler LiftPump CRfuelFilter PD130Manifold Dbilas260cam BlackLifters OilCooler 312mm+porscheCalipers Sigma5SSK BilsteinEibach MK4RearBearings/Calipers EibachProKitSwayBars
Satiro is offline   Reply With Quote
Old January 6th, 2012, 14:34   #11
apomiett
Veteran Member

Join Date: Apr 2007
Location: Finland
TDI(s): A2 mTDI
Default

Hello.
Do you want pictures of pd or ve head? I have few $hitty pics of a ported pd head and can take pictures of a head disection. I`m porting a ve style head at the moment so i can take pictures of that also.
Quote:
How much material is actually removed from the ports? Every intake port I have seen appears to just be smoothed out.
I totally agree. Most pictures that i have seen in this forum only show minor pocket porting which has very little effect and to my opinion are totally worthless for the cost and effort.
apomiett is offline   Reply With Quote
Old January 6th, 2012, 14:50   #12
JFettig

JFettig's Avatar

Join Date: Aug 2010
Location: Blaine, MN
Default

Please post PD and VE porting.
__________________
Minnesota Malone Tuning dealer
1998 B5 Passat TDI Compound Turbos
2009 JSW Stage 3 196whp so far
DIY injector calibration http://forums.tdiclub.com/showthread.php?t=383324
JFettig is online now   Reply With Quote
Old January 6th, 2012, 15:01   #13
Got Bearings?
Veteran Member

Got Bearings?'s Avatar

Join Date: May 2007
Location: SoCal
Fuel Economy: 36 / 50
Default

Yes, post them both!
__________________
The New Commuter Car: 2009 Cadillac CTS-V 556 HP, 6.2L Supercharged V-8, 6 speed manual
The Old Commuter Car: 01 Golf GLS TDI WRECKED AND GONE!
The Slow Car: 95 Impala SS 383, 6 speed, 391HP , 440TQ
Looking for Battery Cables, better & cheaper than OEM? Click here for info
Got Bearings? is offline   Reply With Quote
Old January 6th, 2012, 19:50   #14
joseluis.17g
Veteran Member

Join Date: Jul 2011
Location: Monterrey, Mexico
Default

Quote:
Originally Posted by JFettig View Post
Please post PD and VE porting.
please do so..
joseluis.17g is offline   Reply With Quote
Old January 10th, 2012, 16:41   #15
PRA4WX
Veteran Member

Join Date: Jul 2011
Location: Snorrin Desert
TDI(s): 1Zzzzzzzz
Default


Last edited by PRA4WX; January 10th, 2012 at 16:43.
PRA4WX is offline   Reply With Quote
