Default Lift Pumps: What are they doing, anyway?

Hello,

Some of you may have read my "Dyno Letdown" topic in which I questioned the operation of my Walbro FRB-11. My troubleshooting compelled me to install a fuel pressure gauge so I could see what the pump was actually doing. It is specified to flow 43-gph at 6-8 psi. After installing the fuel pressure gauge, I learned the pump was pressurizing the fuel line to 6 psi when I first turn on the key (N109 cycle). Once the car is started, pressure hangs out around 3 psi at idle. It's about 2 psi at 50 mph cruise and 1 psi at 80 mph. It drops to ZERO under anything more than casual acceleration. I thought it was safe to say the pump was not delivering enough fuel to keep the feed pressurized under all conditions.

Tonight, I installed a brand new FRB-5. It's specified to flow 45-gph at 8-11 psi. They seem to be a popular upgrade (add-on?) for the Duramax folks. I got everything installed and hooked up. When the key is turned, the pressure jumps to about 5-psi and slowly climbs to 7-psi. Pressure drops to 3-psi at idle. In short, the pump behaves quite similarly to the FRB-11. The good news is my FRB-11 is fine. The bad news is either these pumps don't do what they're supposed to or I don't understand the external influences on these pumps (likely the latter).

I've been told, "get a PD lift pump," "get a Carter," "your pump is bad..." I suspect the majority of us read the specs of a given pump and accept that is what the pump is doing. But I'd like to request something a bit more scientific:

I'd like the input of those who actually have a fuel pressure gauge installed. Please post what lift pump you use, where your pressure is sampled, and what your pressure is just prior to start-up, at idle, and under acceleration. Perhaps a format like my example here:

Pump: FRB-5
Pressure sampled between the fuel filter and the IP
Pre-start: 6-psi
Idle: 3-psi
Acceleration: 0-psi (unknown if this is "zero" or vacuum since there is a mechanical stop... but IP timing is fine)

I don't mind a few theories of how pumps work and why my pressure reads what it reads. But please don't jump to the conclusion that I have the "wrong pump" or another "bad one" off the shelf unless you have a lift pump which maintains its specified pressure under all conditions and you have a fuel pressure gauge installed to prove it (meaning you understand how lift pumps behave in our application with fuel returning to the tank).

While I understand my topic is diagnostic in nature, I opted to post it in the Power Enhancements section due to the fact lift pumps are a popular power enhancement and my goal is to learn what the lift pump is actually doing (is it really providing "pressure" to the IP, or just ensuring there's not vacuum?). Others stand to learn something as well since I'm sure the vast majority of drivers do not have a fuel pressure gauge installed. Of course, moderators are welcome to move this at their discretion.

Thanks,

Scott
Stealth TDI is offline   Reply With Quote
Old November 12th, 2009, 20:25   #2
Whitbread

Whitbread's Avatar

Join Date: Jan 2007
Location: Johannesburg, MI
TDI(s): Several
Default

Woops, looks like i'm a minute too late. I just posted in your other thread haha. But anyway,

Pump: Aeromotive A1000 and Mallory 4309 bypass regulator
Pressure sampled between the fuel filter and the IP
Pre-start: 24psi
Idle: 24psi
Acceleration: WOT@5.5K 12-13psi.
__________________
02 Jetta TDI
Whitbread Performance Innovations
-Full TDI maintenance, performance and custom fabrication services. 248-755-8118, 10AM-5PM EST M-F. Please email or call only for business inquiries. PM's are not for business communication.
Whitbread is offline   Reply With Quote
Old November 12th, 2009, 20:39   #3
Fix_Until_Broke
Veteran Member

Fix_Until_Broke's Avatar

Join Date: Aug 2004
Location: Menomonee Falls, Wisconsin, USA
Fuel Economy: 75.0/53.0/38.4
Default

I've got a PD in-tank lift pump, cat 2u filter and 11mm IP.

I can hook up my pressure sensors and take data similar to my EMP/IMP measurements while taking a VagLog of Channel 1 (RPM, IQ, Collar Position and Coolant Temp).

Then we can compare fuel pressue and delivery vs RPM or whatever else you want me to measure.

Actually on the quick and dirty - I've got a 30"Hg-15psi analog gauge that I could hook up and just visually see what happens when driving around. What's another gauge on the dash - I've already got 4 extra ones

If someone can point me to where I can measure the case pressure I can record that as well (runs at ~80 psi I think right?)

To dig into the theory a little bit (until I can take some data).

The pumps you're using flow 45 gallons/hour or ~0.75 gallons/minute. The vane pump in the injection pump is a fixed positive displacement pump so for an easy test, we can remove the return line from the IP and run it into a bucket and measure the volume that comes out at idle (~903 RPM) for a 20/30/60 second time period and calculate the flow rate.

I did this once when I first bought my car (don't even remember why) and I seem to recall that I got ~1/2 gallon/minute at idle but can't be sure of that.

Anyway, being that it's a fixed positive displacement pump, we should get double the flow at 1806 RPM, triple the flow at 2709 RPM, etc. With this information we should be able to then at least get in the ballpark selecting a lift pump on specifications (I suspect that 45 gallons/hour is not enough).

The other thing is that the timing piston can consume/expel siginificant ammounts of fuel in very short times if there's very quick timing changes. This could cause momentary dips/rises in fuel pressure as the piston extends/retracts to adjust the timing. Not too big of a deal if there's sufficient supply pressure there to feed it, but something to think about (secondary)
__________________
03 Jetta, Cat 2u, DG Steel SP w/MOGolf Mod, 3"DP, 4"EXH, EaBP100 Bypass, Euroswitch, ECodes, Driving Light, PD Lift Pump, R520's, RC5,RC6, TDTuning, Malone, ScanGaugeII, 3" TIP, 2" TOP, HE221W Compounded with GTC1444VZ, 6 Bar MAP, VR6 MAF, Vented Fender Liner, Battery Cover Mod, 11mm, Monster Mats, 215/55/17 (27.9/53.0/75) Monthly MPG Links, Euro Trunk Latch, IDParts RSB, SDI or ALH Intake, ARL Ceramic Pistons, Rosten Rods, DRW, Wavetrac, SBC, FSD's, Beef Springs, Rebuilt Head, Recaro's, Colt II, DG Sigma 6, RMT200
Fix_Until_Broke is offline   Reply With Quote
Old November 12th, 2009, 21:33   #4
Fix_Until_Broke
Veteran Member

Fix_Until_Broke's Avatar

Join Date: Aug 2004
Location: Menomonee Falls, Wisconsin, USA
Fuel Economy: 75.0/53.0/38.4
Default

Had a moment of motivation and went and spliced in my -30"Hg to +30 PSI gauge in between my fuel filter and injection pump and went for a trip around my "off road" course.

Key on engine off: 7 psi
Key on engine running at idle: 7 psi
Neutral rev to 5000 RPM: 6 psi
Normal driving around 25-40 MPH at all kinds of throttle positions and RPM's: 5-7 PSI
Full throttle 5500 RPM 3rd gear pull: 3-4 psi minimum at high RPM: ~5 psi typical
3000 RPM overrun (foot off of throttle) turn key off - goes from 7 psi to ~10inHg

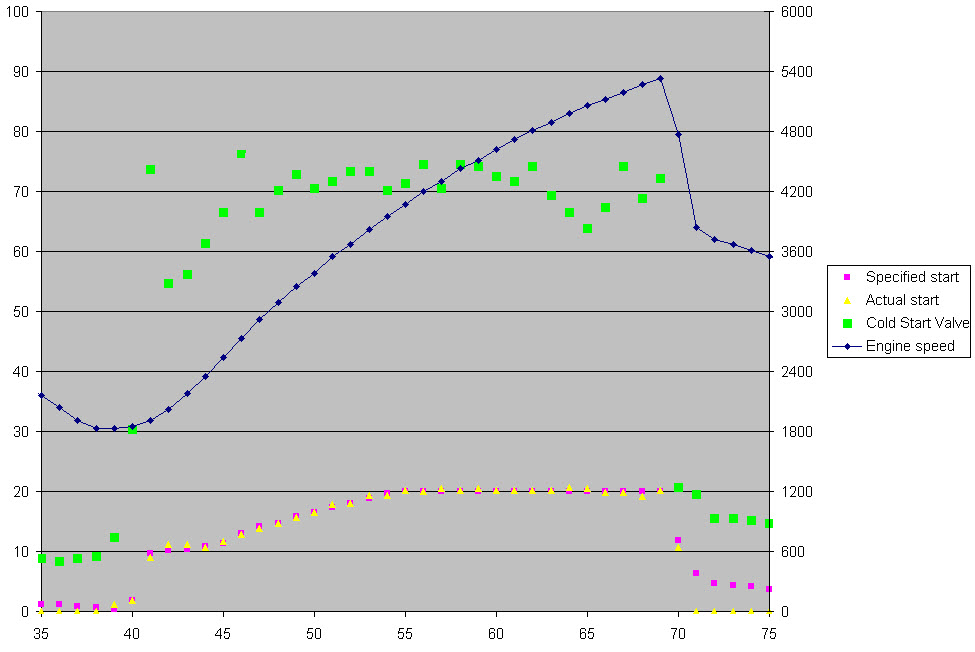

I made a Channel 4 Timing log last week (RC5 ALH) and it holds pretty well
[IMG][/IMG]

Apparently the PD lift pump keeps up pretty well?

Let me know if you still want Vag logs vs case or inlet pressure.

Hope this helps you out.
__________________
03 Jetta, Cat 2u, DG Steel SP w/MOGolf Mod, 3"DP, 4"EXH, EaBP100 Bypass, Euroswitch, ECodes, Driving Light, PD Lift Pump, R520's, RC5,RC6, TDTuning, Malone, ScanGaugeII, 3" TIP, 2" TOP, HE221W Compounded with GTC1444VZ, 6 Bar MAP, VR6 MAF, Vented Fender Liner, Battery Cover Mod, 11mm, Monster Mats, 215/55/17 (27.9/53.0/75) Monthly MPG Links, Euro Trunk Latch, IDParts RSB, SDI or ALH Intake, ARL Ceramic Pistons, Rosten Rods, DRW, Wavetrac, SBC, FSD's, Beef Springs, Rebuilt Head, Recaro's, Colt II, DG Sigma 6, RMT200
Fix_Until_Broke is offline   Reply With Quote
Old November 12th, 2009, 22:14   #5
oldpoopie

oldpoopie's Avatar

Join Date: May 2001
Location: Portland Oregon
Default

SERIOUSLY THE MOST INTERESTING THREAD IN MONTHS!!!!!!!!!!!!!!
BRAVO!!!!!!!!!!!

If I have some time this weekend I'll hook up a gauge as well.
__________________
Pacific Northwest TRUSTED TDIClub mechanic

Email me, justgrow@gmail.com
oldpoopie is offline   Reply With Quote
Old November 13th, 2009, 01:13   #6
D_Bat
Veteran Member

Join Date: Jun 2008
Location: Melbourne, Fl.
Default

I haven't installed my FRB-11 yet but it did say that it had to be oriented a certain way and that it couldn't be turned a certain way. I forget but it was on the install instructions that came with it. Just something I'd like to quickly mention.
__________________
'98 Jetta TDI : GT2260V, FMIC, PP764, 3" Exhaust, VWMikel Tune
'97 Audi A4 Quattro : VR6 Swap
'87 Scirocco 16v : MS2
D_Bat is offline   Reply With Quote
Old November 13th, 2009, 06:57   #7
Jasengine
Veteran Member

Jasengine's Avatar

Join Date: Jun 2008
Location: Wiltshire, UK
Fuel Economy: 43mpg average
Default

Yes your correct on that, it has to be installed vertically.

I have the FRB-11, which I installed as I have fuel stavation when pulling hard in 4th or 5th gear. Once I installed this, the 'surging' had almost disapeared. I took logs before and after lift pump install so I will post them up later.
Jasengine is offline   Reply With Quote
Old November 13th, 2009, 07:10   #8
silverbox
Veteran Member

silverbox's Avatar

Join Date: Jul 2005
Location: Halifax Nova Scotia
Fuel Economy: 55mpg highway@100kph
Default

Left Coast Resident did some testing on the oe lift pump as well.
http://forums.tdiclub.com/showthread...ight=lift+pump
He got similar results.
__________________
KERMA tune, PDliftpump,11mmIP Race 520's. PD150 Intake manifold&TIP, 1722 turbo, Upgraded IC pipes and Eurojet SMIC.Stealth racepipe. 2.5DP+catback areoturbo2525 muffler. Peloquin LSD.
Koni FSD's +VR6 springs, 23mmRSB, 16x7w/Conti DWS. GLI Recaros, Wingnut short shifter, Ecodes w/relays+60/100h4's.
Cat2 Fuel filter DG/Amsoil Bypass filter
silverbox is offline   Reply With Quote
Old November 13th, 2009, 10:56   #9
Gearhead51
Veteran Member

Gearhead51's Avatar

Join Date: Jun 2008
Location: Suwanee (Atlanta), GA
TDI(s): 2000 Jetta
Default

I know there was debate on some IDI forums to a lift pump's abilities to skew timing. The timing actuator in those is pressure based. I guess this is not an issue on the TDI pump, though. I know the fuel return line is a busy place to be at high RPMs, so you'd have to have a heck of a pump to keep pressure on the inlet in these circumstances.

I measured case pressure on my IDI once by putting a gauge in a standoff between the return port in the pump and the banjo fitting. The return port on IDIs had a restriction orifice in the bolt.
__________________
'00 Silver Jetta TDI on Ground Control coilovers, Koni Yellows, B&M shifter, Audi R8 reps, and VNT20 ST2b. R520. '99.5 F350 with injectors, 4page chip, intake, and exhaust, '00 Honda RC51 in race plastics, Ducati 1098S, '94 RX7 436RWHP Rotary 4 life!
Gearhead51 is offline   Reply With Quote
Old November 13th, 2009, 11:20   #10
MethylEster
Veteran Member

Join Date: Sep 2004
Location: Lakeville, MN
Fuel Economy: 63/47/41 - Best/Avg/Worst
Default

I'm still waiting for dyno numbers with and without the lift pump to see what, if any, additional performance you get. Unless I've missed something recently nobody has yet to do that. Again I don't want subjective seat of the pants feelings. I am looking for hard facts.
__________________
99.5 Jetta, 5 Spd, Kerma Tune, VNT-17/22, PP520's, 3 Bar MAP, PD Lift Pump, ARP Studs, Whitbread 2.5" DP w/ High Flow Cat, OMI, IDParts Upper and Lower IC hoses, DG Race Pipe, SBC Stage II Endurance, ( Boost Gauge, EGT, Oil Press ), EVO Skid Plate, Neuspeed 25 mm Adj RSB, Koni STR-T's, Eibach ProKit Springs, TT Bushings, Akebono Ceramic & Brembo Rotors, GTI Recaro's
MethylEster is offline   Reply With Quote
Old November 13th, 2009, 11:47   #11
Stealth TDI
Pre-Forum Veteran Member

Stealth TDI's Avatar

Join Date: Feb 1998
Location: Newport News, VA
Default

My recent dyno testing showed just 2-hp difference with the FRB-11. It appears that's because there's no pressure at higher RPMs. But a lift pump that can actually pressurize the feed at all RPMs... ???
Stealth TDI is offline   Reply With Quote
Old November 13th, 2009, 12:00   #12
The Shootist
Veteran Member

Join Date: Aug 2006
Location: Hixson, TN
Default

This is the pressure case pressure tap according to my research...
__________________
2002 NB known as "Stitch" (small, round, blue, kinda cute...may bite if agitated). PP520s, RC3, EGR delete, turbo back 2.25" open exhaust, cat delete, Koni struts & springs Neuspeed bars, slotted rotors, 245-45-17 Sumitomo's. Things to do: H2O intercooler, VNT-2256, lift pump, bigger IP.
The Shootist is offline   Reply With Quote
Old November 13th, 2009, 14:32   #13
Jasengine
Veteran Member

Jasengine's Avatar

Join Date: Jun 2008
Location: Wiltshire, UK
Fuel Economy: 43mpg average
Default

Here are my results for the timing before and after lift pump install:



Jasengine is offline   Reply With Quote
Old November 13th, 2009, 14:40   #14
dvst8r
Veteran Member

dvst8r's Avatar

Join Date: Dec 2004
Location: Airdrie, AB
TDI(s): '03 Wagon
Default

Old setup.

Small Holley Red 67gph
KOEO: Never really paid attention
Idle: 7psi
WOT: under load 4-5psi.

New setup:
Bosch044: -6an feed on an areomotive bypass after CAT filter, -8an after the bypass (helps dampen pump pulses)
Idle: 25psi
WOT: Under load 24-25psi

I am quite certain that I could push this setup to 60psi+, but I know what happens at that point, and I don't feel like getting this pump machined for the retaining ring yet, as it is just a daily driver, nothing fancy.
__________________
Cetane Racing
- Where a tdi turbo upgrade isn't big unless that "56" referrers to the inducer size.

Quote:
Originally Posted by qmark
again, not a topic for this forum...take it to "people who give a ****" forum.....the only numbers hear we care about are hp/ftlbs...

Last edited by dvst8r; November 13th, 2009 at 14:42.
dvst8r is offline   Reply With Quote
Old November 13th, 2009, 15:41   #15
shizzler
Veteran Member

Join Date: Jun 2005
Location: Ann Arbor MI
Fuel Economy: Solid 50, daily life.
Default

Good thread Scott.

I too would like to see a before/after dyno. But there are several documented instances like the one above where injection timing better matches requested after installation of a lift pump. I wonder if actual timing slipping from requested as an indicator of fuel starvation also implies that actual vs. requested injection quantity would suffer too? Has anyone logged that data?

This thread is quite timely as I was thinking about purchasing a walbro or carter pump, but then went with a PD in-tank pump when Aaron ran his killer October special. Hopefully it'll keep my "light haze" from disappearing over 3500 rpm....
