Old May 20th, 2009, 16:56   #1
A5INKY

A5INKY's Avatar

Join Date: Sep 2007
Location: Louisville, KY
Fuel Economy: pretty good
Default Please Help! Rear Main Seal Replacement Tonight

Jan 2011 - FYI, I sold this tool some time ago. But I would not recommend doing this job without it.

Also, here is a good write up of the procedure if you want the "cliff notes" version:
http://www.myturbodiesel.com/1000q/a...a-Golf-mk5.htm

I am in the middle if installing a new clutch due to DMF failure and am also replacing the rear main seal (was leaking). There is a crank sensor associated with the seal in my BRM engine. The seal is reading off a ring that slips on the end of the crank with a small hole in it.

Do I need to "time" the placement of this hole in relation to TDC? if so how?

I noticed the new seal has an orange plastic clip holding the hole at top. I have searched and found nothing. My Bently has no info on this.

Gurus, please help!

BTW, this is the second flywheel failure in this car at 102K miles. The first replacement was under warranty and they insisted on OEM DMF. It is getting a SMF Sachs now.
__________________
Click for link and contact info:

Last edited by A5INKY; January 9th, 2011 at 14:22. Reason: to receive fewer PMs
A5INKY is offline   Reply With Quote
Old May 20th, 2009, 20:24   #2
A5INKY

A5INKY's Avatar

Join Date: Sep 2007
Location: Louisville, KY
Fuel Economy: pretty good
Default

I am in it now. Lacking any input I started searching. Ross Tech website links to VW's "Erwin" online service info, for $35 I got 24 hours access.

Turns out that the orientation of the ring for the sensor is super critical. So much so that VW has a very special tool for it. The tool holds the ring in the proper orientation while pressing the ring onto the crank shaft while at TDC, all while aligning the seal it self.

Looks like I am off to the dealership to see if I can beg or shame them into letting me borrow it. Not likely but has to happen even if I have to bribe someone. Maybe the service writter will take pitty considering his shop did same repair at the end of the warranty period and it started leaking again shortly thereafter.

Is there any easy way to set TDC? I cannot find any handy marks like on the timing covers of gasser motors. Can't stick a dial indicator in the spark plug hole, no plugs.

There must be some "trick" to setting TDC. Help please if you can.
__________________
Click for link and contact info:
A5INKY is offline   Reply With Quote
Old May 20th, 2009, 21:37   #3
Ol'Rattler
Veteran Member

Ol'Rattler's Avatar

Join Date: Jul 2007
Location: Marysville, Wa.
TDI(s): 2006 Jetta
Default

Was waiting for somone to post this.

I went to a DC SMF about 1000 miles ago and had the same dilema with wanting to change the rear main on my A5. Since I was at 50K miles and the rear main was not leaking, I did not change it. The proceedure as spelled out in my CD Bentleys was very involved and did require some special tools and procedures.

I found, in the back of my paper Bentleys, a web site for every VW special tool called out in the Bentleys manual. When I get off work, I will post the web site as well a list of the special tools required.

Maybe we can get MetalNurd or one of the other venders to rent the tools required to do the job.

Even though my clutch will probably last till 200K, the rear main will probably start leaking sometime before then................
__________________
2006 Jetta TDI
5 speed, Manufactured 06/06
DC stage 1 SMF Clutch
Draw-Tite hitch
Dash Tray
Blue tint aspherical mirrors
Euro Cupholder
Euro Light Switch
2nd grocery hook
VCDS Hacks: DRL Disabled-Seatbelt Chime Disabled-Key fob Power Windows
Adjusted Cam to Crank Timing
Ol'Rattler is offline   Reply With Quote
Old May 20th, 2009, 23:41   #4
Ol'Rattler
Veteran Member

Ol'Rattler's Avatar

Join Date: Jul 2007
Location: Marysville, Wa.
TDI(s): 2006 Jetta
Default

VW tool source. sold by tool P/N in the Bentleys manual. Just select VW and submit and then select browse catolog. And then order by phone. They are very helpfull.

http://buy.equipmentsolutions.com/login/login.aspx

I'm thinking that you have the Erwin, you probably have the VW special tools P/Ns.

There is a TDC mark on the flywheel. I don't know what it aligns with, especially with the transaxle and flywheel removed. Maybe someone that knows will weigh in on this.

To find TDC, Bentleys directs you to the timing belt procedure. Looks like the tool that holds the crank during belt change would asure TDC..............

Oh, ya. I'd print out what you need from Erwins before the subscription runs out including the timing belt, main seal, transaxle, clutch and flywheel procedures..............Just a though....
__________________
2006 Jetta TDI
5 speed, Manufactured 06/06
DC stage 1 SMF Clutch
Draw-Tite hitch
Dash Tray
Blue tint aspherical mirrors
Euro Cupholder
Euro Light Switch
2nd grocery hook
VCDS Hacks: DRL Disabled-Seatbelt Chime Disabled-Key fob Power Windows
Adjusted Cam to Crank Timing

Last edited by Ol'Rattler; May 20th, 2009 at 23:48.
Ol'Rattler is offline   Reply With Quote
Old May 21st, 2009, 05:45   #5
A5INKY

A5INKY's Avatar

Join Date: Sep 2007
Location: Louisville, KY
Fuel Economy: pretty good
Default

Thanks for weighing in on this Ol'Rattler. I was feeling like to lone cowboy out on the range.

I really appreciate the link and will look in to the tool if I cannot shame my dealer into helping me out of this jam. For reference the VW tool for installing the seal is: assembly tool -T10134-

I printed the entire repair manual from Erwin, all 266 pages. I also got the tech article about oil dripping from the turbo issue. I will get back on there again today and make sure there is nothing I am missing.

If anyone has a "trick" for setting the engine at TDC, please share. The procedure in the manual for the timing belt seems too involved the be the only way.
__________________
Click for link and contact info:
A5INKY is offline   Reply With Quote
Old May 21st, 2009, 09:53   #6
A5INKY

A5INKY's Avatar

Join Date: Sep 2007
Location: Louisville, KY
Fuel Economy: pretty good
Default

Dealership is no help (of course). I am up against a wall and have to get the car back together. I went ahead and ordered the seal installer tool from VW, thanks Ol'Rattler for the link. $218 for the tool! Maybe someone will want to bu it off me when I am done with it.

I also ordered a cam locator pin that I hope will set TDC precisely, per the timing belt procedure. My only fear is that though the cam will be straight up, it is no guarentee that the crank is straight up as well.

Anyone know if this is a legitimate concern?

Anyone want to buy a gently used BRM rear main seal installation tool?
__________________
Click for link and contact info:
A5INKY is offline   Reply With Quote
Old May 21st, 2009, 12:01   #7
Ol'Rattler
Veteran Member

Ol'Rattler's Avatar

Join Date: Jul 2007
Location: Marysville, Wa.
TDI(s): 2006 Jetta
Default

I thought that the locater tool for the crank sprocket would be the way to go, although it is more work than using the cam locator tool.

With the cam tool you might be able to take # 1 piston glow plug or injector out and and put something in the hole and gently rock the engine back and forth past were the cam tool thinks TDC is. There will be a point on either side of TDC were the "indicator" in the glowplug or injector hole just starts to move back down. half way between those 2 points is TDC.

Be very carefull you don't break anything off in the cylender...................

I've got a call into a tech that helped me with issues I had when I went to SMF. he might have some ideas, as well.
__________________
2006 Jetta TDI
5 speed, Manufactured 06/06
DC stage 1 SMF Clutch
Draw-Tite hitch
Dash Tray
Blue tint aspherical mirrors
Euro Cupholder
Euro Light Switch
2nd grocery hook
VCDS Hacks: DRL Disabled-Seatbelt Chime Disabled-Key fob Power Windows
Adjusted Cam to Crank Timing
Ol'Rattler is offline   Reply With Quote
Old May 21st, 2009, 13:13   #8
A5INKY

A5INKY's Avatar

Join Date: Sep 2007
Location: Louisville, KY
Fuel Economy: pretty good
Default

I got to looking closer at the tool I just ordered and the procedure I got off erWin. Looks like the tool has a pin built in to fine tune and hold crank TDC as part of the process. I am thinking that setting the cam at TDC is the start, then verify exact position with the VW tool when pressing the tone ring on the crank. By setting the cam first you know you are on the right rotation of the cam for actual TDC and not 360 degrees out (though, I guess it really would not matter-the crank does not care what the cam is doing for this sensor).

I am thinking I have this under control and as soon as I have the tool in hand it should go smooth.

Good bye oil leak. And thought a new seal would be so simple...
__________________
Click for link and contact info:
A5INKY is offline   Reply With Quote
Old May 21st, 2009, 23:27   #9
Ol'Rattler
Veteran Member

Ol'Rattler's Avatar

Join Date: Jul 2007
Location: Marysville, Wa.
TDI(s): 2006 Jetta
Default

If the tool has a positive index to the crank, then the locating pin would go into the hole at TDC. And your right, I think. as long as the crank is at TDC the crank position sensor doesn't even know what the cam is doing.

Saw your post in the tranny whine thread and am amazed. That is certainly one of the most epic fails by a dealer I have ever read about. Sounds like for what they spent, they could have bought you an new engine with change left over.

There is a thread on the forum about why you should never go to a dealer.................

Like Geremy Clarkston might say: I can't even describe the magnatude of their fail. It was of Biblical proportions
__________________
2006 Jetta TDI
5 speed, Manufactured 06/06
DC stage 1 SMF Clutch
Draw-Tite hitch
Dash Tray
Blue tint aspherical mirrors
Euro Cupholder
Euro Light Switch
2nd grocery hook
VCDS Hacks: DRL Disabled-Seatbelt Chime Disabled-Key fob Power Windows
Adjusted Cam to Crank Timing

Last edited by Ol'Rattler; May 22nd, 2009 at 11:23.
Ol'Rattler is offline   Reply With Quote
Old May 22nd, 2009, 06:12   #10
dsmith1279
Member

Join Date: Nov 2007
Location: Oklahoma
Default

A5INKY, Keep us in the loop on your progress. I just got done doing my SMF and too felt like a Lone Ranger when I found out that the used A5 I bought had an A4 tranny in it!!! Ugh, what a nightmare, but none the less it all worked out. You should be able to get your money back out of that tool as the A5s are beginning to hit the low triple digits and will eventually need their rear mains changed out. Heck, you could even do a "rental" program!

Hope you get it all figured out.
dsmith1279 is offline   Reply With Quote
Old May 22nd, 2009, 19:37   #11
paramedick

paramedick's Avatar
Default

If you need to borrow a BRM crank lock tool, drive up and see me tomorrow. Only an hour up the BG Parkway.

I do need it back in a timely fashion. You're welcome for a week or so.
__________________
Selected TDI Repair Services available. No greasecars, please.
To contact me: E mail = quick answer via iPhone. Click on username for E mail address. PMs are turned off!!!
An all TDI Family!!
paramedick is offline   Reply With Quote
Old May 24th, 2009, 23:54   #12
mtbr297

mtbr297's Avatar

Join Date: Nov 2002
Location: Ft. Worth, TX., USA
Default

This style of seal is used on the CBEA engine and probably the newer gas engines since the tool has 2 pins for aligning the tone ring, a black for gas engines and red for diesel.
__________________
Steve in Fort Worth, TX
TDI club trusted mechanic.
TechnicalDieselInnovations
mtbr297 is offline   Reply With Quote
Old June 1st, 2009, 19:00   #13
A5INKY

A5INKY's Avatar

Join Date: Sep 2007
Location: Louisville, KY
Fuel Economy: pretty good
Default

Ya Hoooooo! Success, oil leak is gone for the first time since I have had the car!

Sorry it has been a while to update on this. I did get the tool and though it was the most complicated seal replacement I have ever done, it went really smoothly.

On closer inspection I found the seal had a hole poked in it under the crank sensor! Another area was damaged but not all the way through. I also found metal filings, a bunch of gasket material and a spring(!) in the oil pump pick up (grenaded head caused by improper crank sensor replacement at dealer that was not cleaned up after.) Found two critical stripped fasteners at the oil pan (bottom bell housing mount) and motor mount. Found a plastic bushing in the shift linkage was also missing causing intermittant balky shifts at 4-5. Long story short, I feel raped by the dealership. Bachman VW in Louisville if anyone is keeping score. If anyone at Bachman is reading this, YOUR COMPANY SUCKS! Beware of these idiots, TDI Clubbers.

I question if the seal was ever replaced, let alone twice as claimed by the dealer. If it was replaced, I wonder if they even had the tool, or if they faked it.

On a positive note, the Sachs clutch with 14lb. SMF from Aaron at Bora Parts is really nice. The pedal is lighter than stock, that took a little while to get used to but I like it now. As expected from a SMF set-up, there is significant "gear roll-over" noise when idling in neutral but it is a small concession for the peace-of-mind of knowing the DMF is not getting ready to explode.

I now have this special tool from VW that I hope to not ever need on my car again. Yes, I believe mtbr297 is right, it is the same tool used on the gasser motors for their seal as it has the two locator pins (red and black). I am not actually in the automotive business anymore and not really interested in running a tool rental. However, I would make a good deal to someone in need, preferably as a rental in case I ever neeed it again, Paramedick? Bleached Bora? I paid $218 +shipping, would take offers.

Thanks, Ol'Rattler for the link to the tool website.
__________________
Click for link and contact info:
A5INKY is offline   Reply With Quote
Old May 19th, 2010, 13:03   #14
aNUT

aNUT's Avatar

Join Date: Nov 2006
Location: Front Range, Colorado
TDI(s): '02 Golf
Fuel Economy: Great.
Default Solution

I ran into this problem yesterday. FWIW, if you don't have the reference ring installed in the correct position, you get camshaft position sensor implausible codes and a car that won't start. Yes, I learned this the hard way
The solution is:

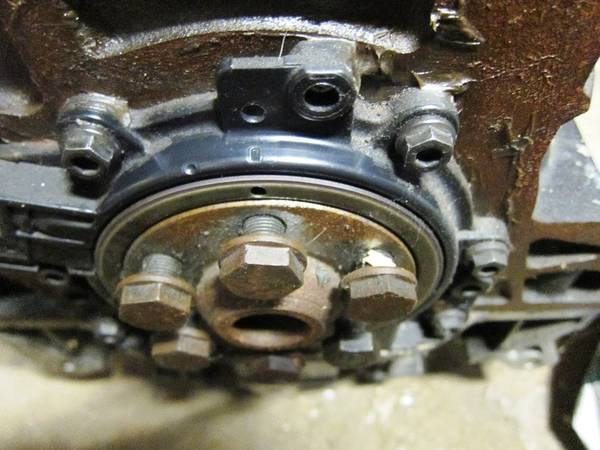

The reference ring and the seal carrier have a TDC mark. The mark on the ring is the oblong 4mm hole. The mark on the seal carrier is a small indentation straight up; in line with the cylinder bore axis. (This is about 1 o'clock with the engine in the installed position)

My Victor Reinz seal came with an orange plastic locating clip with centers the ring in the seal carrier. Install the reference ring in this position with the engine at exactly TDC using the crank lock which engages the timing belt pulley.
If you do not have the orange plastic clip, the oblong hole should be exactly centered between the top two bolt holes in the seal carrier that secure it to the block. This distance is 1.3 in.

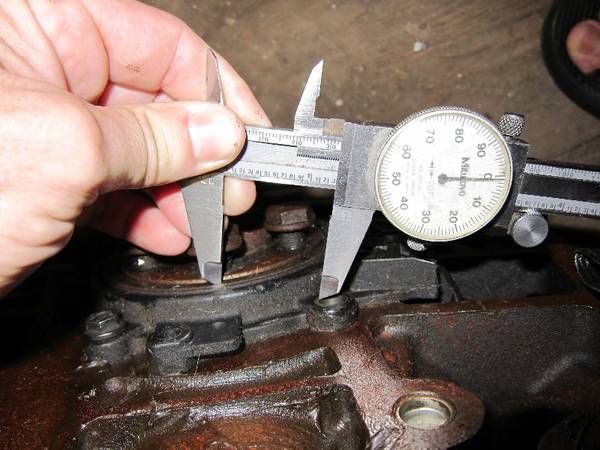

These are Jim 'Dieselgeek' Royston's pictures. He absolutely went way out of his way, running all over town to get me out of a jam. I feel really good about buying products from such a stand up guy, and I encourage all TDI owners to do the same.
__________________
TDI Club Supporting Member
www.dieselland.net Let me build your TDI!
anuthee@gmail.com I prefer email over PM, thanks.
JollyGreenGiant's VAG log viewing application
Fix your leaky injection pump - VIDEO by Runonbeer w/ Dieselgeek

Last edited by aNUT; May 19th, 2010 at 13:05.
aNUT is offline   Reply With Quote
Old May 19th, 2010, 18:35   #15
dzcad90
Rolex & gin

dzcad90's Avatar

Join Date: Mar 1999
Location: Joliet, IL USA
Default

Adding this post to the MkV FAQ. Thanks for the good work, descriptions, and pictures on this thread!!
