Old April 3rd, 2009, 18:57   #1
SUNRG
Veteran Member

SUNRG's Avatar

Join Date: Oct 2003
Location: Roanoke, VA
Fuel Economy: 28mpg@74mph: 1995 Volvo 850 Turbo Wagon
Default How To: B5.5 FM100 5-micron Fuel Filter Upgrade

Rational

The OEM fuel filter has been virtually unchanged since the IDI VW diesels and when VW started making TDIs injection pressures increased and contaminant caused injector wear increased.

Enter the PD and injection pressures went thru the roof to 30,000+psi but *initially* the fuel filter was still unchanged. VW eventually realized what a problem pairing 30,000psi with an antiquated fuel filter was and completely redesigned the filter with a far more advanced filter media - beginning with the 2006 A5s.

The Mann MultimediaF filters in the A5s are outstanding, cutting edge diesel fuel filtration.

Unfortunately, that leaves us A4 and B5.5 PD owners to fend for our beloved TDI fuel pumping and injection systems!

If you stay with OEM fuel filtration your PD will run great for a long while, then pretty good, then OK and then not so well in comparison to when it was new but it's a gradual deterioration of performance so you may not notice it until it gets really bad. When it does get bad the cost of replacing PD injectors is quite high.

Upgrading to a modern high-performance diesel fuel filter should enable injection performance to be like-new for longer and performance deteriorization will be slower. The cost of upgrading is quite low and replacement FM100 filters are less expensive than OEM filters ...

Filtration Efficiency Data

Following is data straight from Mann and Stanadyne regarding the filtration efficiencies of the A4 OEM and FM100 filters using the same ISO/TR 13353 testing procedure.

ISO/TR 13353: gives a test procedure for evaluating the initial efficiency by particule counting of an internal combustion engine fuel filter by submitting the filter to a constant flowrate of test liquid.

A4 OEM/MANN: The filtration efficiency of WK 853/3 is 58% at 3-5 micron, according to ISO/TR 13353

Stanadyne FM100 5-micron: Average Particle Retention Efficiency (at 5-micron) Per ISO TR 13353, Sec. 6.2 - 97% @ 170 lph (45 gph)

Parts
FM100 Filter Head with 3/8” NPT Ports
FM100 6” 5um Fuel Filter Element
2 – 3/8 > 1/8 brass bushings
2 – 1/8 > 5/16 hose fittings
2 – 3/8 plugs
6’ – 7.5mm diesel fuel line
7 – stainless steel hose clamps

Tools
2 – line clamps
” drive
7/16 socket or combination wrench
11/16 socket or combination wrench
pliers
scissors
10mm socket
torx bit to remove fuel filter star bolt and replace with 5mm stainless steel allen bolt

Procedure

Pre - clean engine and "customize" FM100 head
  • the day before doing any fuel system work i clean my engine to reduce the risk of dirt being introduced into the fuel system.

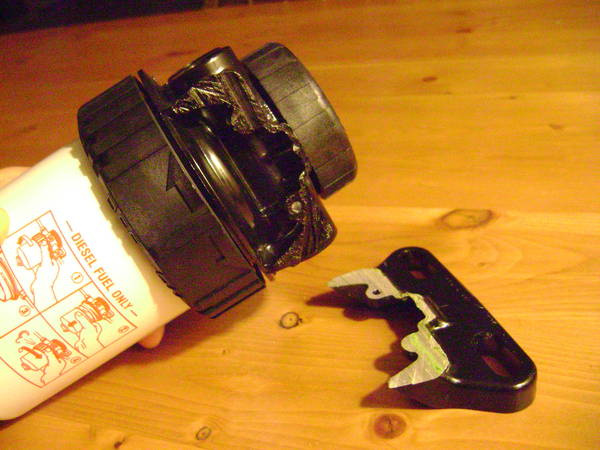

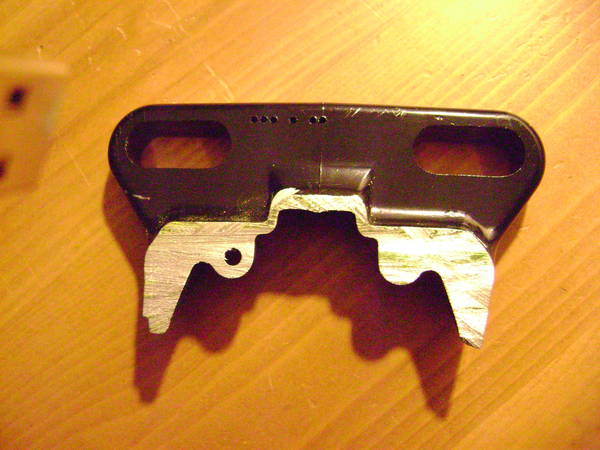

  • cut the mounting bracket off the FM100 head as the filter will be held in the OEM filter bracket. i used a common 12" hacksaw with a 24tpi blade. i went slow, easy and carefully and it probably took me 25 minutes.

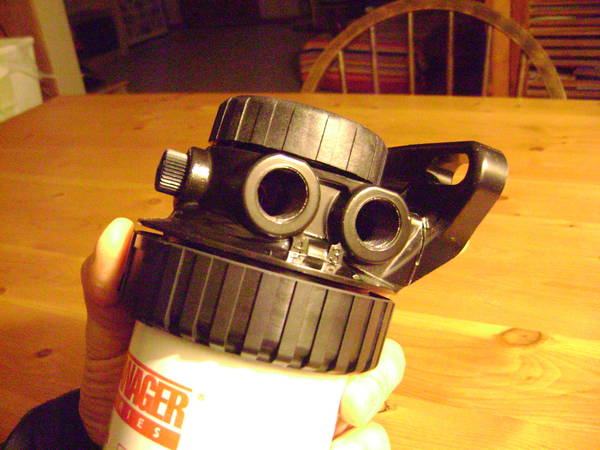

1 - Prep and Install fittings on FM100 Filter Head

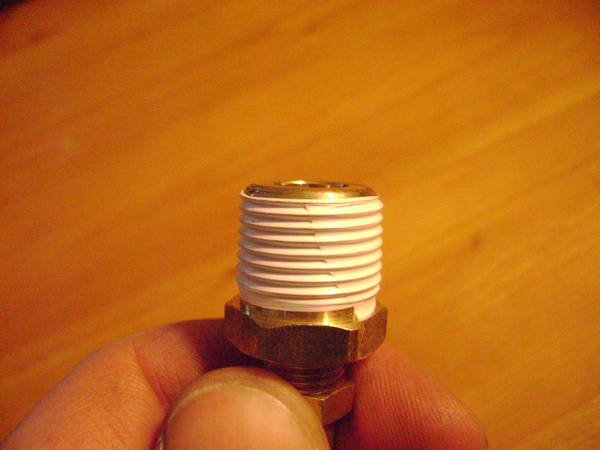

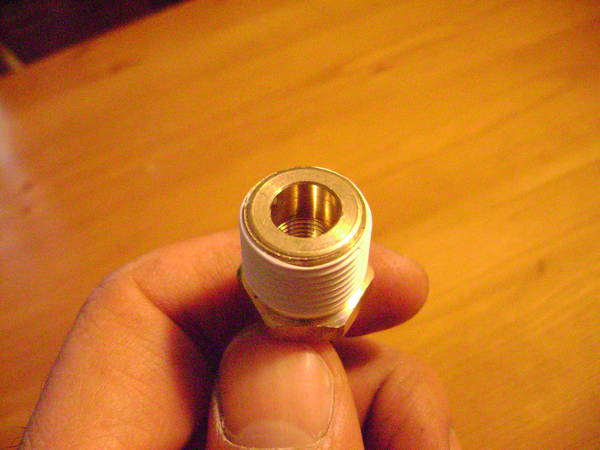

  • carefully wrap all fitting threads in teflon tape being certain to only apply tape to the threads. Do not to allow any tape to obstruct the fuel flow path.




  • tighten all fittings down onto FM100 head. when looking at the front of the FM100, install plugs to the right side, hose fittings to the left side.
2 - Remove Old Filter

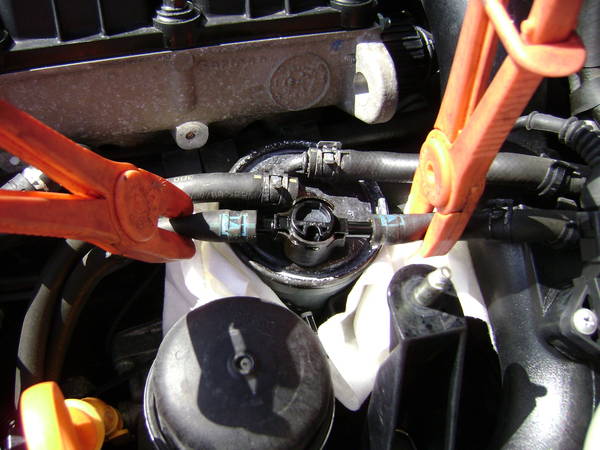

  • All fuel lines are completely removed *with the exception of the fuel line that delivers cleaned fuel from the fuel filter to the engine*. Use hose clamps to reduce fuel spillage. The return line that goes from the engine to through a fuel sensor to the thermostatic "T" is removed after the fuel sensor (ie - the fuel sensor remains in place).
  • Loosen , remove and loosely replace the star bolt with a 5mm stainless steel allen bolt.
  • Remove and discard the OEM fuel filter.


3 - Install Fuel Return Line

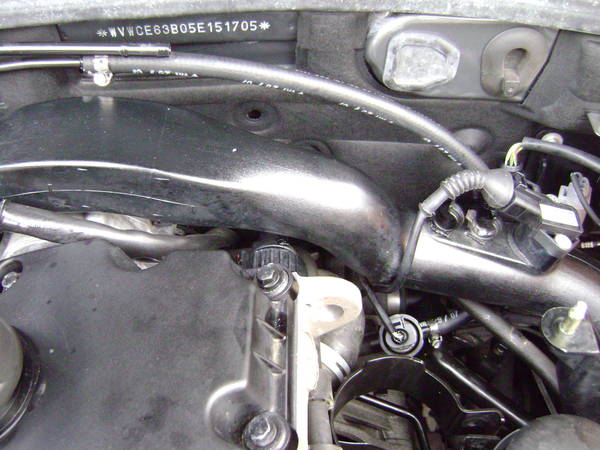

On my TDIs I remove the thermostatic "T" so this image shows the return line going from the engine to a fuel sensor and then directly back to the fuel tank (fuel actually travels through a fuel cooler after leaving the engine bay en route to returning to the fuel tank).



__________________
ECO-DRIVING - advanced driving techniques contributing to sustainable mobility. Links 1 - 2 - 3 - 4 - 5
Bicycles, lots of them, mpg | 05 VW Passat Wagon GLS TDI ~36mpg

Last edited by SUNRG; April 4th, 2009 at 19:29.
SUNRG is offline   Reply With Quote
Old April 3rd, 2009, 19:19   #2
SUNRG
Veteran Member

SUNRG's Avatar

Join Date: Oct 2003
Location: Roanoke, VA
Fuel Economy: 28mpg@74mph: 1995 Volvo 850 Turbo Wagon
Default

4 - Install FM100 with Mann Pre-Filter, Prime and Flush Fuel Filter
Place the assembled FM100 filter, head and fittings in the OEM fuel filter bracket and tighten 5mm allen bolt.

Connect all fuel lines *except the line that delivers clean fuel from the fuel filter to the engine*.

Attach Mity-Vac to the fuel-out port on the FM100 head. Pump the Mity-Vac to prime the system, then continue to pump a quart of fuel through the system to flush any assembly contaminants from the unit.




5 - Remove Mity-Vac, attach the Fuel Delivery line, start engine and check for leaks.



6 - Images:
Front View:

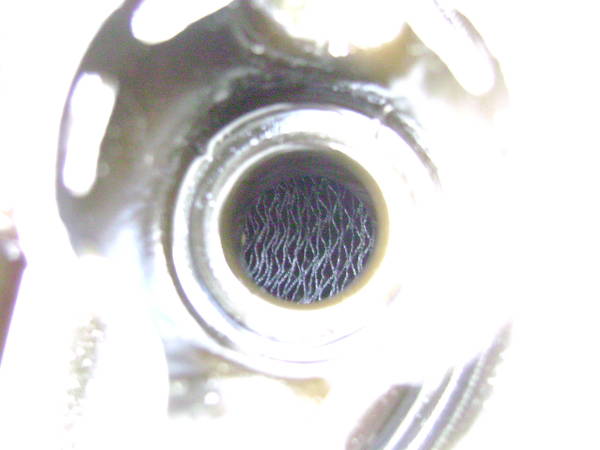

Pre-Filter Close-Up


Rear Close-Up:


Fuel Line Routing


Top View:

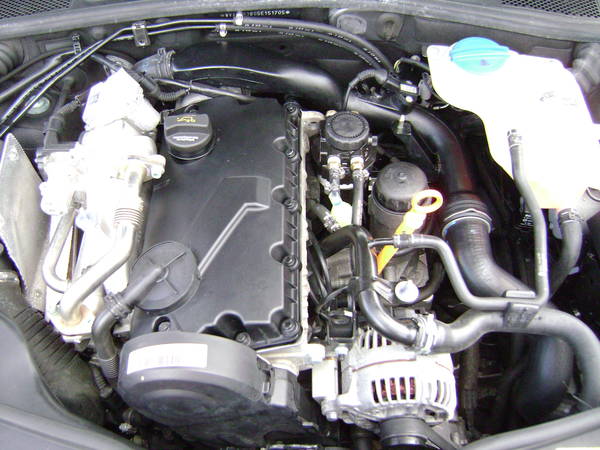

Overview 1:




__________________
ECO-DRIVING - advanced driving techniques contributing to sustainable mobility. Links 1 - 2 - 3 - 4 - 5
Bicycles, lots of them, mpg | 05 VW Passat Wagon GLS TDI ~36mpg

Last edited by SUNRG; April 3rd, 2009 at 19:22.
SUNRG is offline   Reply With Quote
Old April 3rd, 2009, 19:29   #3
SUNRG
Veteran Member

SUNRG's Avatar

Join Date: Oct 2003
Location: Roanoke, VA
Fuel Economy: 28mpg@74mph: 1995 Volvo 850 Turbo Wagon
Default

Images (continued):
Overview 2:


Outcome:

Overall, I am incredibly pleased with this install. I've installed FM100s on A4 VWs and Mercedes 123s, this was my first attempt at a B5.5 install and the result is perfect.

Line routing is very flowing and natural, moreso by far than the OEM setup IMHO.

Cheers! Rob
__________________
ECO-DRIVING - advanced driving techniques contributing to sustainable mobility. Links 1 - 2 - 3 - 4 - 5
Bicycles, lots of them, mpg | 05 VW Passat Wagon GLS TDI ~36mpg

Last edited by SUNRG; April 3rd, 2009 at 19:40.
SUNRG is offline   Reply With Quote
Old April 3rd, 2009, 19:40   #4
aja8888
Veteran Member

aja8888's Avatar

Join Date: Dec 2007
Location: Texas..RETIRED 12/31/17
TDI(s): Out of TDI's
Fuel Economy: About as good as it gets!
Default

Very nice job, I should do that upgrade too.
__________________
Quote:
Originally Posted by Big Mike View Post
........"Everybody has a plan until they get punched in the face." -- philosopher Mike Tyson.
aja8888 is offline   Reply With Quote
Old April 3rd, 2009, 19:49   #5
SUNRG
Veteran Member

SUNRG's Avatar

Join Date: Oct 2003
Location: Roanoke, VA
Fuel Economy: 28mpg@74mph: 1995 Volvo 850 Turbo Wagon
Default

Quote:
Originally Posted by aja8888
Very nice job, I should do that upgrade too.
since you've invested in the BS you're probably planning to keep your B5.5 a long while, so yeah, this is a huge upgrade in terms of fuel cleanliness, fuel water removal, increased contaminant capacity, increased filter face surface area, super easy filter changes (twist off ring) and the pre-filter is a great sight glass so you can easily see what the fuel looks like that's going into your beloved TDI. if you ever were to get a batch of horribly contaminated fuel you may be able to see that by looking at the pre-filter. cheers! rob
__________________
ECO-DRIVING - advanced driving techniques contributing to sustainable mobility. Links 1 - 2 - 3 - 4 - 5
Bicycles, lots of them, mpg | 05 VW Passat Wagon GLS TDI ~36mpg
SUNRG is offline   Reply With Quote
Old April 3rd, 2009, 20:26   #6
SUNRG
Veteran Member

SUNRG's Avatar

Join Date: Oct 2003
Location: Roanoke, VA
Fuel Economy: 28mpg@74mph: 1995 Volvo 850 Turbo Wagon
Default

OEM:


Filter Media (technology circa 1977)
dirty

clean


New and Old:


FM100 Filter Media
__________________
ECO-DRIVING - advanced driving techniques contributing to sustainable mobility. Links 1 - 2 - 3 - 4 - 5
Bicycles, lots of them, mpg | 05 VW Passat Wagon GLS TDI ~36mpg

Last edited by SUNRG; April 3rd, 2009 at 20:44.
SUNRG is offline   Reply With Quote
Old April 3rd, 2009, 20:44   #7
SUNRG
Veteran Member

SUNRG's Avatar

Join Date: Oct 2003
Location: Roanoke, VA
Fuel Economy: 28mpg@74mph: 1995 Volvo 850 Turbo Wagon
Default

updated original post to include fuel filter upgrade rational.
__________________
ECO-DRIVING - advanced driving techniques contributing to sustainable mobility. Links 1 - 2 - 3 - 4 - 5
Bicycles, lots of them, mpg | 05 VW Passat Wagon GLS TDI ~36mpg
SUNRG is offline   Reply With Quote
Old April 3rd, 2009, 21:25   #8
KALaBenne
Veteran Member

Join Date: Jan 2008
Location: Piedmont, AL USA
Fuel Economy: 35.2 MPG
Default

Great write up, I vote it goes in mogolf's how-to thread.

Three questions:
1) I thought I read somewhere that there was a reaction between brass and biodiesel? or was that WVO?

2) In one of the other threads on this filter set-up you used a gauge mounted in one of the empty ports, would this be a good way to know when to change it? or do you just change it every 20K still?

3) Is there enough slack in the lines that you can lift the whole mess up out of the clamp to screw off the filter and change it without having to undo the fuel lines? I guess I'm asking what the changing procedure becomes?
__________________
'04 B5.5V GLS TDI Retired 330K Urban Grey / Anthracite Leather
Delete - dealer, vent, chime, DRLs, Ceramic GP's, BS CHAIN
Add - auto unlock, sunglass holder
'82 MB 300D(turbo) 378K Tornado Survivor/Daily Driver
KALaBenne is offline   Reply With Quote
Old April 3rd, 2009, 23:59   #9
SUNRG
Veteran Member

SUNRG's Avatar

Join Date: Oct 2003
Location: Roanoke, VA
Fuel Economy: 28mpg@74mph: 1995 Volvo 850 Turbo Wagon
Default

i think the brass biod reaction claims are overblown. but, there are other fitting options. plastic is readily available and stainless steel can be aquired (so i hear).

i change the filter annually, each fall, and i think this is a good practice to insure optimal winter fuel flow and filtration. so i skipped the restriction guage in this install. this filter in the 6" version that i installed is designed for huge diesel engines, so annual changes are overdoing it but i still feel like it's a reasonable practice - especially since they're only like $17 a filter.

there's a super-simple lock ring that secures the filter head to the filter. to change the filter all you do is loosen the lock ring 1/4 turn, then the filter head lifts right off with all hoses attached. loosen the 5mm filter housing bolt, lift the old filter out, drop the new filter in, fill with injector cleaner, place the head on the new filter, turn the lock ring and done. incredibly easy.

Quote:
Originally Posted by KALaBenne
Great write up, I vote it goes in mogolf's how-to thread.

Three questions:
1) I thought I read somewhere that there was a reaction between brass and biodiesel? or was that WVO?

2) In one of the other threads on this filter set-up you used a gauge mounted in one of the empty ports, would this be a good way to know when to change it? or do you just change it every 20K still?

3) Is there enough slack in the lines that you can lift the whole mess up out of the clamp to screw off the filter and change it without having to undo the fuel lines? I guess I'm asking what the changing procedure becomes?
__________________
ECO-DRIVING - advanced driving techniques contributing to sustainable mobility. Links 1 - 2 - 3 - 4 - 5
Bicycles, lots of them, mpg | 05 VW Passat Wagon GLS TDI ~36mpg
SUNRG is offline   Reply With Quote
Old April 4th, 2009, 01:32   #10
cvalentine
Veteran Member

cvalentine's Avatar

Join Date: Aug 2003
Location: Anchorage, AK
Fuel Economy: 37
Default

Sweet install, but I would avoid the use of teflon tape on threaded fuel connections. Although you can get away with teflon tape if you're careful, you're better off using a fuel rated dope like Gasoila.
cvalentine is offline   Reply With Quote
Old April 4th, 2009, 09:40   #11
aja8888
Veteran Member

aja8888's Avatar

Join Date: Dec 2007
Location: Texas..RETIRED 12/31/17
TDI(s): Out of TDI's
Fuel Economy: About as good as it gets!
Default

Qusetion: where is Gasoila tape sold locally. I really don't want to mail order it if possible.

Also: are these the correct head and filter parts?


31877 FM100 standard flow F/WS element 6" 5m $17.52 ea.1 $17.52

33648 FM100 Head Assembly - 3/8x18 NPTF Ports $37.00 ea.1 $37.00

Subtotal:$54.52


UPS Gnd Residential [77381] Shipping:$14.08Grand Total:$68.60

Thanks,

Tony
__________________
Quote:
Originally Posted by Big Mike View Post
........"Everybody has a plan until they get punched in the face." -- philosopher Mike Tyson.

Last edited by aja8888; April 4th, 2009 at 10:32.
aja8888 is offline   Reply With Quote
Old April 4th, 2009, 19:01   #12
SUNRG
Veteran Member

SUNRG's Avatar

Join Date: Oct 2003
Location: Roanoke, VA
Fuel Economy: 28mpg@74mph: 1995 Volvo 850 Turbo Wagon
Default

i looked at the Gasoila website and their thread tapes are PTFE - i.e. teflon tape.

i've assembled whole biodiesel co-op fuel pumping and filtration assemblies with teflon tape and no problems.

cvalentine - am i missing something? what is your concern regarding teflon?

aja8888 - i've always used www.reliableindustries.com Toll Free: 800.693.4583

those parts do look correct.
__________________
ECO-DRIVING - advanced driving techniques contributing to sustainable mobility. Links 1 - 2 - 3 - 4 - 5
Bicycles, lots of them, mpg | 05 VW Passat Wagon GLS TDI ~36mpg
SUNRG is offline   Reply With Quote
Old April 4th, 2009, 19:20   #13
aja8888
Veteran Member

aja8888's Avatar

Join Date: Dec 2007
Location: Texas..RETIRED 12/31/17
TDI(s): Out of TDI's
Fuel Economy: About as good as it gets!
Default

Quote:
Originally Posted by SUNRG
i looked at the Gasoila website and their thread tapes are PTFE - i.e. teflon tape.

i've assembled whole biodiesel co-op fuel pumping and filtration assemblies with teflon tape and no problems.

cvalentine - am i missing something? what is your concern regarding teflon?

aja8888 - i've always used www.reliableindustries.com Toll Free: 800.693.4583

those parts do look correct.
Thanks, their website does not allow online ordering, but they are "local" (Texas). I may give them a call Monday. Teflon tape it is.

Tony
__________________
Quote:
Originally Posted by Big Mike View Post
........"Everybody has a plan until they get punched in the face." -- philosopher Mike Tyson.
aja8888 is offline   Reply With Quote
Old April 4th, 2009, 19:21   #14
SUNRG
Veteran Member

SUNRG's Avatar

Join Date: Oct 2003
Location: Roanoke, VA
Fuel Economy: 28mpg@74mph: 1995 Volvo 850 Turbo Wagon
Default

Here's data straight from the manufacturers, both using identical testing procedure ISO/TR 13353.

ISO/TR 13353: gives a test procedure for evaluating the initial efficiency by particule counting of an internal combustion engine fuel filter by submitting the filter to a constant flowrate of test liquid.

A4 OEM/MANN:

Quote:
The filtration efficiency of WK 853/3 is 58% at 3-5 micron, according to ISO/TR 13353
Stanadyne FM100 5-micron:
Quote:
Average Particle Retention Efficiency (at 5-micron) Per ISO TR 13353, Sec. 6.2 - 97% @ 170 lph (45 gph)
__________________
ECO-DRIVING - advanced driving techniques contributing to sustainable mobility. Links 1 - 2 - 3 - 4 - 5
Bicycles, lots of them, mpg | 05 VW Passat Wagon GLS TDI ~36mpg
SUNRG is offline   Reply With Quote
Old April 4th, 2009, 19:39   #15
SUNRG
Veteran Member

SUNRG's Avatar

Join Date: Oct 2003
Location: Roanoke, VA
Fuel Economy: 28mpg@74mph: 1995 Volvo 850 Turbo Wagon
Default

Quote:
Originally Posted by aja8888
Thanks, their website does not allow online ordering, but they are "local" (Texas). I may give them a call Monday. Teflon tape it is.

Tony
yeah you gotta call these guys up, but they're super nice. i had a little more in the package they shipped to me and the freight charge was only $9.90. also Reliable's prices are a tiny bit lower than what you were quoted.

PS - if you don't have a mity vac you can pick up a mity vac knock-off at walmart for under $10. that's what i did. it's only needed IMHO for the initial install to flush the system by pulling a significant amount of fluid through it. thereafter you can just pop off the head unit, drop in a new filter, pour diesel purge or the like in it, put the head back on and drive.
__________________
ECO-DRIVING - advanced driving techniques contributing to sustainable mobility. Links 1 - 2 - 3 - 4 - 5
Bicycles, lots of them, mpg | 05 VW Passat Wagon GLS TDI ~36mpg

Last edited by SUNRG; April 4th, 2009 at 19:43.
SUNRG is offline   Reply With Quote
Reply


Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off

Forum Jump


All times are GMT -7. The time now is 18:41.


Powered by vBulletin® Version 3.8.5
Copyright ©2000 - 2020, Jelsoft Enterprises Ltd.
Copyright - TDIClub Online LTD - 2017
Contact Us | Privacy Statement | Forum Rules | Disclaimer
TDIClub Online Ltd (TDIClub.com) is not affiliated with the VWoA or VWAG and is supported by contributions from viewers like you.
1996 - 2017, All Rights Reserved
Page generated in 0.21585 seconds with 9 queries
[Output: 147.76 Kb. compressed to 124.66 Kb. by saving 23.10 Kb. (15.64%)]
