Talking 3" Downpipe + 4" Exhaust in A4 Jetta

Well - I'm not sure why I did it, but I did

Video - no muffler, stock everything else

Video - with muffler, PP502's & RC2. This much smoke is NOT typical, it had been 1000+ miles since anything over ~50% throttle (not to mention 100% as shown in the video) and there's a fair ammount to 'clean out'. The cloud from when I first pulled out of the driveway (can't see in the video - too far to the right) was embarrassingly large and black. Not quite enough to literally stop traffic like I could with my old 5.7L Diesel Regal, but more than acceptable for me Think IQ is a bit low (2-3 ish).

Video - With 4" Powerstroke muffler, 17/22 turbo, PP502's, RC6, VR6 MAF, 3" Turbo Inlet, etc - sounds like crap from the outside, but sounds nice and quiet inside which is where it counts for me.

I have no particular thing for the Aero Turbine muffler, I actually don't believe a lot of their claims on their website. It happens to be the only muffler that I found that would fit in the cat tunnel - that's the only reason I used it.

I had a cat + muffler ectomey's before but stock sizes. This was no louder in normal driving (in the cabin), moderately louder under throttle (in the cabin), nice turbo whistle (inside and out), moderately louder outside the car in all conditions. Video & Video of iBlake's car with the same setup (cat & muffler delete with stock sizes) for comparison.

[Now with muffler - these comments are for reference only] The 3"+4" straight pipe is a whole different story - it is slightly louder in normal driving (in the cabin) but has some resonances at certian speeds/loads, much louder under throttle (inside and out), crazy turbo whistle (outside), much louder outside the car in all conditions - probably borderline illegal. EDIT - this was primiarly while pulling a 1000 lb trailer, it is quieter with just the car - no louder under steady cruising conditions - EDIT

The turbo whistle sounds like a jet engine up to ~5 psi, then goes quiet above that. The jet engine sound is is present both on increasing and decreasing boost - think of a jet taxiing to the terminal. I really like this part of it. EDIT - this was tamed down a bit with the muffler, but not much - the muffler is a pretty decent high pass filter and the whistle comes through good, just quieter. - EDIT

There is (now was with muffler) definately a lot of ricer fart can sound to it, espically under load. I'll have to get a muffler in the future as I don't like the ppbbbttt sound and also have to get rid of the drones/resonances. I just hope it does not kill the turbo whistle. EDIT - Had to put a muffler in as the drones at 70+ MPH were too much for me. Muffler killed the ppbbbttt sound pretty much completely, but the turbo whistle didn't get hurt too badly. This should pass all but the most crotchety critics as far as noise/sound. - EDIT

EDIT - Deleted vibration comments, Vibrations fixed - EDIT

I know it's complete overkill, but if 4" fits, there's no reason to do 3" (big grin).

EDIT - EGT's with muffler are ~100F lower typically (on a stock nozzles/tune), 50-150 min/max reduction. A 3 mile 120 MPH WOT run turned out just at 900F post turbo EGT, previous runs gave a bit over 1000F. Both in similar ambient temperatures. Normal driving is also lower. Either the stock 2.25" system is restrictive or my EGT gauage shifted ~100F low.

Did a 2 mile top speed run (now with PP502's and RC2) and post turbo EGT's were ~1200F when I got out of it at 130 (both EGT's and MPH's still rising)

EMP measurements can be found in this thread and/or this thread

Still a couple little things I want to fix/adjust yet, but overall I'm very pleased with it. Will try to get some in cabin video/audio when I get the out side of car video with the muffler - EDIT

EDIT - A big THANK YOU to Al Meyer at Meyer's Custom Chevy for all the help, advice and use of his shop and tools for an entire weekend! - EDIT

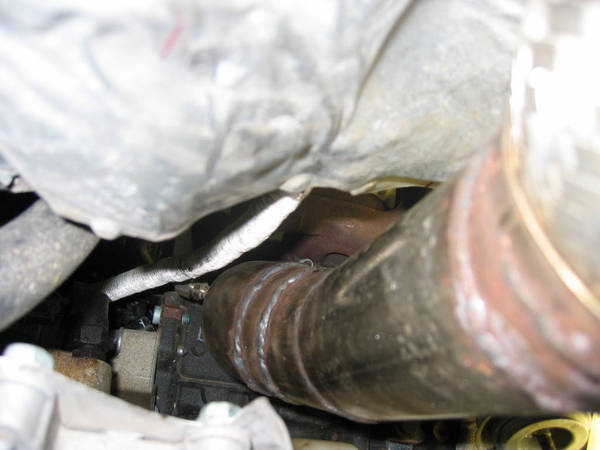

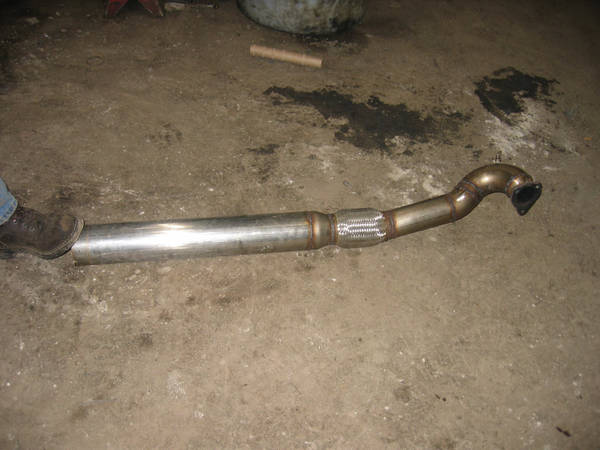

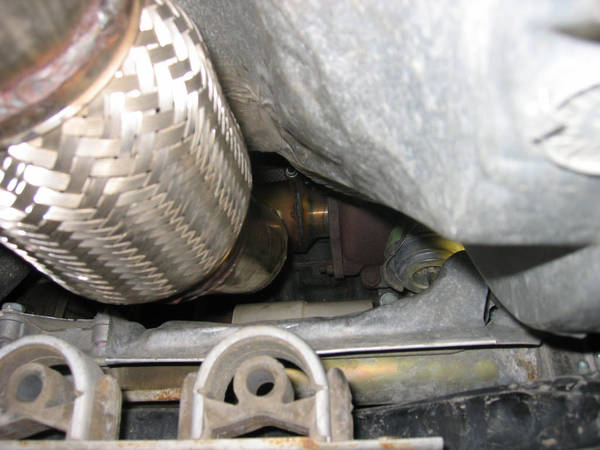

[IMG][/IMG]There (used to be) a muffler in here now between my foot and the flex joint where the cat used to be (it looks like this again). Will try to get pics sometime (looks like this now). - See post 145 for the latest setup - this ended up breaking right at the turbo flange

[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]

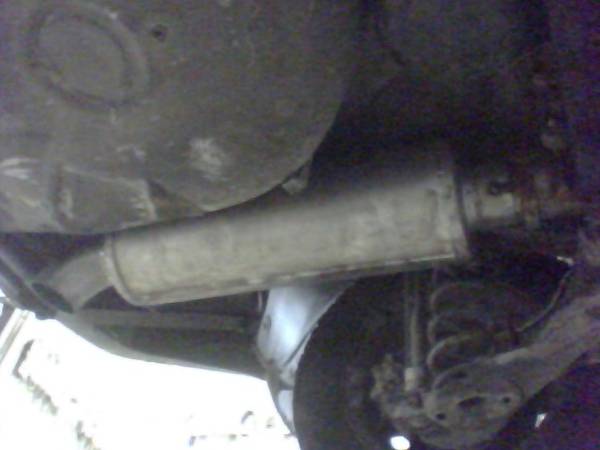

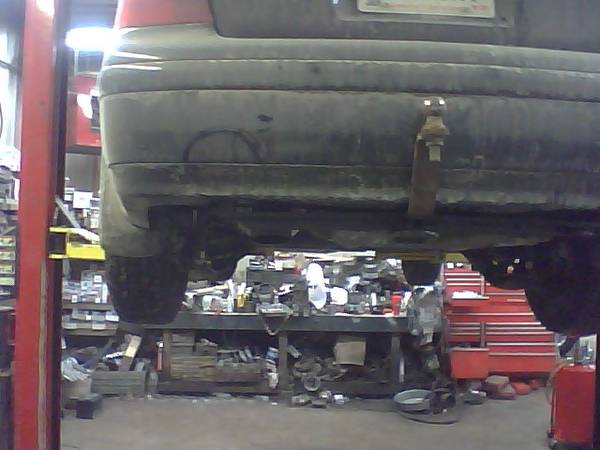

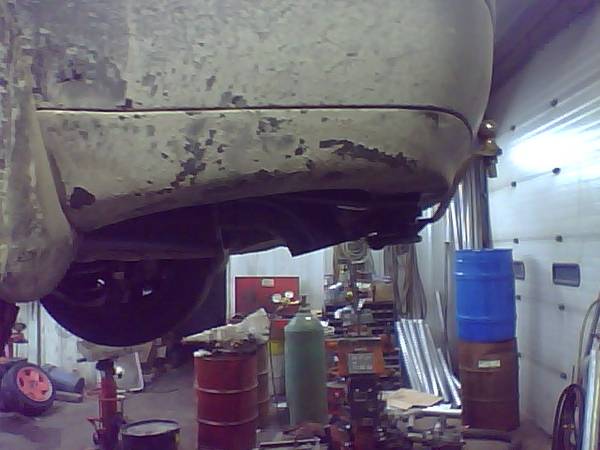

17FEB2008 - I finally got around to trying to get rid of the drone and ended up putting a 2nd muffler in. After 250+ miles, I think it's pretty much stock quiet now (which is really nice I must admit). I played around with 4-5 different tip arrangements and all it did was move the drone to another RPM or make it worse. The muffler is a 4" aftermarket one for a Powerstroke I think (8" OD x 24" Long). I pulled it back and up underneath the car so it is really inconspicous now. I've since painted it black instead of silver(ish) so you'd have to be looking for it to see it. I didn't mind the 4" tip (it definately raised some eyebrows and generated questions), but I really prefer the stealth look, and now sound as well. Pictures are not that good and the car is covered in salt (embarrassed).
[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]

EDIT - 07July2008 - In an effort to eliminate the very last rattle (in reverse under load like when backing a loaded trailer), I removed the AeroTurbine muffler and put a 4" pipe back in. So now it has the power stroke muffler in the OEM location only. It's a bit louder all around. Definately more coarse/throaty sound when on the throttle heavy, couple minor drones at higher revs, definately more turbo whistle. It's a touch louder when driving down the road on the cruise control and it's pulling a hill, but not enough for the significant other to notice. I might try and put the aero back in (needs to be ~1/2" lower) as I really liked the stock quiet sound, but will drive this for a while and see how it goes.

Side benefit of this is that the shutter that I've been fighting since the first of the year has all but disappeared!!! Not sure how/why, but when the muffler came out and the straight pipe went in, something is aligned/preloaded different and it is much better. This makes me think that I need more flex in the system, in all directions. I have the 3" bellows in the horizontal part (since it wouldn't fit in the downpipe) and I think I'll add more flex somewhere. Might try a piece of 4" flexible pipe like used on big trucks to see if it helps out before investing in a 4" bellows. - /EDIT The 4" flexible pipe is not flexible enough - it moves but you have to push it both ways unlike a bellows where you push it and it wants to come back to where it was

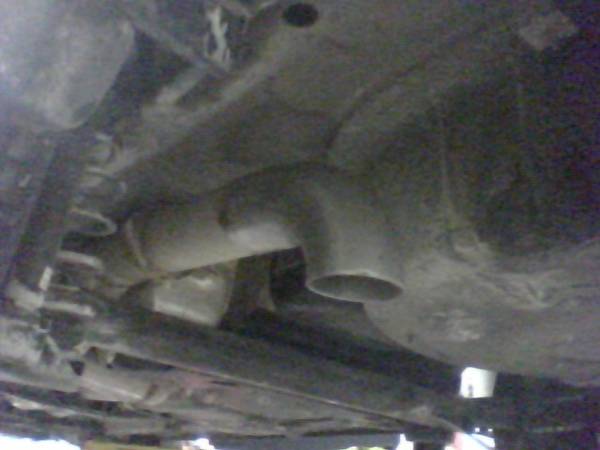

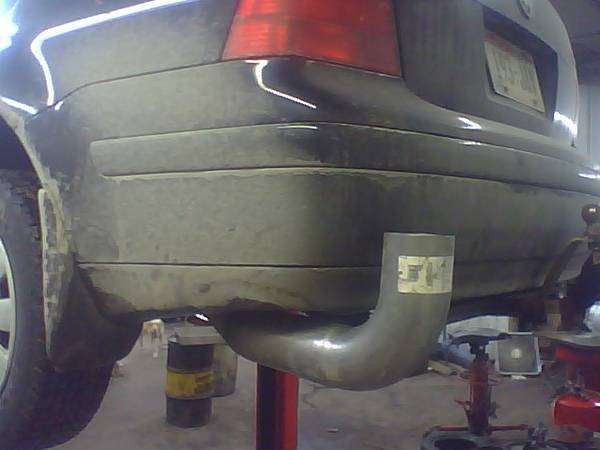

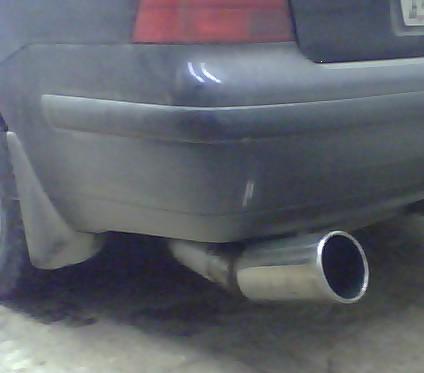

EDIT - 13 March 2010 - Must be getting older because the little drone/resonances I was getting at higher RPM's and under load while on the cruise control pulling a trailer were starting to bug me. I re-installed the 4040XL Aeroturbine muffler again in the OEM Cat location (like what's in the video above). The result is much quieter outside the car, a little quieter inside the car, drones are almost completely eliminated, pulling a trailer is much quieter, driving down the road is quieter as well. I might go out on a limb and say it's "OEM quiet"... No extra vibrations/rattles, etc which I was happy for. I'm using a longer 8" flex section (8" of actual flexable area) which I think helps as well as the flange on the turbo outlet which allows the engine to pivot and the exhaust to stay still which both should help vibrations and such. /EDIT

This made the drone worse
[IMG][/IMG]

This worked really well at killing the drone, but I thought the requisite rain cap would have pushed it over the edge (wink).
[IMG][/IMG]

This also got rid of the drone but was a touch more ricey than I was looking for
[IMG][/IMG]
__________________
03 Jetta, Cat 2u, DG Steel SP w/MOGolf Mod, 3"DP, 4"EXH, EaBP100 Bypass, Euroswitch, ECodes, Driving Light, PD Lift Pump, R520's, RC5,RC6, TDTuning, Malone, ScanGaugeII, 3" TIP, 2" TOP, HE221W Compounded with GTC1444VZ, 6 Bar MAP, VR6 MAF, Vented Fender Liner, Battery Cover Mod, 11mm, Monster Mats, 215/55/17 (27.9/53.0/75) Monthly MPG Links, Euro Trunk Latch, IDParts RSB, SDI or ALH Intake, ARL Ceramic Pistons, Rosten Rods, DRW, Wavetrac, SBC, FSD's, Beef Springs, Rebuilt Head, Recaro's, Colt II, DG Sigma 6, RMT200

Last edited by Fix_Until_Broke; March 17th, 2010 at 19:02.
Fix_Until_Broke is online now   Reply With Quote
Old April 2nd, 2007, 22:59   #2
larithmos
Veteran Member

Join Date: Feb 2004
Location: MN
TDI(s): 2002 Golf
Default

Bump.

Last edited by larithmos; April 22nd, 2009 at 21:05.
larithmos is offline   Reply With Quote
Old April 3rd, 2007, 07:01   #3
Scott02
Veteran Member

Join Date: Jan 2006
Location: near Youngstown, OH
TDI(s): Too Many
Fuel Economy: 51/45/41
Default

How the heck did you get 4" over the rear axle ?

People say getting three inch over it without hitting is a chore.
Scott02 is offline   Reply With Quote
Old April 3rd, 2007, 07:19   #4
BlakGolf
Veteran Member

Join Date: Oct 2005
Location: MTL canada
Default

u put it in a vise and u have it flat LOLOL
BlakGolf is offline   Reply With Quote
Old April 3rd, 2007, 10:01   #5
Fix_Until_Broke
Veteran Member

Fix_Until_Broke's Avatar

Join Date: Aug 2004
Location: Menomonee Falls, Wisconsin, USA
Fuel Economy: 75.0/53.0/38.4
Default

Did I mention that it's a cozy fit? And no - there is no putting it in a vice and flattening it.

Where it goes over the rear axle is near the pivot point, so that part of the axle only moves about 1/5 as far as the wheels do - that helps a lot. I had my trailer on it and was jumping on the coupling and couldn't make it hit the axle - must be far enough away?

After putting a 4" through there, I know I could get a 3" through there easily
__________________
03 Jetta, Cat 2u, DG Steel SP w/MOGolf Mod, 3"DP, 4"EXH, EaBP100 Bypass, Euroswitch, ECodes, Driving Light, PD Lift Pump, R520's, RC5,RC6, TDTuning, Malone, ScanGaugeII, 3" TIP, 2" TOP, HE221W Compounded with GTC1444VZ, 6 Bar MAP, VR6 MAF, Vented Fender Liner, Battery Cover Mod, 11mm, Monster Mats, 215/55/17 (27.9/53.0/75) Monthly MPG Links, Euro Trunk Latch, IDParts RSB, SDI or ALH Intake, ARL Ceramic Pistons, Rosten Rods, DRW, Wavetrac, SBC, FSD's, Beef Springs, Rebuilt Head, Recaro's, Colt II, DG Sigma 6, RMT200
Fix_Until_Broke is online now   Reply With Quote
Old April 3rd, 2007, 10:27   #6
delvi__acevedo
Mod'aholic

delvi__acevedo's Avatar

Join Date: May 2005
Location: Milford, PA ,USA
Default

pictures!!!!!!!!!!
__________________
2015 BMW X5 35d Msport
2015 BMW 535dx Msport
delvi__acevedo is offline   Reply With Quote
Old April 3rd, 2007, 10:28   #7
dabear95
Veteran Member

dabear95's Avatar

Join Date: Sep 2002
Location: Roseville, MI
Fuel Economy: 45+ lifetime
Default

Envisions drinking a soda with a garden hose (thick) straw...


But hey, why not!


Jason
__________________
2002 Golf GLS ~127K+ miles. I have Vag-Com...
Modifications: RC3 ASV, PP520, G60/VR6 Clutch, Koni FSD's, VDO Boost/EGT gauges, Boostvalve, HiddenHitch
dabear95 is offline   Reply With Quote
Old April 3rd, 2007, 19:44   #8
mannytranny
Veteran Member

mannytranny's Avatar

Join Date: Oct 2003
Location: CA
TDI(s): 02 Jetta
Default

The stock exhaust size on the Duramax is 3.5 inches.......

FWIW
mannytranny is offline   Reply With Quote
Old April 3rd, 2007, 20:36   #9
Fix_Until_Broke
Veteran Member

Fix_Until_Broke's Avatar

Join Date: Aug 2004
Location: Menomonee Falls, Wisconsin, USA
Fuel Economy: 75.0/53.0/38.4
Default

I edited the first post with some more observations - not pulling a trailer this time. Either it's gotten better or I've gotten used to it. Probably some of both.

I've got a digital camcorder I'll dig out this weekend and try to get some video/audio. The big challange for me will be getting it from the camcorder to the internet. I'll take any suggestions on how to do it - I've got a JVC GR DVM75U. At a minimum I'll get some digital pics to tide you over
__________________
03 Jetta, Cat 2u, DG Steel SP w/MOGolf Mod, 3"DP, 4"EXH, EaBP100 Bypass, Euroswitch, ECodes, Driving Light, PD Lift Pump, R520's, RC5,RC6, TDTuning, Malone, ScanGaugeII, 3" TIP, 2" TOP, HE221W Compounded with GTC1444VZ, 6 Bar MAP, VR6 MAF, Vented Fender Liner, Battery Cover Mod, 11mm, Monster Mats, 215/55/17 (27.9/53.0/75) Monthly MPG Links, Euro Trunk Latch, IDParts RSB, SDI or ALH Intake, ARL Ceramic Pistons, Rosten Rods, DRW, Wavetrac, SBC, FSD's, Beef Springs, Rebuilt Head, Recaro's, Colt II, DG Sigma 6, RMT200
Fix_Until_Broke is online now   Reply With Quote
Old April 3rd, 2007, 20:43   #10
Ed's TDI
Veteran Member

Ed's TDI's Avatar

Join Date: Jan 2001
Location: Victoria, BC, Canada
Fuel Economy: 5.7 / 5.1 / 4.5 L/100km
Default

Quote:
Originally Posted by dabear95
Envisions drinking a soda with a garden hose (thick) straw...


But hey, why not!


Jason
Nice comparison, but I was thinking more like trying to blow out a candle through a cardboard tube from a roll of paper towel.
__________________
First documented MK4 VNT20 Installation in North America!!
Done by JS Performance in Abbotsford, BC, Canada

Ed's TDI is offline   Reply With Quote
Old April 3rd, 2007, 20:44   #11
Ed's TDI
Veteran Member

Ed's TDI's Avatar

Join Date: Jan 2001
Location: Victoria, BC, Canada
Fuel Economy: 5.7 / 5.1 / 4.5 L/100km
Default

Quote:
Originally Posted by Fix_Until_Broke
I edited the first post with some more observations - not pulling a trailer this time. Either it's gotten better or I've gotten used to it. Probably some of both.

I've got a digital camcorder I'll dig out this weekend and try to get some video/audio. The big challange for me will be getting it from the camcorder to the internet. I'll take any suggestions on how to do it - I've got a JVC GR DVM75U. At a minimum I'll get some digital pics to tide you over
Post it up on Youtube.com
__________________
First documented MK4 VNT20 Installation in North America!!
Done by JS Performance in Abbotsford, BC, Canada

Ed's TDI is offline   Reply With Quote
Old April 3rd, 2007, 20:47   #12
Fix_Until_Broke
Veteran Member

Fix_Until_Broke's Avatar

Join Date: Aug 2004
Location: Menomonee Falls, Wisconsin, USA
Fuel Economy: 75.0/53.0/38.4
Default

Quote:
Originally Posted by mannytranny
The stock exhaust size on the Duramax is 3.5 inches.......

FWIW
Yeah - 30% more pipe area, and 28% of the mass airflow, shouldn't be a problem.

To put it in some perspective - I've always had a little puff of smoke on startup - about the size of a volleyball. With the stock size exhaust it was only a few tenths of a second. When I watched Al start it, it took almost a full second before the puff of smoke came out the exhaust after he started it.
__________________
03 Jetta, Cat 2u, DG Steel SP w/MOGolf Mod, 3"DP, 4"EXH, EaBP100 Bypass, Euroswitch, ECodes, Driving Light, PD Lift Pump, R520's, RC5,RC6, TDTuning, Malone, ScanGaugeII, 3" TIP, 2" TOP, HE221W Compounded with GTC1444VZ, 6 Bar MAP, VR6 MAF, Vented Fender Liner, Battery Cover Mod, 11mm, Monster Mats, 215/55/17 (27.9/53.0/75) Monthly MPG Links, Euro Trunk Latch, IDParts RSB, SDI or ALH Intake, ARL Ceramic Pistons, Rosten Rods, DRW, Wavetrac, SBC, FSD's, Beef Springs, Rebuilt Head, Recaro's, Colt II, DG Sigma 6, RMT200
Fix_Until_Broke is online now   Reply With Quote
Old April 3rd, 2007, 21:00   #13
Fix_Until_Broke
Veteran Member

Fix_Until_Broke's Avatar

Join Date: Aug 2004
Location: Menomonee Falls, Wisconsin, USA
Fuel Economy: 75.0/53.0/38.4
Default

Quote:
Originally Posted by Ed's TDI
Post it up on Youtube.com
Sorry - I needed to be a bit more specific. I need to get it from the camcorder to the computer - then I can give youtube a try or the TDIClub pics area. The camcorder has a USB connection, but that only works for digital pics stored on the SD card. The video is stored on 8mm tape. I think I'll "play" it on the television and record it with our DVR+DVD burner. I should then be able to take that DVD, put it in the computer and then upload it. Having never done any of this before - it may take me a few tries.
__________________
03 Jetta, Cat 2u, DG Steel SP w/MOGolf Mod, 3"DP, 4"EXH, EaBP100 Bypass, Euroswitch, ECodes, Driving Light, PD Lift Pump, R520's, RC5,RC6, TDTuning, Malone, ScanGaugeII, 3" TIP, 2" TOP, HE221W Compounded with GTC1444VZ, 6 Bar MAP, VR6 MAF, Vented Fender Liner, Battery Cover Mod, 11mm, Monster Mats, 215/55/17 (27.9/53.0/75) Monthly MPG Links, Euro Trunk Latch, IDParts RSB, SDI or ALH Intake, ARL Ceramic Pistons, Rosten Rods, DRW, Wavetrac, SBC, FSD's, Beef Springs, Rebuilt Head, Recaro's, Colt II, DG Sigma 6, RMT200
Fix_Until_Broke is online now   Reply With Quote
Old April 4th, 2007, 22:38   #14
jasonTDI

jasonTDI's Avatar

Join Date: Apr 2001
Location: Oregon, WI
Fuel Economy: 13.7 c, 12-15 towing hwy. 17-19
Default

I've heard it.

If that was the same one you had when you were at my place it's MEAN!
__________________
Jason, Service work available. www.jasonTDR.com
Give a hand,www.akitas.org
jasonTDI is offline   Reply With Quote
Old April 4th, 2007, 23:32   #15
Fix_Until_Broke
Veteran Member

Fix_Until_Broke's Avatar

Join Date: Aug 2004
Location: Menomonee Falls, Wisconsin, USA
Fuel Economy: 75.0/53.0/38.4
Default Have I got a suprise for you....

Quote:
Originally Posted by jasonTDI
I've heard it.

If that was the same one you had when you were at my place it's MEAN!
What you heard was the stock size with muffler and cat delete.

If that's MEAN, then I don't know what this is, cruel? sadistic? angry woman? evil? An adjective fails me.
__________________
03 Jetta, Cat 2u, DG Steel SP w/MOGolf Mod, 3"DP, 4"EXH, EaBP100 Bypass, Euroswitch, ECodes, Driving Light, PD Lift Pump, R520's, RC5,RC6, TDTuning, Malone, ScanGaugeII, 3" TIP, 2" TOP, HE221W Compounded with GTC1444VZ, 6 Bar MAP, VR6 MAF, Vented Fender Liner, Battery Cover Mod, 11mm, Monster Mats, 215/55/17 (27.9/53.0/75) Monthly MPG Links, Euro Trunk Latch, IDParts RSB, SDI or ALH Intake, ARL Ceramic Pistons, Rosten Rods, DRW, Wavetrac, SBC, FSD's, Beef Springs, Rebuilt Head, Recaro's, Colt II, DG Sigma 6, RMT200
Fix_Until_Broke is online now   Reply With Quote
