Default Where to mount Scan Guage II

I want to mount my scan guage and make it very vissable to me. I have tried a few places but nothing I'm 100% happy with, where are you guys mounting them?
__________________

2001 Jetta GL TDI 5spd

Build thread
http://forums.tdiclub.com/showthread.php?t=307477
AUGSX is offline   Reply With Quote
Old May 16th, 2007, 07:26   #2
HeAvYfUeL
Veteran Member

HeAvYfUeL's Avatar

Join Date: Oct 2005
Location: Gatineau,CAN
Fuel Economy: Fuelly signature --->
Default

Get some velcro at the hardware store and mount it on the steering column. Works great for me.
__________________
2009 Jetta Wagon Comfortline DSG ESP build 03/09 Graphite Blue
History:
2006 Golf TDI GLS/1992 Jetta 2.slow GL
HeAvYfUeL is offline   Reply With Quote
Old May 16th, 2007, 08:25   #3
Bradtholomew
Veteran Member

Bradtholomew's Avatar

Join Date: Nov 2006
Location: Peterborough, Ontario
Fuel Economy: 4.9 L/100km
Default

Got mine on the steering column with the supplied velcro. Not entirely happy with this location, but there's really no good spot that I can find...

Brad
__________________
2011 F-150 - 60,000kms. 3.5L Ecoboost, 4x4
2002 Golf GLS - 605,000kms. Titan 520's and Aligator
1988 Pontiac Fiero GT - 200,000kms. 3800 Series II supercharged/intercooled
1987 Pontiac Fiero GT - 125,000kms. 3800 Series III supercharged
Bradtholomew is offline   Reply With Quote
Old May 16th, 2007, 09:49   #4
Thunderstruck
Veteran Member

Thunderstruck's Avatar

Join Date: Feb 2004
Location: Chicago
Default

I've got a thin strip right above the radio in my car. If I can get a replacement piece for when I sell it, I'll cut a hole in it and run the wire up that way. The SG is too wide to actually nest in there, but I need to be able to get the wire into it through the back. Too bad, if the opening was about an inch larger it would go inside. If it works, I'll snap a pic. For now, mine is on the steering column, but it's a pain to reach the buttons.
__________________
Thunderstruck is offline   Reply With Quote
Old May 16th, 2007, 12:19   #5
doc_m
Veteran Member

doc_m's Avatar

Join Date: Dec 2002
Location: somwhere
TDI(s): None
Default



been happy with it here for me
__________________




Do work on cars like intake cleanings, nozzle swaps, brakes etc.... Hex usb + can now


2009 Jetta TDI Comfortline with ESP and beige leather interior. Evolution Imports Osiris Skidplate.

So far just over 10,200 kms on it


doc_m is offline   Reply With Quote
Old May 16th, 2007, 13:43   #6
jettawreck
Veteran Member

jettawreck's Avatar

Join Date: Aug 2004
Location: Northern Minnesota-55744
Fuel Economy: 52+ average lifetime '01
Default

I've got mine on the ashtray door cover (closed). Easy to see, kind of tough to select buttons-gotten used to it. Connected in the back port and stuff the cord into the joint between dash and counsel making it well hidden. Oh, it's in a 2001 Jetta.
jettawreck is offline   Reply With Quote
Old May 16th, 2007, 23:36   #7
doc_m
Veteran Member

doc_m's Avatar

Join Date: Dec 2002
Location: somwhere
TDI(s): None
Default

hmm well I tried this tonight as I was driving around getting my oldest to get to sleep, not to sure how much I like it but seems to be ok for the moment
__________________




Do work on cars like intake cleanings, nozzle swaps, brakes etc.... Hex usb + can now


2009 Jetta TDI Comfortline with ESP and beige leather interior. Evolution Imports Osiris Skidplate.

So far just over 10,200 kms on it


doc_m is offline   Reply With Quote
Old May 17th, 2007, 06:49   #8
Thunderstruck
Veteran Member

Thunderstruck's Avatar

Join Date: Feb 2004
Location: Chicago
Default

The problem with a mount like that is the warning about the heat from sunlight, othewise I would have done the same thing.
__________________
Thunderstruck is offline   Reply With Quote
Old May 17th, 2007, 14:34   #9
doc_m
Veteran Member

doc_m's Avatar

Join Date: Dec 2002
Location: somwhere
TDI(s): None
Default

found it kinda annoying so put it back to the original spot
__________________




Do work on cars like intake cleanings, nozzle swaps, brakes etc.... Hex usb + can now


2009 Jetta TDI Comfortline with ESP and beige leather interior. Evolution Imports Osiris Skidplate.

So far just over 10,200 kms on it


doc_m is offline   Reply With Quote
Old May 18th, 2007, 10:11   #10
AUGSX
Veteran Member

AUGSX's Avatar

Join Date: May 2007
Location: Miami, Fl.
Fuel Economy: 36 mostly city/ 43 best
Default

Thanks guys I have it sitting ontop of the steering column. Now I just have to play with front to back on the column for better visibility.
__________________

2001 Jetta GL TDI 5spd

Build thread
http://forums.tdiclub.com/showthread.php?t=307477
AUGSX is offline   Reply With Quote
Old May 18th, 2007, 10:26   #11
rotarykid
Veteran Member

rotarykid's Avatar

Join Date: Apr 2003
Location: Piedmont of N.C. & the plains of Colorado
Fuel Economy: 64 .1city @ 30-60 mph/ 52-53 @ 70-85 mph hyway ( 52 to just under 60 normal around town)on LSD
Thumbs up

Got mine nestled between my pyrometer on the left & boost gauge on the right sitting on top of my steering column . On the B4 Passat the OBD II plug is just above the car key on the column .
__________________
More diesels than I can list
rotarykid is offline   Reply With Quote
Old May 30th, 2007, 14:40   #12
quadboss74
Veteran Member

quadboss74's Avatar

Join Date: Mar 2004
Location: Chesapeake, VA
Fuel Economy: best: 48 mpg, worst 38, avg. 40
Default

This is the most visable spot, but works. Dash space is so limited, ya know? Couldn't put mine right above the radio since I have the cupholder there, so I moved my rear defrost button over to the left and velcroed it to the two empty buttons. I left the right most one off for the scan gauge rear connection.
__________________
2003 Golf TDI GLS silver 5 spd, Sprint 520s, TT 2.5" SS exhaust/DP, FSDs/Eibachs(Thanks G60ING!!), EGT/Boost/Oil Press. gauges, evo skidplate
quadboss74 is offline   Reply With Quote
Old June 2nd, 2007, 05:16   #13
Honeydew
Veteran Member

Join Date: Nov 2006
Location: Florida
Default

just ordered mine so I haven't tried this yet, but how about on that little mini-visor above the rear-view mirror? Cable might not be long enough to thread, though
Honeydew is offline   Reply With Quote
Old June 2nd, 2007, 06:13   #14
Fix_Until_Broke
Veteran Member

Fix_Until_Broke's Avatar

Join Date: Aug 2004
Location: Menomonee Falls, Wisconsin, USA
Fuel Economy: 75.0/53.0/38.4
Default

Quote:
Originally Posted by Honeydew
just ordered mine so I haven't tried this yet, but how about on that little mini-visor above the rear-view mirror? Cable might not be long enough to thread, though
That's where mine is - I'll post up some pics later today or tomorrow.

I took the screw out and turned the visor around so it flips down toward the windshield instead of down toward the mirror (hope that makes some sense?) then flipped the visor down and velcroed it to the part that screws to the head liner. This way the mini visor shades the SG from the sun. The only downside to this is that it's a little hard to read it since you're not looking at it straight on, but I think that's the case any where you mount it that far to the right of the driver. It's readable, just not quite as sharp/clear as it is straight on. I've had it here for a few days and like it. I got a 10 ft network patch cable and a female/female connector from RadioShack. I'm going to run the patch cable from the scangauge, under the headliner, down the A-pillar and to the OBD2 connector. The Scangauge cable will then be coiled up right there and plugged into the female/female connector and OBD2 port. This way I can still take it out easily for use in another vehicle without having to undo all of the hidden wiring.

It will fit up to the mini visor with the cable that comes with it, however you will have a cable running across the dash near the headlight switch and down to the OBD2 port.

Enough talk, needs pictures.

No good place to put it
[IMG][/IMG]

Final Install on mini-visor - looks same as trial install except cable is yellow
[IMG][/IMG]

Drivers Side Side View
[IMG][/IMG]

Passenger Side Side View
[IMG][/IMG]

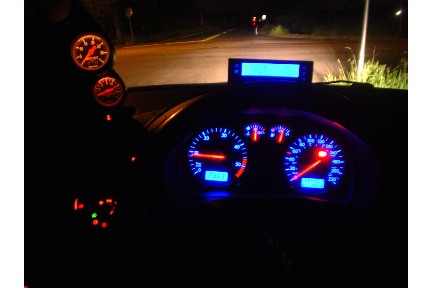

Night Time shot
