Go Back   TDIClub Forums > Meetings/ GTG/ Regional Discussions > Ontario

Ontario Local discussions for those in the Ontario, Canada area.

Reply

Thread Tools
Old March 29th, 2010, 05:58   #1
Brian B
Veteran Member

Join Date: Aug 2000
Location: Acton, Ontario, Canada
Fuel Economy: 3.7/5.1/6.5
Default Changing oil and Fuel Filters on 2006 Jetta

Is there any difference from changing these from a 2003 Jetta? I was going to give a friend a hand doing this but forgot his was a 2006 PD? I beleive.

Typically I just use my pella through the dipstick to do mine and same with fuel filter, just use pella to prime my fuel filter.

let me know
__________________
Brian B
Nehvrgoenbach
2003 Jetta Wagon TDI
GLI Lip, Tech9 Stage 1,
Autotech hollow rear sway bar, Aluminum Skid Plate
Ventectomy
Brian B is offline   Reply With Quote
Old March 29th, 2010, 13:07   #2
T_D_I_POWER
Veteran Member

T_D_I_POWER's Avatar

Join Date: Jun 2007
Location: Savannah. GA. USA - Toronto. ON. CANADA
Default

This is for the B5.5, but it s/b the same principal for other TDIs

For OC, I am an old school bottom drain believer. Hot oil flow faster with gravity and brings all the foreign materials with it
vs oil xtractor - against gravity - and oil has to be warmed not hot so it won't soften the plastic tubing.

I used the oil xtractor to remove excess oil in the OFH etc.

Don't forget to do this. The valvetrain, turbo bearing, hyd. lifters etc. will tank you for it.

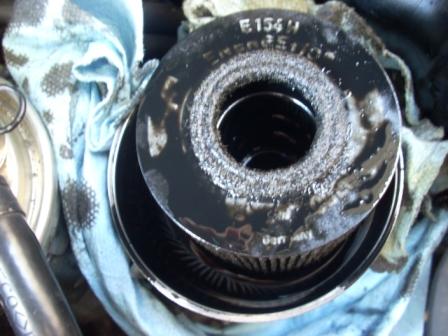

OF cap removed and OFH full of old oil

Pic.1

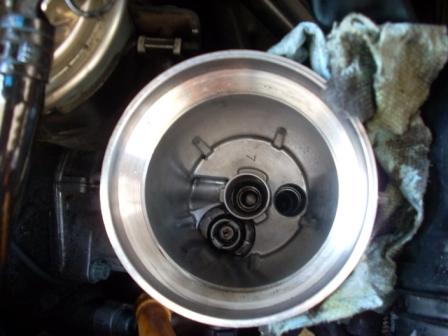

Old oil removed from OFH and completely cleaned. Anti-drain valve shown @ ~ 7 o'clock position
Oil will automatically drain to the crankcase as the OF cartridge/insert is removed

Pic.2

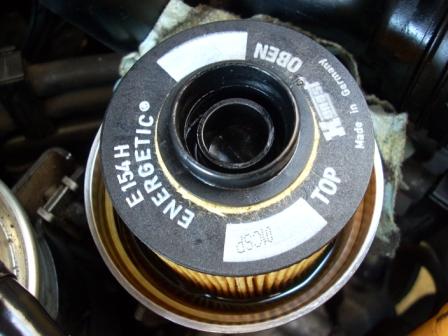

Insert filter, this will close the spring loaded anti-drain valve and add approx. 700 ml oil. This method is to replicate condition in pic.1 so no oil starvation to the valvetrain at first start. Better to pump oil than air to the valvetrain, turbo bearing, hyd. lifters no wear and tear.

Pic.3

Peace of mind. At first crank it pumps full oil not air to the valvetrain, hyd. lifters, turbo bearings etc.

Pic. 4

1st TO PREFILL OFH WITH OIL IN THE CLUB


FFC

Fill FF w/ Diesel fuel. Very easy to do, no leaks, no air bubles, no spills
no priming required, no EFP cycling & wear and tear, always starts the 1st time


Fill to the bottom of the T-Static hsg neck. Lightly lubricate T-Static O-rings w/ Diesel fuel
before re-installing T-Static valve. Peace of mind for the injectors at first start as it will
get dose of fresh Diesel fuel not air


1st TO PREFILL FF WITH DIESEL FUEL IN THE CLUB
__________________
//TDI POWER
2004 B5.5S

1st TO USE Mobil 1 ESP Formula M 5W-40 IN THE CLUB http://forums.tdiclub.com/showpost.p...56&postcount=9
1st TO PREFILL OFH/OFI INSTL W/ OIL IN THE CLUB http://forums.tdiclub.com/showpost.p...02&postcount=5
1st TO PREFIL FF W/ DIESEL FUEL IN THE CLUB http://forums.tdiclub.com/showpost.p...4&postcount=14


Last edited by T_D_I_POWER; March 29th, 2010 at 13:34.
T_D_I_POWER is offline   Reply With Quote
Old March 29th, 2010, 13:23   #3
oilhammer
Certified Volkswagen Nut Vendor

oilhammer's Avatar

Join Date: Dec 2001
Location: outside St Louis (where it's safe)
Fuel Economy: fantastic
Default

Quote:
Originally Posted by Brian B
Is there any difference from changing these from a 2003 Jetta? I was going to give a friend a hand doing this but forgot his was a 2006 PD? I beleive.

Typically I just use my pella through the dipstick to do mine and same with fuel filter, just use pella to prime my fuel filter.

let me know
Please disregard the above post, does not apply to your car.

The oil filter is different, similar arrangement but you will need a different socket for the top.

The fuel filter is completely different, and there are two different ones used on the BRM cars (if this car is in fact a BRM).

In either case, the fuel filter will require a Torx bit to remove the top part,you do not need to take any hoses off. And you can prime it easily by cycling the key on and off a few times.
__________________
oilhammer
www.cardocautomotive.com

Last edited by oilhammer; March 29th, 2010 at 14:08.
oilhammer is offline   Reply With Quote
Old March 29th, 2010, 14:02   #4
REDNECKDZL
Veteran Member

REDNECKDZL's Avatar

Join Date: Sep 2006
Location: Omemee
Default

How the heck did you get your OFH so bloody clean?
__________________
2001 JETTA TDI, EMT Powers Custom tune, VNT 17, PP 764, PD150 TIP, 2.5" SS turbo back, JOM coliovers
180 HP, 300 ft/lbs Double stock power objective acheieved, now I can stop spending money
REDNECKDZL is offline   Reply With Quote
Old March 29th, 2010, 14:24   #5
Jeff Heyerman
Veteran Member

Join Date: Apr 2007
Location: Oakville, ON
Default

Unless it's a 2006 PD Jetta wagon (mk iv) in which case it's all the same as the 2003... Except you can use the lift pump to fill the fuel filter before starting the car, rather than with mighty-vac.

Last edited by Jeff Heyerman; March 29th, 2010 at 14:28.
Jeff Heyerman is offline   Reply With Quote
Old March 29th, 2010, 16:08   #6
T_D_I_POWER
Veteran Member

T_D_I_POWER's Avatar

Join Date: Jun 2007
Location: Savannah. GA. USA - Toronto. ON. CANADA
Default

Quote:
Originally Posted by REDNECKDZL
How the heck did you get your OFH so bloody clean?
I used oil xtractor

Thanks
__________________
//TDI POWER
2004 B5.5S

1st TO USE Mobil 1 ESP Formula M 5W-40 IN THE CLUB http://forums.tdiclub.com/showpost.p...56&postcount=9
1st TO PREFILL OFH/OFI INSTL W/ OIL IN THE CLUB http://forums.tdiclub.com/showpost.p...02&postcount=5
1st TO PREFIL FF W/ DIESEL FUEL IN THE CLUB http://forums.tdiclub.com/showpost.p...4&postcount=14

T_D_I_POWER is offline   Reply With Quote
