Default 02 Allroad BHW swap w/ euro TDI 6MT



The Basics:

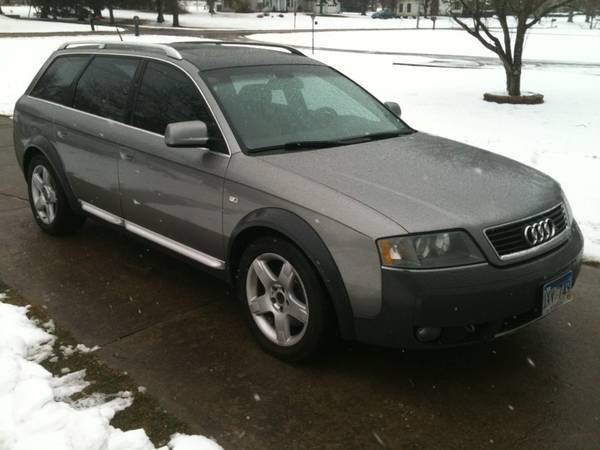

  • 2002 Audi Allroad (originally a 2.7biturbo auto)
  • Atlas Grey
  • Dark grey roof (matches the grey on the plastics)
  • ~181k miles on the chassis
  • Two tone heated leather seats front and rear
  • Rare 3rd row seating
Exterior additions:
  • Roof cross bars - several different brands/styles
  • Shorty antenna (clearance for long items like kayaks on roof)
  • 3300lbs rated trailer hitch - allroadhitch AT gmail DOT com
  • NEEDED: Evolution Alum Skid plate
  • NEEDED: HID headlights
Engine and Mods:
  • 150kmi BHW Engine pulled from a wrecked 05 Passat sedan
  • Stock Injectors
  • Stock gt1749va turbo
  • Stock Cam (not worn at all)
  • TDTuning Tune
  • Mods @ 181kmi/150kmi (Jan 2014)
    • New Steel Glowplugs
    • New timing belt and water pump kit
    • BSM Delete
    • EGR Cooler Delete
    • 2.5" Downpipe/Exhaust
Drivetrain and Mods:
  • Euro TDI 01E 6spd manual quattro transmission - Dutch Auto Parts
    • FTL code (find 1-6 ratios)
    • 3.889 final drive
  • Custom 01E clutch - Whitbread Performance
  • Rear end
    • EUT code - 3.889 ratio
  • Mods @ 181kmi/150kmi (Jan 2014)
    • Trans - New fluid, new axle seals, and out flange seal
    • Rear end - New fluid and new axle seals
Interior:
  • Allroad badged rubber mats
  • NEED: Gauges or Torque App
Rims & Suspension:
  • 17" stock 5 spoke rims with new Dunlop tires
  • Various other rim/tire sets for winter or a change of pace
  • Correctly operating stock air suspension
  • 8 pad HP2 dual piston front brakes
  • non-vented rear rotors (this will probably change)
Body Condition:
  • One small ding that caused the paint to crack on the passenger front door.
  • A few other very minor scratches here and there.
  • That's it! Super clean.
Issues:
  • Needs me to completely finish the swap!
Maintenance:
  • ...
__________________
2015 GSW DSG - 27kmi, Kerma engine tune
2011 JSW DSG - 160kmi, Malone DSG tune - Buyback done
03 Jetta Wagon TDI 5MT - 175kmi, 2.5"F 2"R lift, 215/75r15 tires, self tuned
02 allroad TDI 6MT - 150kmi, current project, getting a BSM deleted BHW and euro TDI geared 01E quattro
