Go Back   TDIClub Forums > TDI Model Specific Discussions Areas > VW MKIV-A4 TDIs (VE and PD)

VW MKIV-A4 TDIs (VE and PD) This is a general discussion about A4/MkIV Jetta (99.5-~2005), Golf(99.5-2006), and New Beetle(98-2006). Both VE and PD engines are covered here.

Reply

Thread Tools
Old May 23rd, 2020, 17:16   #1
afterthisnap
Member

Join Date: Jul 2012
Location: Mountain West
Default ALH Wagon with high pinion Dana 60 full-floater.

In case my fellow rednecks ever wondered, it fit just fine without the knuckles .






Moog wagon springs and Koni orange shocks feeling the load:

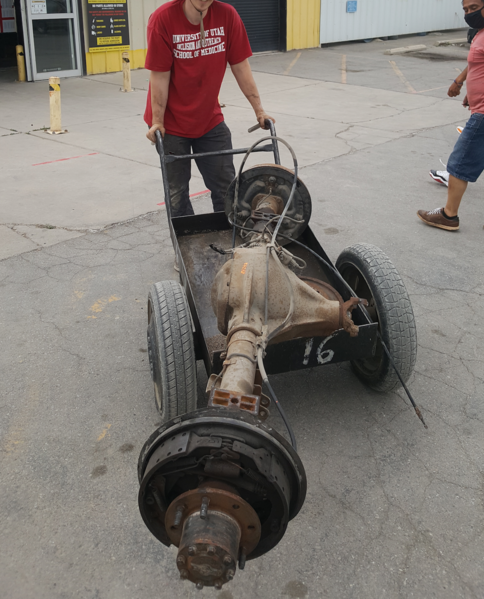

The sister rear full-floater Dana 70-U only fit after the rear hatch trim sacrificed itself for a necessary 3"

Last edited by afterthisnap; May 24th, 2020 at 11:40. Reason: Cropped photos.
afterthisnap is offline   Reply With Quote
Old May 23rd, 2020, 21:05   #2
Nero Morg
Veteran Member

Nero Morg's Avatar

Join Date: Oct 2017
Location: OR
Default

Oh lord. What's sad is I'd probably do this too, been looking for another Ford king pin Dana 60.
__________________
Whatever. Just use your darned blinker. And stay off your phone.
Nero Morg is offline   Reply With Quote
Old May 24th, 2020, 07:16   #3
mjydrafter
Veteran Member

mjydrafter's Avatar

Join Date: Jul 2015
Location: dsm, ia
Default

Are the Springs towing rated or standard?


Signed,

guy with Konis and towing springs.


Reading the title I was thinking "man, there is going to be some serious fabrication in here..." LOL
mjydrafter is offline   Reply With Quote
Old May 24th, 2020, 10:41   #4
Nero Morg
Veteran Member

Nero Morg's Avatar

Join Date: Oct 2017
Location: OR
Default

Quote:
Originally Posted by mjydrafter View Post
Reading the title I was thinking "man, there is going to be some serious fabrication in here..." LOL
Same! I was actually hoping to see a monster wagon with a Dana 60 welded up front!
__________________
Whatever. Just use your darned blinker. And stay off your phone.
Nero Morg is offline   Reply With Quote
Old May 24th, 2020, 11:32   #5
afterthisnap
Member

Join Date: Jul 2012
Location: Mountain West
Default

Quote:
Originally Posted by mjydrafter View Post
Are the Springs towing rated or standard?
Moog 81005, I don't think they're officially rated as towing springs, but they definitely stink-bugged the butt end of the wagon when I first installed them.
Admittedly, the rear-sag/front-porpoiseing with the 60 is mostly a result of bad weight distribution. That plastic tote in the first post has fullsize rotors/hubs/brakes spare joints/Spare Us/Yokes and probably exceeds 200 lbs on it's own. There was also an ancient Forney cabinet welder jammed in there. Both were behind or over the rear wheels, thus contributing to the squat.
In contrast, the D70-U was a lot heavier on it's own, likely more than the 60 with accessories and the welder:

Without disassembling the 70 the weight was better spread out over the rear cargo area as the pumpkin rests just behind the rear seats.

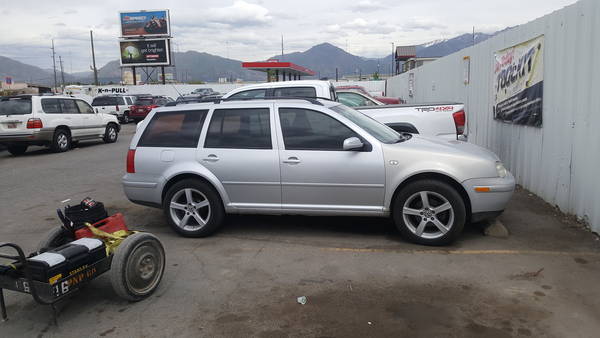

Unloaded ALH Mule:

Gravid with Dana 70-U:



Addendum for some light reading, via Lugnut 4x4:
"The typical 14 bolt axle weighs about 550 pounds. Since there are many different variations of Dana 60 and 70 axles, we can’t give those axles a certain weight. However, a rear Dana 60 axle usually weighs about 400 pounds, a front Dana 60 will weigh about 500 lbs, and the Dana 70 is similar in weight to the 14 bolt.

The 14 bolt axle and the Dana 70 weigh more partly because they have 3.5″ axle tubes, which are slightly larger than the 3 3/8″ tubes found on many Dana 60s."

Last edited by afterthisnap; May 24th, 2020 at 15:43.
afterthisnap is offline   Reply With Quote
Old May 24th, 2020, 19:42   #6
[486]
Veteran Member

Join Date: Mar 2014
Location: St.Paul, MN
TDI(s): 02 golf ALH
Fuel Economy: 42 stock, 47-49 now
Default

you can fit a 55gal barrel in a golf, sitting upright if you take the spare out
also, you can fit 8' lumber in a golf, and 10' in a jetta, just take out the passenger seat
[486] is offline   Reply With Quote
Old May 26th, 2020, 05:02   #7
PakProtector
Veteran Member

Join Date: Jan 2014
Location: AnnArbor, MI
Default

D70-U? With 3.08 gears? Did you leave the Cummins? Has it the 4-pinion Powr-Lok dual clutch diff?
cheers,
Douglas
__________________
1990 D250, NV5600, Luk 05-101, 16cm housing, TST Kit KDP tab, 366 spring, Powr-Lok'd 3.07, HX35...IC soon
She wasn't built to travel at the speed a rumour flies

2004 Jetta, 5spd...stock and turning 47-48mpg
PakProtector is offline   Reply With Quote
Old May 27th, 2020, 15:57   #8
afterthisnap
Member

Join Date: Jul 2012
Location: Mountain West
Default

Quote:
Originally Posted by PakProtector View Post
D70-U? With 3.08 gears? Did you leave the Cummins? Has it the 4-pinion Powr-Lok dual clutch diff?
cheers,
Douglas

D70-U2, 4:10s, it was a V10+automatic, yes on the 4 pinion carrier but the Power-Loc is getting swapped for a Detroit.


Last edited by afterthisnap; May 28th, 2020 at 03:42.
afterthisnap is offline   Reply With Quote
