Time to contact Franko6. You can replace one piston as long as the rod is not bent. If it is, then a new rod is in order. You must check the new rod against the others for length. All 4 pistons should have the same protrusion above the block. Pistons and rods should be the same weight +/- very little.

Head should be rebuilt. I suggest calling Franko6.
__________________
Quote:
Originally Posted by Big Mike View Post
........"Everybody has a plan until they get punched in the face." -- philosopher Mike Tyson.
aja8888 is offline   Reply With Quote
Old April 13th, 2013, 15:23   #32
turbocharged798
Veteran Member

turbocharged798's Avatar

Join Date: May 2009
Location: Ellenville, NY
Fuel Economy: 40-50mpg
Default

Quote:
Originally Posted by turbocharged798 View Post
wow, the only things that can cause no compression would be a dropped valve or a cracked pistons.

That's odd.
Don't mean to brag but I hit the nail on head on this one.

If the bore is good and the rod isn't bent, hone the cylinder and drop in a new piston.
__________________
99.5 Black Jetta TDI; DLC1019 nozzles, G60/VR6, ASV .5mm pistons, EGR delete, ASR/EDL, bilstein TCs MFA cluster.. Beater car. 365K miles and climbing.
99.5 Red Jetta TDI. Saved from the crusher. 270K
04 Jetta TDI .MFA cluster, reverse light mod, bilstein TCs 200K.
turbocharged798 is offline   Reply With Quote
Old April 13th, 2013, 15:55   #33
newlitemotorist
Veteran Member

Join Date: Jan 2013
Location: Indiana
Default

I would like to see what the rest of that piston looks like. Looks like you have a pit on the bottom outer edge (this is where your head gasket was leaking) which might be much worse down the side of the piston. It definitely looks like a bad head gasket at least started your problems.

What is interesting is that my number 4 cylinder was the one that failed and the other people who have had head gasket issues with the bhw...that I have read about...also had their head gasket fail in the number 4 cylinder. Interesting trend.

Have you had a chance to look over the cylinder head? There will be some valves open as long as you have the cam in there by the way.

Last edited by newlitemotorist; April 13th, 2013 at 16:09.
newlitemotorist is offline   Reply With Quote
Old April 13th, 2013, 16:38   #34
Chrismak
Veteran Member

Chrismak's Avatar

Join Date: Dec 2005
Location: Brewster, NY
Default

Well Thunder nailed it, anything off the top shelf, Jameson only :-).

Have to try and keep a sense of humor with this. Yep the head has some pitting on that cylinder. Interesting observation on the #4 cylinder as regards the head gasket leaking.

[URL=http://s285.photobucket.com/user/mcglock910/media/image_zps56d34d11.jpg.html]



Whats this worth with a diagnosis like this. It has the Balance shaft done new cam around 175k. Stage 2 rocketchip. Timing belt water pump etc at 212k. Jason did a lot of earlier work.

[URL=http://s285.photobucket.com/user/mcglock910/media/image_zps76e22c4b.jpg.html]
__________________
A man with an experience is NEVER at the mercy of the man with an argument.
B5 2005 Pasatt GLS. Chainless @128K TDI-Tuning 2.0, 5 speed swap, DUK gearbox, valeo clutch and flywheel imported 1.9TDI. VAG com available, Skid plate.
Chrismak is offline   Reply With Quote
Old April 13th, 2013, 18:59   #35
newlitemotorist
Veteran Member

Join Date: Jan 2013
Location: Indiana
Default

It almost looks like you have a crack between the exhaust valve and the injector nozzle...it may well not be the case but it sure looks like it.

As far as value...fair market value with everything accounted for, minus the cost for parts and labor on the repairs needed. Might just need a refreshed head and a piston but it also might need a lot more. If the head *IS* warped what did that do to your new cam??? There are a lot of things to consider with your situation.
newlitemotorist is offline   Reply With Quote
Old April 13th, 2013, 20:27   #36
TDIJetta99
Veteran Member

TDIJetta99's Avatar

Join Date: May 2005
Location: Port Jervis, New York, USA
Fuel Economy: low 38, high 61, avg 48
Default

That piston has foreign object damage on it too, as well as the head.. All those little dings and dents are from something getting in there.. It probably didn't have anything to do with the cracked piston, but something was bouncing around in there for a few seconds..


If you feel like you're in over your head with putting a piston(s) in it, I do have a truck and trailer LOL...
__________________
Taking on some work here and there.. Contact me for your needs.. Can do emissions testing friendly ALH tunes on most setups, even swaps. best way to contact is text or email tdijetta99@gmail.com
TDIJetta99 is offline   Reply With Quote
Old April 13th, 2013, 21:18   #37
Ski in NC
Veteran Member

Join Date: Jul 2008
Location: Wilmington, NC USA
Fuel Economy: 48-52 typical
Default

There's a chunk missing from that cracked piston, right above the ring, visible in one of the photos. That's probably what caused the dings.
__________________
2001 Jetta TDI 5sp Stock 201k mi
1981 Rabbit IDI 4sp Sold at 339k mi
1990 S-10 4.3 4wd 5sp 154k mi
1986 VW Pathfinder 1.6 45hp Marine 4700 Hrs
2001 Cummins 8.3 420hp Marine 1660Hrs..REFIT DONE!!
Ski in NC is offline   Reply With Quote
Old April 14th, 2013, 00:51   #38
thundershorts
Veteran Member
Default

I think its engine time...short block from vw is about 2500 and a recon head, or here is one not too far away

http://www.copart.com/c2/homeSearch....SEARCH_RESULTS

I never had good things happen replacing just one piston and when you see what 4 pistons cost, you.ve bought a short block. I kind of figured you might encounter something major, and I think it takes less time to pull eng/trans than pulling the head. it might be worth looking over the copart car as its not badly toasted, so you might be able to hear it run. A couple grand and you'll have lots of extra parts.
__________________
"You can't argue with a fool..."
thundershorts is offline   Reply With Quote
Old April 14th, 2013, 00:57   #39
thundershorts
Veteran Member
Default

a better one but you'll need it hauled to you

http://www.copart.com/c2/homeSearch....SEARCH_RESULTS
__________________
"You can't argue with a fool..."
thundershorts is offline   Reply With Quote
Old April 14th, 2013, 04:56   #40
turbocharged798
Veteran Member

turbocharged798's Avatar

Join Date: May 2009
Location: Ellenville, NY
Fuel Economy: 40-50mpg
Default

You can rebuild the engine for what you would pay for shipping and feels alone on that car.
__________________
99.5 Black Jetta TDI; DLC1019 nozzles, G60/VR6, ASV .5mm pistons, EGR delete, ASR/EDL, bilstein TCs MFA cluster.. Beater car. 365K miles and climbing.
99.5 Red Jetta TDI. Saved from the crusher. 270K
04 Jetta TDI .MFA cluster, reverse light mod, bilstein TCs 200K.
turbocharged798 is offline   Reply With Quote
Old April 14th, 2013, 06:09   #41
Chrismak
Veteran Member

Chrismak's Avatar

Join Date: Dec 2005
Location: Brewster, NY
Default

I was just foin back to when I had broken glow plug issue and couldn't recall if it was in #3 or #4.

Well guess what it was #4?
So that may explain some of the pitting on cylinder and head if the tip had fallen of and got
Pulverized and blown out your ear.


So that would lead me to believe that the pitting may be old. Not saying it didn't weaken the piston but look at the date on this.
Jason PM me with your number until we see whats the best way to go with this .
__________________
A man with an experience is NEVER at the mercy of the man with an argument.
B5 2005 Pasatt GLS. Chainless @128K TDI-Tuning 2.0, 5 speed swap, DUK gearbox, valeo clutch and flywheel imported 1.9TDI. VAG com available, Skid plate.
Chrismak is offline   Reply With Quote
Old April 14th, 2013, 10:21   #42
newlitemotorist
Veteran Member

Join Date: Jan 2013
Location: Indiana
Default

I would look for a used short block or long block if you find one and have your preferred mechanic go through it. I saw a bhw short block on ebay selling for 800...This is just a reference for price. If your block is still usable, I have seen two bhw cylinder heads recently here on the boards selling for 400 ish obo so you could get this thing fixed at a cost which makes keeping the car worth it. If funds permit, you might think about swapping in a 5 speed manual as well.
newlitemotorist is offline   Reply With Quote
Old April 14th, 2013, 10:36   #43
TDIJetta99
Veteran Member

TDIJetta99's Avatar

Join Date: May 2005
Location: Port Jervis, New York, USA
Fuel Economy: low 38, high 61, avg 48
Default

There's nothing wrong with the cylinder head.. They almost all have small cracks between the glow plug hole and one of the valve seats.. It's non-critical..

If the #4 cylinder wall looks good, one piston and some assorted bolts and gaskets and it'll be like new again..

If the cyliner wall is no good, a used shortblock with the geared BSM and whatnot transferred over from the existing one will do the trick..
__________________
Taking on some work here and there.. Contact me for your needs.. Can do emissions testing friendly ALH tunes on most setups, even swaps. best way to contact is text or email tdijetta99@gmail.com
TDIJetta99 is offline   Reply With Quote
Old April 14th, 2013, 17:25   #44
Ski in NC
Veteran Member

Join Date: Jul 2008
Location: Wilmington, NC USA
Fuel Economy: 48-52 typical
Default

I vote for a mere piston replacement, too. As long as cylinder wall is in reasonable shape after a quick hone.
__________________
2001 Jetta TDI 5sp Stock 201k mi
1981 Rabbit IDI 4sp Sold at 339k mi
1990 S-10 4.3 4wd 5sp 154k mi
1986 VW Pathfinder 1.6 45hp Marine 4700 Hrs
2001 Cummins 8.3 420hp Marine 1660Hrs..REFIT DONE!!
Ski in NC is offline   Reply With Quote
Old April 15th, 2013, 13:58   #45
Chrismak
Veteran Member

Chrismak's Avatar

Join Date: Dec 2005
Location: Brewster, NY
Default

The bore in the block seems Ok.



I'm just going to replace the one piston.

NURAL Part # 87139520 Single piston set; Includes 1 Piston w/ Piston Rings, Pin and Retainer (where applicable) Bore [mm]: 81.000; Bolt [mm]: 26; Compression Height [mm]: 45.830; Bolt length [mm]: 65.8; Recess Depth [mm]: 17.500; Valve Pocket Depth [mm]: 0.700; Production Number: 07901D834; Piston Chamber Volume [ccm]: 23.30 (Only 3 Remaining) Size: Standard

http://www.rockauto.com/catalog/catalog.php

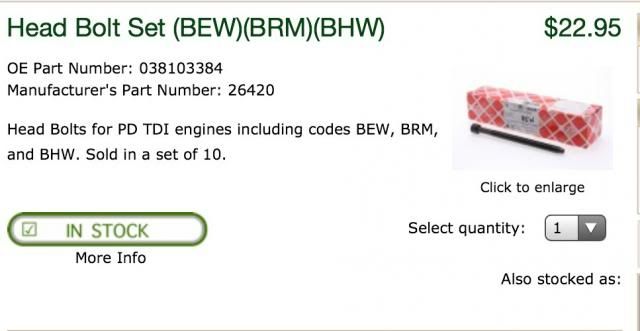

On the head bolts, has anyone used the cheaper set here. These are stretch bolts and the last thing I need is one of these to break off when torquing.

This is from ID parts.[IMG]


The cheaper set.

[IMG][/IMG]
__________________
A man with an experience is NEVER at the mercy of the man with an argument.
B5 2005 Pasatt GLS. Chainless @128K TDI-Tuning 2.0, 5 speed swap, DUK gearbox, valeo clutch and flywheel imported 1.9TDI. VAG com available, Skid plate.
Chrismak is offline   Reply With Quote
