Default Rear View Camera Install

I have a 2013 Passat TDI SE Roof Nav with the RNS315 headunit.
Kit was from Bold Sport and I followed many of the tutorials and grabbed what I thought were the best of all the writeups.
Basically the process is as follows...
1. Take license plate off - not sure if this is absolutely necessary but I did
2. Remove the trunk upper liner cover - remove the 2 torx screws in the pull down recesses and yank like hell - half of my clips stayed in the trunk and had to be yanked out with pliers and slid back into the holders in the liner cover.
3. Remove the 2 X 10mm bolts that hold the trunk handle plate in place and pull the plate out of the way, you can leave the plug in place for now.
4. The Handle will come out from inside the trunk to the exterior if that makes sense, the new handle goes in from the outside of the vehicle.
5. Remove the wire harness from the handle and plug it into the new handle. Push the new handle back into its opening and replace the plate and 10mm nuts.
6. I made the 3 electrical connections necessary in the trunk. The power, reverse light trigger and ground. The more complex connection was the power which I connected to the trunk light on the passenger side wall towards the rear of the car. I made the ground connection to the passenger side tail light plug with a tap and I made the reverse light trigger connection to the drivers side tail light plug with a tap. I should mention that the power connection was soldered, taped and shrunk wrapped - highly recommended to use an Add A Fuse here.
7. You need to remove the trunk hinge cover on whatever side you want to work on. I chose the passenger side since feedback was that it was less crowded to run all the wires. You need to run the power wire and the video cable up whatever trunk hinge you decide. You can see there is a channel molded into the cover where the wires run so there is not a lot of room.
8. Now it is time to work at the front of the passenger compartment. Remove the trim surrounding the radio.
9. Remove the radio 4 X torx 20 nuts (might be larger but 20 worked for me)
10. Plug the video cable into the back of the radio - it is obvious where it goes.
11. I removed the side dash cover on the passenger side and with the radio out you can see where the video cable needs to go...I used a coat hanger to help or any official fish tape will do.
12. Now basically you just fish the cable down the kick panel, under the door sills, and up along the rear wheel well (from the inside). You dont need to necessarily remove all the trim pieces - just enough to work the cable through. Use patience and it is not that bad.
13. Run the video cable along the power wire from the trunk light up the hinge. Now the troubling grommet. So what I did was pop out the grommet and with a razor blade slice from the outside to the center of it and placed the video cable and power wire there and popped the grommet back in.
14. Replace the hinge cover ensuring the wires are all in the channel
15. Now - before the rest of the trim is put back and the radio fully re-installed it is time to break out VAGCOM.
VCDS
Open VCDS, Select control module
Select 37-Navigation
Click on Coding-07
Click Long Coding Helper
click on byte 3 (it is the 4th window from left....color will change from green to yellow)
checkmark Bit 6 (Rear-View-Camera(RVC) installed/active)
click exit to get back to prior window
Click Do It!
Coding Accepted, click OK
16. Fire up the car and put 'er in reverse for some rear view camera goodness! If everything works put all your trim and stuff back on permanently.
Power connection

Ground wire

Reverse light trigger wire

Trunk hinge passenger side

Voila

A special shout out to mpistone from the other board as I borrowed most heavily from his post.
A last thought - it is not wise to take on such a project without a multimeter. There has been mention of the proper color of wires for power, trigger etc..although one universal thing - to Germans Brown is ALWAYS ground. One last quick check for power with a multimeter can save a lot of headaches.
All in all not too bad - took just a little under 2 hours from start to cleanup.
Oh yeah...one final final thought...dont forget to take the protective cap off the camera lens...
dc2002 is offline   Reply With Quote
Old January 13th, 2015, 01:06   #2
heykw
Veteran Member

heykw's Avatar

Join Date: May 2008
Location: Orlando FL
TDI(s): fleet
Default

You have a link to the place you purchased the camera kit at?
__________________

01 VW Golf TDI new south gauges 5spd RC5 EGR gone w/ ventectomy, Evo skid plate, south bend stage 3 with 17lb flywheel pp764 17/22 turbo.
2012 TDI SEL P.O.S.
120k miles timing belt replaced at 100K
heykw is offline   Reply With Quote
Old January 13th, 2015, 02:50   #3
BarryT82
Veteran Member

Join Date: Mar 2010
Location: Charleston, WV
Default

I've purchased two of these kits and they both work great.
http://www.ebay.com/itm/160931801027?redirect=mobile
BarryT82 is offline   Reply With Quote
Old January 13th, 2015, 09:34   #4
jrm
Veteran Member

Join Date: Jul 2013
Location: Brightwood, Oregon
Fuel Economy: 42/52
Default

Does that also work with the 315?
__________________
2013 Passat TDI SE+NAV 48MPG
2001 Honda civic 40MPG
1985 VW idi 1.6 Golf 55MPG http://www.youtube.com/watch?v=yo-YUR1_DaU
1996 Dodge mechanical Cummins 12V 2500 4x4 that gets 20MPG
1990 Toyota xcab 4x4 3.0 v6 (3.slow) 15MPG
jrm is offline   Reply With Quote
Old January 13th, 2015, 09:43   #5
BarryT82
Veteran Member

Join Date: Mar 2010
Location: Charleston, WV
Default

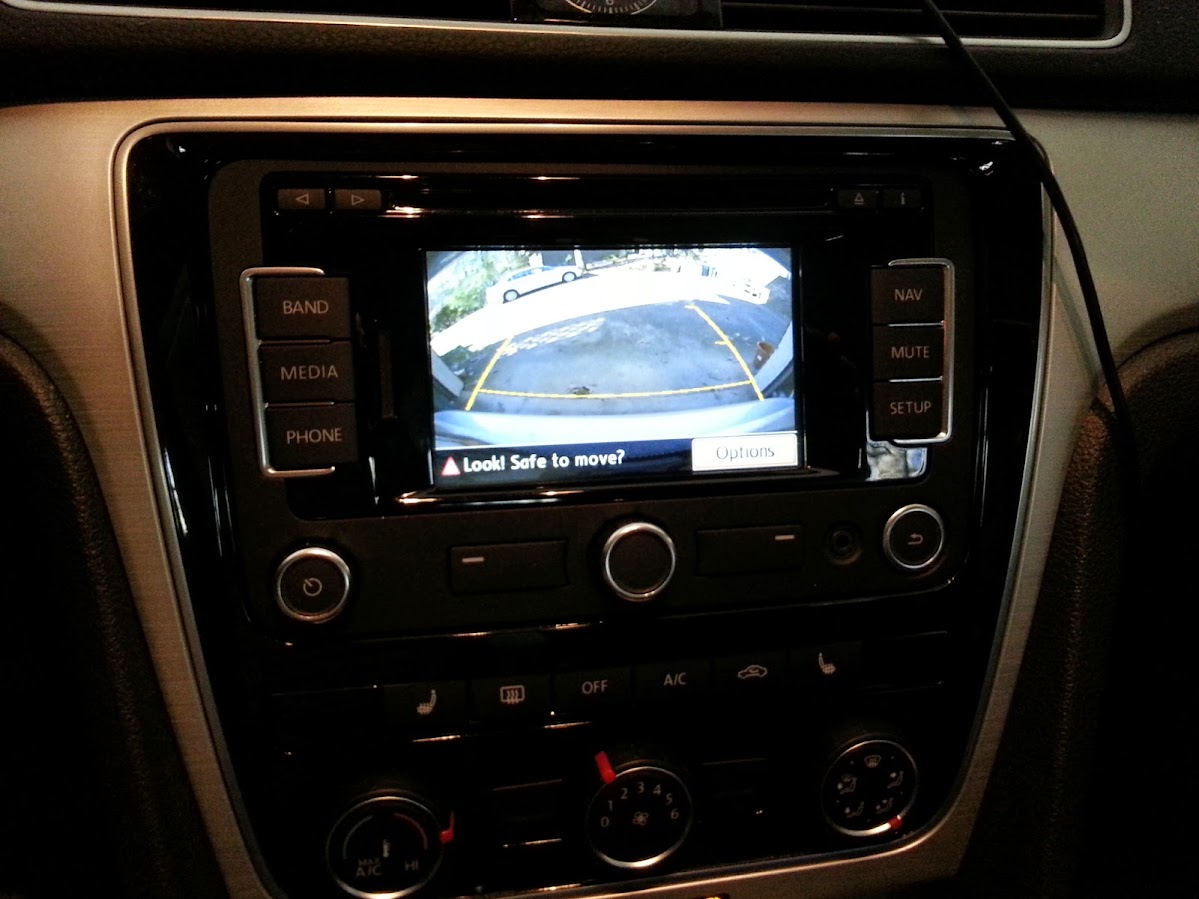

Yes. The 315 has a backup camera input. The picture above is with an RNS-315.
BarryT82 is offline   Reply With Quote
Old January 13th, 2015, 16:26   #6
heykw
Veteran Member

heykw's Avatar

Join Date: May 2008
Location: Orlando FL
TDI(s): fleet
Default

Thanks Barry what radio do I have in a 2012 passat sel?
Quote:
Originally Posted by BarryT82 View Post
I've purchased two of these kits and they both work great.
http://www.ebay.com/itm/160931801027?redirect=mobile
__________________

01 VW Golf TDI new south gauges 5spd RC5 EGR gone w/ ventectomy, Evo skid plate, south bend stage 3 with 17lb flywheel pp764 17/22 turbo.
2012 TDI SEL P.O.S.
120k miles timing belt replaced at 100K
heykw is offline   Reply With Quote
Old January 13th, 2015, 19:23   #7
BarryT82
Veteran Member

Join Date: Mar 2010
Location: Charleston, WV
Default

Quote:
Originally Posted by heykw View Post
Thanks Barry what radio do I have in a 2012 passat sel?
I have a '13 Passat SEL. The SEL's all come with the RNS-510. My '12 Tiguan has the 510 also and I added the camera to it. I had an '11 JSW with an RNS-315 that I added this camera to.
BarryT82 is offline   Reply With Quote
Old February 10th, 2017, 09:50   #8
jrm
Veteran Member

Join Date: Jul 2013
Location: Brightwood, Oregon
Fuel Economy: 42/52
Default

Finally getting around to this, regarding picking up power from the trunk light? Is it "hot" all the time? The camera came with enough wire to reach the battery posts if needed.
__________________
2013 Passat TDI SE+NAV 48MPG
2001 Honda civic 40MPG
1985 VW idi 1.6 Golf 55MPG http://www.youtube.com/watch?v=yo-YUR1_DaU
1996 Dodge mechanical Cummins 12V 2500 4x4 that gets 20MPG
1990 Toyota xcab 4x4 3.0 v6 (3.slow) 15MPG
jrm is offline   Reply With Quote
Old February 11th, 2017, 13:42   #9
jrm
Veteran Member

Join Date: Jul 2013
Location: Brightwood, Oregon
Fuel Economy: 42/52
Default

All installed, works perfect except now I get a airbag error- when routing the cable I had a heck of a time getting past the B pillar anyone know if there is a side impact sensor hiding in there? I thought I was snagged up on the seatbelt anchor- maybe not
__________________
2013 Passat TDI SE+NAV 48MPG
2001 Honda civic 40MPG
1985 VW idi 1.6 Golf 55MPG http://www.youtube.com/watch?v=yo-YUR1_DaU
1996 Dodge mechanical Cummins 12V 2500 4x4 that gets 20MPG
1990 Toyota xcab 4x4 3.0 v6 (3.slow) 15MPG
jrm is offline   Reply With Quote
Old February 11th, 2017, 19:13   #10
BarryT82
Veteran Member

Join Date: Mar 2010
Location: Charleston, WV
Default

Did you turn the power in the car on with the airbag light on the center console disconnected? If so, that's the issue and you'll need to clear the code.
BarryT82 is offline   Reply With Quote
Old February 11th, 2017, 20:24   #11
jrm
Veteran Member

Join Date: Jul 2013
Location: Brightwood, Oregon
Fuel Economy: 42/52
Default

(updated- that worked! It had a open ground error on airbag disabled light) OMG YES- thank you for this awesome news I owe ya a beer or three! I used one of my clear syphon hoses to route the camera coax down from the kick panel to the rear seat wheel well, it was very ridged (cold) and curly so as it hung up I just twisted it and it moved on down the line further- did this for about 10 minutes and it poked its way out of the rear sill, sprayed the inside of the hose with silicone and pushed the coax inside the hose- when the coax reached the rear seat I pulled the house out- worked perfect with almost zero interior panel removal required---- I just took a peek with my bore scope and I spotted 2 side impact sensors- one at the rear of the rear door and another exactly where it hung up at the B pillar- the coax goes between the yellow plug and that tiny 28G wiring, I will clear those in the AM and report back!
__________________
2013 Passat TDI SE+NAV 48MPG
2001 Honda civic 40MPG
1985 VW idi 1.6 Golf 55MPG http://www.youtube.com/watch?v=yo-YUR1_DaU
1996 Dodge mechanical Cummins 12V 2500 4x4 that gets 20MPG
1990 Toyota xcab 4x4 3.0 v6 (3.slow) 15MPG

Last edited by jrm; February 11th, 2017 at 21:23.
jrm is offline   Reply With Quote
Old February 12th, 2017, 16:42   #12
Jesse_James
Member

Jesse_James's Avatar

Join Date: Mar 2003
Location: Stamford, Connecticut
Fuel Economy: 46 mpg auto
Default Can I install a backup camera in this head unit?

I have a 2012 Passat SEL. Here is a photo of the radio/head unit. Does anyone know what model this is and if I can install the back up camera kit into it?

I could not figure how to upload a small image of my own radio so it's the same radio as in this Edmonds webpage,

https://www.edmunds.com/volkswagen/p...interface.html

Jesse Parris
__________________
2012 Passat SEL TDI 46 mpg
2007 MB E320 BlueTec 36 mpg
2007 MB Sprinter TD 22 mpg
1986 Isuzu Trooper T/D 22 mpg
2008 Arctic Cat 700 Diesel
Jesse_James is offline   Reply With Quote
Old February 13th, 2017, 17:39   #13
redbarron55
Veteran Member

Join Date: Jul 2010
Location: Satsuma, Alabama
Default

The first picture is of a RNS-510 and it has an input for the camera.
You will have to use the VCDS to enable the camera
redbarron55 is offline   Reply With Quote
Old February 14th, 2017, 08:27   #14
Jesse_James
Member

Jesse_James's Avatar

Join Date: Mar 2003
Location: Stamford, Connecticut
Fuel Economy: 46 mpg auto
Default

redbarron55, thanks. Can I still use the same kit as BarryT82? I don't want to post the link Barry posted because people will think I'm pushing the auction, but it's a few posts up. I have a friend with the VagComm setup.

Jesse
__________________
2012 Passat SEL TDI 46 mpg
2007 MB E320 BlueTec 36 mpg
2007 MB Sprinter TD 22 mpg
1986 Isuzu Trooper T/D 22 mpg
2008 Arctic Cat 700 Diesel
Jesse_James is offline   Reply With Quote
Old February 14th, 2017, 09:58   #15
BarryT82
Veteran Member

Join Date: Mar 2010
Location: Charleston, WV
Default

Yes, you can use the kit I used. It's cheaper now
http://www.ebay.com/itm/OEM-Parking-...EAAOSwUKxYetMY
BarryT82 is offline   Reply With Quote
