Default DIY 12v Constant Power Outlet MOD

Did you ever wish that your Passat had a 12V constant outlet? Like for charging your dead phone while in a meeting, or plugging your battery tending solar panel into? This is a simple way to get your factory outlets to be 12V positive even with the key off.

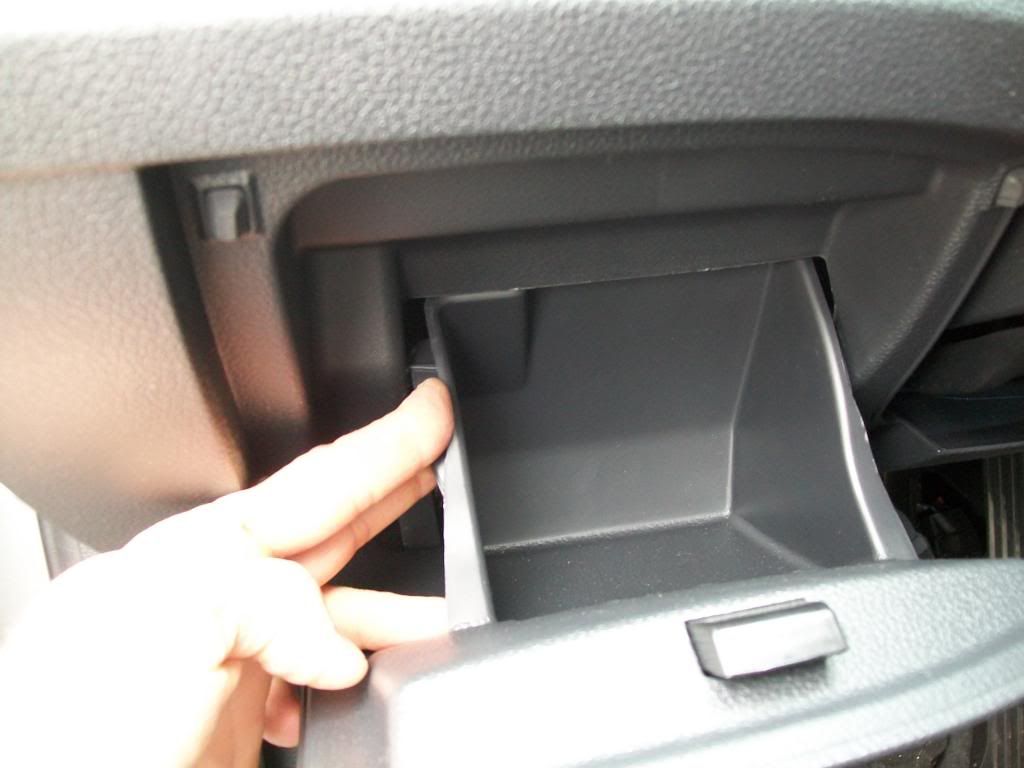

First of all remove this tray by pressing inwards on both sides while maintaining opening pressure. When it releases, simply open it all the way down and pull it off the hinges.

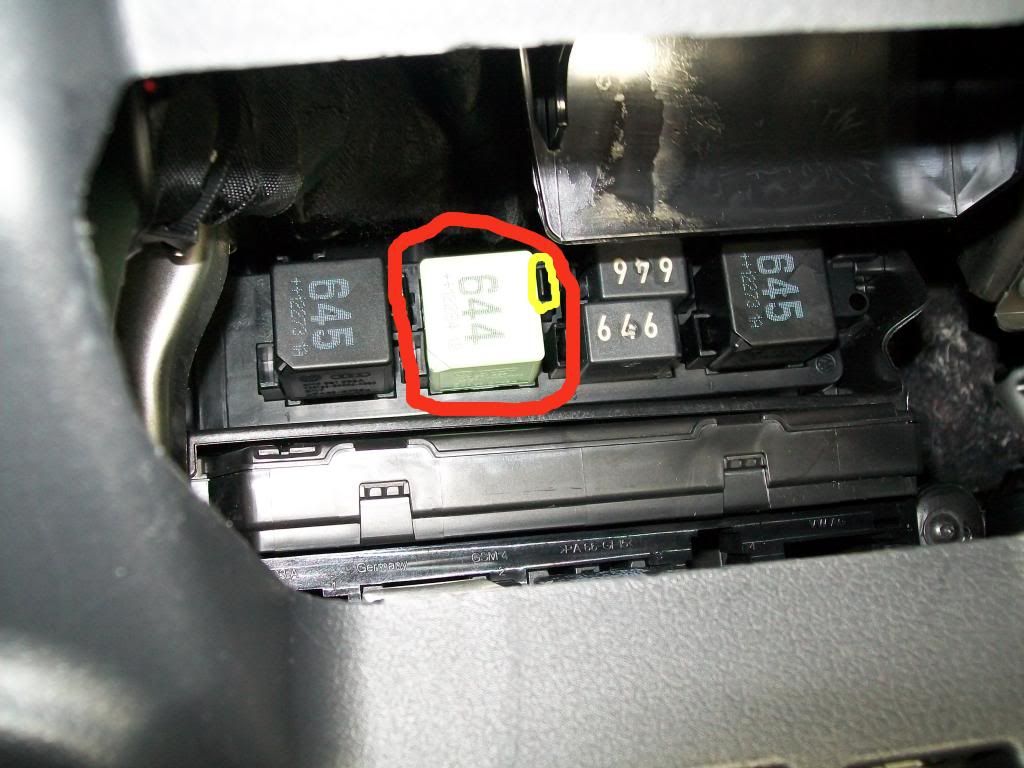

Next you want to shine the light up into the cavity at the back of this drawer and locate the yellow (or greenish) relay (circled in red) with the number 644 on it. pull this relay out by releasing the lock tab (circled in yellow)

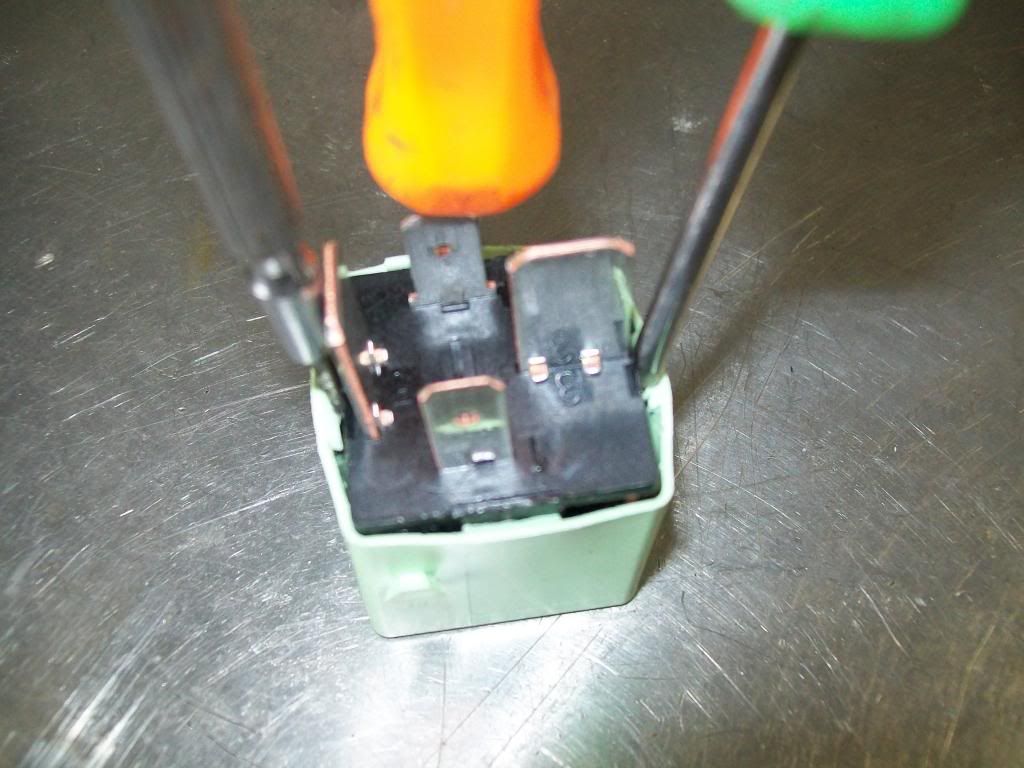

Next you need to open the relay up.

Then check out how the contacts inside the relay work and place an object (I used an electrical terminal) in it to hold the contacts together.

Snap the relay back together and enjoy your "always on" 12V outlets. This retains a fully fused circuit and an OEM look. Below is a pic of the fuse for this circuit.


ENJOY!!!!!
__________________
http://www.dieseldubs.com

2010 JSW DSG, GTB2260VK + injectors + fuel system ++++++

Last edited by DieselDubs83; April 24th, 2013 at 14:38.
DieselDubs83 is offline   Reply With Quote
Old April 24th, 2013, 15:18   #2
JARED_LA
Veteran Member

Join Date: Dec 2011
Location: Baton Rouge
Default

Thanks! This is much needed!
JARED_LA is offline   Reply With Quote
Old April 24th, 2013, 16:08   #3
Lightflyer1
Veteran Member

Lightflyer1's Avatar

Join Date: Sep 2005
Location: Round Rock, Texas
Default

Which outlet(s) does this energize?
__________________
My build thread:
http://forums.tdiclub.com/showthread.php?t=448086

Lightflyer1 is offline   Reply With Quote
Old April 24th, 2013, 16:12   #4
DieselDubs83

DieselDubs83's Avatar

Join Date: Jul 2011
Location: Mount Pleasant Mills, PA
Default

The one in the front "hidden compartment" and the one under the armrest.

-Les
__________________
http://www.dieseldubs.com

2010 JSW DSG, GTB2260VK + injectors + fuel system ++++++
DieselDubs83 is offline   Reply With Quote
Old April 24th, 2013, 16:22   #5
Lightflyer1
Veteran Member

Lightflyer1's Avatar

Join Date: Sep 2005
Location: Round Rock, Texas
Default

Excellent! Thanks for the DIY!
__________________
My build thread:
http://forums.tdiclub.com/showthread.php?t=448086

Lightflyer1 is offline   Reply With Quote
Old April 24th, 2013, 20:23   #6
Jav9882
Veteran Member

Jav9882's Avatar

Join Date: Mar 2012
Location: Brownsville,Texas USA
Fuel Economy: 38-42 MPG at 70 MPH
Default

Nice! Finally someone figures this out. Just one question, will this drain the battery's hen the vehicle is off and the outlet is not in use?
Jav9882 is offline   Reply With Quote
Old April 24th, 2013, 20:32   #7
compu_85
Gadget Guy

compu_85's Avatar

Join Date: Sep 2003
Location: Springfield VA
Default

No it won't drain the battery down.

-J
__________________
Present:
2013 Fiat 500e. 9,000 miles. Almost 100 miles per charge!
2012 Passat SE TDI DSG. 110,000 miles. Factory Alarm, LED tails, Memory Seat, HIDs 38/48 MPG.
2004 Touareg V10 TDI. 165,000 miles.
99.5 Jetta "GLX" TDI. 310,000 miles. Half way there!!! Power Memory Seats, HIDs 11mm pump, BV39 Turbo, RCIII 36/47 MPG.
1991 Mercedes 350SDL 230,000 miles, 70,000 on engine. 18/27 MPG.
Past:
1988 Audi 5000S Quattro, 1992 Jetta ECOdiesel, 1991 Jetta ECOdiesel.

Check out the official TDIClub Chat Room!
Quote:
Originally Posted by BRUSSELS BELGIAN View Post
Maybe I should pay MYSELF to do bad work on my car!
compu_85 is offline   Reply With Quote
Old April 24th, 2013, 23:34   #8
vw_norm
Gone, but not forgotten.

Join Date: Jul 2012
Location: Hawaii
Default

Nice mod. I would be concerned that the terminal wedged in there would/might/will loosen and fall out, since the coil will continue to energize each time the car is on and release when turned off, and over time this slight movement can affect the placement of the terminal. Then you got a rattle to deal with. A dab of 5 minute epoxy would hold it in place. Better yet would be to solder a 12 gauge wire jumper across the contacts.

DieselDubs83 - Thanks for the tip on removing the relays. i was trying to remove my aux relays to move some wires around and just couldn't seem to release it. Does the lock tab move out to release or in towards the relay? TIA.

You may affect the battery charge state if you left something plugged in for an extended period without running the car, but that would be an extreme case.
__________________
vw_norm is offline   Reply With Quote
Old April 24th, 2013, 23:43   #9
DieselDubs83

DieselDubs83's Avatar

Join Date: Jul 2011
Location: Mount Pleasant Mills, PA
Default

That tab is moved away from the relay to release it.

I understand the concern on coming loose. This was on a customers car and he wanted to be able to return to stock should he need to. Make sure that it is wedged tight enough to eliminate any movement when energized. I would probably hot glue mine as it would hold well and yet still remove easily.

-Les
__________________
http://www.dieseldubs.com

2010 JSW DSG, GTB2260VK + injectors + fuel system ++++++
DieselDubs83 is offline   Reply With Quote
Old April 25th, 2013, 05:58   #10
TDI2000Zim
Veteran Member

TDI2000Zim's Avatar

Join Date: Jul 2010
Location: NJ
Fuel Economy: 0.0 mpg
Default

That simple?

Cool!!!!!!!!!!

Now, why hasn't VW thought of this...?

My guess is that VW's corporate board is 'too conservative' (think of lawyers and bean counters, instead of engineers).
TDI2000Zim is offline   Reply With Quote
Old April 25th, 2013, 06:04   #11
compu_85
Gadget Guy

compu_85's Avatar

Join Date: Sep 2003
Location: Springfield VA
Default

?? no they designed it to be switched from the beginning.

-J
__________________
Present:
2013 Fiat 500e. 9,000 miles. Almost 100 miles per charge!
2012 Passat SE TDI DSG. 110,000 miles. Factory Alarm, LED tails, Memory Seat, HIDs 38/48 MPG.
2004 Touareg V10 TDI. 165,000 miles.
99.5 Jetta "GLX" TDI. 310,000 miles. Half way there!!! Power Memory Seats, HIDs 11mm pump, BV39 Turbo, RCIII 36/47 MPG.
1991 Mercedes 350SDL 230,000 miles, 70,000 on engine. 18/27 MPG.
Past:
1988 Audi 5000S Quattro, 1992 Jetta ECOdiesel, 1991 Jetta ECOdiesel.

Check out the official TDIClub Chat Room!
Quote:
Originally Posted by BRUSSELS BELGIAN View Post
Maybe I should pay MYSELF to do bad work on my car!
compu_85 is offline   Reply With Quote
Old April 25th, 2013, 07:39   #12
Jav9882
Veteran Member

Jav9882's Avatar

Join Date: Mar 2012
Location: Brownsville,Texas USA
Fuel Economy: 38-42 MPG at 70 MPH
Default

I'm definitely doing this today!
Jav9882 is offline   Reply With Quote
Old April 25th, 2013, 10:54   #13
kjclow
Veteran Member

Join Date: Apr 2003
Location: Charlotte, NC
Fuel Economy: 55 max / 44 avg on beetle ~37 on JSW
Default

Wonder if this would work on the JSW to have the 110v outlet always hot? Be great for camping trips when you need to charge things.
__________________
2010 silver/black JSW TDI with DSG, 2011 red Golf TDI with dsg, 2003 red/gray Passat 1.8l gasser
kjclow is offline   Reply With Quote
Old April 25th, 2013, 10:56   #14
charley654
Veteran Member

Join Date: Apr 2009
Location: Central Texas
Default

will this relay mod energize other electrical circuits that otherwise would be OFF with the key?
charley654 is offline   Reply With Quote
Old April 25th, 2013, 11:00   #15
DieselDubs83

DieselDubs83's Avatar

Join Date: Jul 2011
Location: Mount Pleasant Mills, PA
Default

Quote:
Originally Posted by charley654 View Post
will this relay mod energize other electrical circuits that otherwise would be OFF with the key?
In testing this circuit there are no other components on it. This is a single relay and single fuse (30A) circuit. The only things on this circuit are the tow outlets.

-Les
__________________
http://www.dieseldubs.com

2010 JSW DSG, GTB2260VK + injectors + fuel system ++++++
DieselDubs83 is offline   Reply With Quote
