Default Installing a Boost Gauge Questions

Hi All,

I want to install a manual boost gauge on my 2003 Jetta TDI. My question is, where is the best place to tap the engine for the tube that will run to the gauge?

Thanks...Jeff
eddi887 is offline   Reply With Quote
Old April 10th, 2018, 06:24   #2
mjydrafter
Veteran Member

mjydrafter's Avatar

Join Date: Jul 2015
Location: dsm, ia
Default

I have a PD, but they are similar enough. I tapped into the plastic elbow/runner that is in between the intercooler and the ASV/EGR.

I think ALH's have the same or a similar runner.
mjydrafter is online now   Reply With Quote
Old April 10th, 2018, 07:10   #3
h4vok
Veteran Member

h4vok's Avatar

Join Date: Feb 2017
Location: Denver (ex MN)
Fuel Economy: 35 to 50
Default

I took the plastic intake piece off between the turbo and intercooler that goes between your fuel filter and the engine. I used clamp removers that are cable operated to get the the clamp on the intercooler under the head light. You will want this too to save a headache. Then I just drilled a hole that was smaller than the nipple I was putting on and manually screwed it in to make the treads. Then sealed the outside with silicone and made sure there was no plastic shavings in the intake tube. THESE
__________________
DLC520, Mufflerectomy, tuned, more linked below
My car thread

h4vok is offline   Reply With Quote
Old April 10th, 2018, 08:12   #4
20IndigoBlue02
Veteran Member

20IndigoBlue02's Avatar

Join Date: Aug 2001
Location: Was North NJ, now SoCal
Default

Quote:
Originally Posted by eddi887 View Post
Hi All,

I want to install a manual boost gauge on my 2003 Jetta TDI. My question is, where is the best place to tap the engine for the tube that will run to the gauge?

Thanks...Jeff
Where most people tapped it on the ALH, the plastic pipe that goes from the intercooler to the EGR.
__________________
2016 Tiguan SE 4Motion
20IndigoBlue02 is offline   Reply With Quote
Old April 10th, 2018, 09:48   #5
hugho
Member

Join Date: Feb 2018
Location: NW wyoming
Fuel Economy: 52.3 on first tank
Default Boost gauge location

Quote:
Originally Posted by 20IndigoBlue02 View Post
Where most people tapped it on the ALH, the plastic pipe that goes from the intercooler to the EGR.
Why does everyone seem to want to tap into the plastic rather than the aluminum intake or egr housing?
hugho is offline   Reply With Quote
Old April 10th, 2018, 09:59   #6
Nevada_TDI
Veteran Member

Join Date: Aug 2008
Location: Reno, sort of...
Default

I will say the location I chose in the plastic pipe coming out of the intercooler had so much turbulence it did not pick up the boost pressure. I tapped mine into the radiator side of the intake manifold next to the head.
__________________
_______________
2001 Jetta GL TDI, Tinted, Ventectomy, Catectomy, EGR-ectomy, TDTuning, HIFLO .216's, Stealth 17/56 Garrett, VCDS Hex+CAN, South Bend Daily Driver 2 Clutch, DG Short Shifter, Frostheater, Baldwin Fuel Filter, Previous Diesel: 1983 Rabbit Diesel
Nevada_TDI is offline   Reply With Quote
Old April 10th, 2018, 10:03   #7
flee
Veteran Member

Join Date: Sep 2011
Location: Chatsworth, CA
Fuel Economy: 40-ish
Default

Quote:
Originally Posted by hugho View Post
Why does everyone seem to want to tap into the plastic rather than the aluminum intake or egr housing?

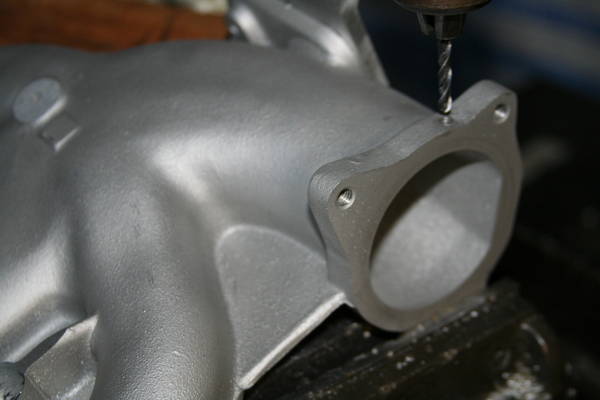

Exactly. The flange on the intake manifold where the EGR attaches is nice and thick and readily accessible.
Shorter, neater hose run, too.

In this example I used a 10-32 to 1/8" hose barb fitting. Perfect size for a gauge.
__________________
2002 Jetta GLS TDI wagon
flee is offline   Reply With Quote
Old April 10th, 2018, 10:06   #8
mjydrafter
Veteran Member

mjydrafter's Avatar

Join Date: Jul 2015
Location: dsm, ia
Default

Quote:
Originally Posted by flee View Post
Exactly. The flange on the intake manifold where the EGR attaches is nice and thick and readily accessible.
Shorter, neater hose run, too.

In this example I used a 10-32 to 1/8" hose barb fitting. Perfect size for a gauge.
Did you remove the intake to add a boost gauge? I like it, but that is a lot of work.
mjydrafter is online now   Reply With Quote
Old April 10th, 2018, 10:10   #9
flee
Veteran Member

Join Date: Sep 2011
Location: Chatsworth, CA
Fuel Economy: 40-ish
Default

Quote:
Originally Posted by mjydrafter View Post
Did you remove the intake to add a boost gauge? I like it, but that is a lot of work.
No, this was part of a major upgrade. It can be done on the car with hand tools.
__________________
2002 Jetta GLS TDI wagon
flee is offline   Reply With Quote
Old April 10th, 2018, 20:37   #10
wonneber
Veteran Member

Join Date: Oct 2011
Location: Monroe, NY, USA
Default

Quote:
Originally Posted by hugho View Post
Why does everyone seem to want to tap into the plastic rather than the aluminum intake or egr housing?
I tap'd into the intake near the cylinder 4 runner.
Did it while I was cleaning it.
Only thing the gauge buzzed when I took off for a bit then quieted down,
After a month the noise went away.
They sell a 'filter' to eliminate it.
I think the buzzing was caused by the air pulsing into cylinder 4.
Closer to the EGR might be better. (mjydrafters picture above)
Mounted the gauge on the column on the left side.
If I was going to tap at the intake entry on the car I would stuff a lightly greased rag in the intake to catch the shavings.
Just remember to remove it.

Last edited by wonneber; April 10th, 2018 at 20:42.
wonneber is offline   Reply With Quote
Old April 11th, 2018, 07:19   #11
20IndigoBlue02
Veteran Member

20IndigoBlue02's Avatar

Join Date: Aug 2001
Location: Was North NJ, now SoCal
Default

Quote:
Originally Posted by hugho View Post
Why does everyone seem to want to tap into the plastic rather than the aluminum intake or egr housing?
Because it's easy and it works just fine. Yes, there is a lot of turbulent air, but turbos and intercoolers by nature makes the air turbulent. Turbulent air means better heat transfer into the intercooler metal itself.

Intake manifold is fine, provided the EGR function is deleted (or reduced), because the buildup will render the port useless. The plastic piping is pre-EGR, no soot+oil buildup to worry about.

The "filter" is just a very tiny EDM'd hole. The response of the boost gauge is slower, but you don't get the "pinging" noise on a VDO gauge.

Quote:
Originally Posted by mjydrafter View Post
Did you remove the intake to add a boost gauge? I like it, but that is a lot of work.
Quote:
Originally Posted by flee View Post
No, this was part of a major upgrade. It can be done on the car with hand tools.
That's an ARL (PD150) intake manifold.
__________________
2016 Tiguan SE 4Motion
20IndigoBlue02 is offline   Reply With Quote
Old April 11th, 2018, 15:25   #12
mjydrafter
Veteran Member

mjydrafter's Avatar

Join Date: Jul 2015
Location: dsm, ia
Default

I installed an aquarium air valve in my boost line. Just screw it in a bit and see if it makes noise. I got lucky, the first try worked fine. If it didn't I am certain my $7 boost gauge would make noise.
mjydrafter is online now   Reply With Quote
Old April 12th, 2018, 15:17   #13
VIPNiSS
Newbie

Join Date: Feb 2018
Location: Atlanta
TDI(s): MK4
Default

This is how I installed my boost gauge.. I drilled in to the plastic intercooler pipe and ran the line thru a grommet in firewall to gauge.

https://prodaconsultingb-my.sharepoi...7iP2Q?e=O0Ihjw

https://prodaconsultingb-my.sharepoi...dxNig?e=nbch7J
VIPNiSS is offline   Reply With Quote
Old April 16th, 2018, 05:48   #14
eddi887
Newbie

Join Date: Jul 2017
Location: Dale Texas
TDI(s): 2003 Jetta
Fuel Economy: 37mpg
Default

I want to thank you all for the responses. I have read that most people do put it in the plastic runner, but was concerned that it would eventually come out, as plastic is not the most stable material.lol

I have a spare intake, which I was planning on cleaning to replace the one that is on the car now, so tapping it would be easy enough.

Flee, how long have you had your boost gauge installed? Any issues with buildup that would cause a malfunction of the gauge?

Thanks again...Jeff
eddi887 is offline   Reply With Quote
Old April 16th, 2018, 10:32   #15
hugho
Member

Join Date: Feb 2018
Location: NW wyoming
Fuel Economy: 52.3 on first tank
Default Boost gauge location

Quote:
Originally Posted by eddi887 View Post
Hi All,

I want to install a manual boost gauge on my 2003 Jetta TDI. My question is, where is the best place to tap the engine for the tube that will run to the gauge?

Thanks...Jeff
I took off the egr valve and tapped into the top of the aluminum manifold.
