Default The Dietzl Mod

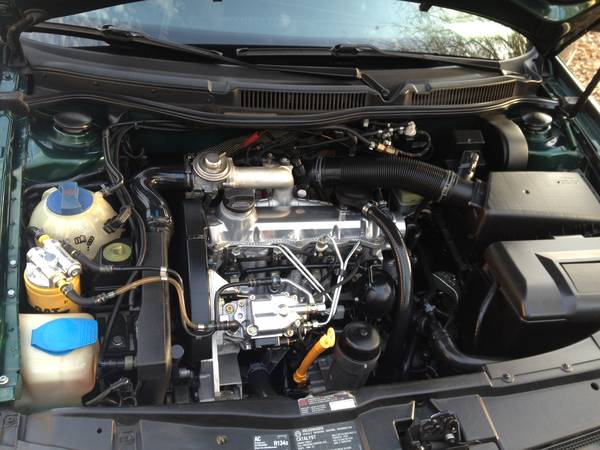

I call this the Dietzl mod. The idea was inspired from a little project DanG144 was working on.

Here is a little more economical Cat 2 Fuel Filter housing, $36.00 from Napa, or Discount Fleet Supply for $19.00. Just trim the mount area off.



Edit : Filter Base Napa # 4770 , or Wix 24770

Here is the filter housing fitting and Napa part number. The fittings are made by Gates, and are $1.83 each including tax.

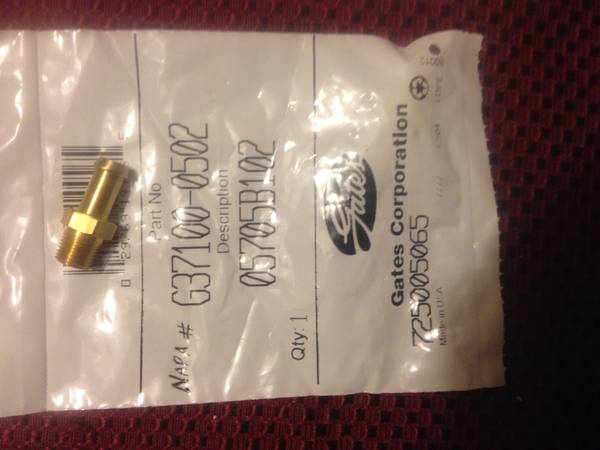

Here is the adapter fitting with the hose nipple

Here is Discount Fleet Supply's web site.
http://www.google.com/url?sa=t&rct=j...CQHRYEh-gJ8OvA
__________________
2K jetta gl tdi 5spd 398k, RC5+, 17/22, PP764's, ported head, ARP head studs, 11mm, 3" turbo back, Kerma OMI, PD150IT & race pipe, VR6 air box & MAF, Godspeed SMIC, 3 bar map, PD lift pump, 681 fift, TT LCA's, spindles, brakes, GLI rear brakes and interior, VR6 axles, mcnalley boost/egt gauge, SBC Stage 2 Endurance, bagged, Michelin Pilot Super Sports

Last edited by terrydtdi; October 28th, 2013 at 16:38.
terrydtdi is offline   Reply With Quote
Old May 16th, 2012, 06:57   #2
Abacus
That helpful B4 guy

Abacus's Avatar

Join Date: Nov 2007
Location: Nobleboro, Maine
Fuel Economy: And the miles just keep ticking away
Default

Do you have a part number?
__________________
'97 B4: 453,000 miles Malone 3, PP520's, Stage 2 cam, SBC3, ARP studs, 2 1/4" exhaust, 2.5" Cat, no mufflers or EGR.
'96 B4V: 356,000 miles Malone 2+, PP520's, 6 speed, 02J short shifter, E-Codes, G60 brakes, Evo plate, DMF, stainless exhaust, heated leathers, cold weather package
BUG*PWR 2013 Award Winner
Abacus is offline   Reply With Quote
Old May 16th, 2012, 08:00   #3
Baumeister
Veteran Member

Join Date: Feb 2004
Location: Auburn, CA
Fuel Economy: 57/46/42 on B20
Default

Napa Part # 7440
http://www.fleetfilter.com/filter/wi...ses/24770.html

will fit the CAT 2 micron filter and a bunch of others. Here's the WIX 2 micron.

Wix 33528
__________________
Baumeister
'03 NB TDI, 5sp, Sundown Orange, Leatherseats.com 2-tone leather, Rear Fog, ventectomy, Valeo SMF clutch, DLC1019s, Bilstein TCs, Turbo "S" steering wheel, seat heater retrofit, ESP retrofit.
'94 Audi Cabriolet: 75k miles and awaiting its AFN swap...
Baumeister is offline   Reply With Quote
Old May 16th, 2012, 08:30   #4
greengeeker

greengeeker's Avatar

Join Date: Feb 2006
Location: Cambridge, MN
Fuel Economy: 42.2/50.0/58.1
Default

Sweet. I'm all over this.
__________________
- Nick -
02 Jetta TDI 308k (42.2/50.3/59.4 MPG) // 01 Eurovan 24V (18 MPG) // 00 TDI Ranger (39MPG)
How to Post Pics - How to Search
TDIclub trusted mechanic in Minnesota - PM me
greengeeker is offline   Reply With Quote
Old May 16th, 2012, 08:33   #5
loganbmx4gt
Veteran Member

loganbmx4gt's Avatar

Join Date: Apr 2011
Location: Jackson, TN
Default

Is there a part number(s) for the ports also? Where does the return line go to?
__________________

loganbmx4gt is offline   Reply With Quote
Old May 16th, 2012, 08:39   #6
Lightflyer1
Veteran Member

Lightflyer1's Avatar

Join Date: Sep 2005
Location: Round Rock, Texas
Default

The return is connected to the line back to the tank
__________________
How to post pics:http://forums.tdiclub.com/showthread...t=post+picture
2015 Beetle TDI.
Lightflyer1 is offline   Reply With Quote
Old May 16th, 2012, 09:42   #7
greengeeker

greengeeker's Avatar

Join Date: Feb 2006
Location: Cambridge, MN
Fuel Economy: 42.2/50.0/58.1
Default

Quote:
Originally Posted by loganbmx4gt View Post
Is there a part number(s) for the ports also? Where does the return line go to?
You'll need to adapt from 1/2"NPT down to a 5/16" hose barb to mate to the stock fuel lines. As stated the IP return line bypasses the filter and goes directly to the tank.
__________________
- Nick -
02 Jetta TDI 308k (42.2/50.3/59.4 MPG) // 01 Eurovan 24V (18 MPG) // 00 TDI Ranger (39MPG)
How to Post Pics - How to Search
TDIclub trusted mechanic in Minnesota - PM me
greengeeker is offline   Reply With Quote
Old May 16th, 2012, 11:08   #8
Abacus
That helpful B4 guy

Abacus's Avatar

Join Date: Nov 2007
Location: Nobleboro, Maine
Fuel Economy: And the miles just keep ticking away
Default

I assume no issues with flow?
__________________
'97 B4: 453,000 miles Malone 3, PP520's, Stage 2 cam, SBC3, ARP studs, 2 1/4" exhaust, 2.5" Cat, no mufflers or EGR.
'96 B4V: 356,000 miles Malone 2+, PP520's, 6 speed, 02J short shifter, E-Codes, G60 brakes, Evo plate, DMF, stainless exhaust, heated leathers, cold weather package
BUG*PWR 2013 Award Winner
Abacus is offline   Reply With Quote
Old May 16th, 2012, 12:04   #9
Lightflyer1
Veteran Member

Lightflyer1's Avatar

Join Date: Sep 2005
Location: Round Rock, Texas
Default

I too would like to know the part number for the filter head and the adapters for hose sizing.
__________________
How to post pics:http://forums.tdiclub.com/showthread...t=post+picture
2015 Beetle TDI.
Lightflyer1 is offline   Reply With Quote
Old May 16th, 2012, 12:22   #10
Ski in NC
Veteran Member

Join Date: Jul 2008
Location: Wilmington, NC USA
Fuel Economy: 48-52 typical
Default

Probably not a great mod for driving in very low temps. You are losing the thermo tee which heats fuel going to filter.

The fittings are harware store/hydraulic shop off-the-shelf items. Filter head p/n given a few posts up.
__________________
2001 Jetta TDI 5sp Stock 201k mi
1981 Rabbit IDI 4sp Sold at 339k mi
1990 S-10 4.3 4wd 5sp 154k mi
1986 VW Pathfinder 1.6 45hp Marine 4700 Hrs
2001 Cummins 8.3 420hp Marine 1660Hrs..REFIT DONE!!
Ski in NC is offline   Reply With Quote
Old May 16th, 2012, 12:40   #11
loganbmx4gt
Veteran Member

loganbmx4gt's Avatar

Join Date: Apr 2011
Location: Jackson, TN
Default

Cheapest I have seen so far for the filter head is at the link Baumeister provided above. The fittings I have found at Lowes, Part # 79965 for 1/2" NPT to 5/16" barb, $2.37 each. And get a 5/16", 1/4" for A3/B4 guys, barb coupling for the return line which are right there in the same area as the first fitting.
__________________

loganbmx4gt is offline   Reply With Quote
Old May 16th, 2012, 13:28   #12
Honeydew
Veteran Member

Join Date: Nov 2006
Location: Florida
Default

Nice job terrytdi. Good idea cutting off the mounting bracket.
Honeydew is offline   Reply With Quote
Old May 16th, 2012, 17:13   #13
McDillon86
Member

McDillon86's Avatar

Join Date: Feb 2012
Location: Fort Worth, Texas
Default

im new to the forums, so what exactly does this do?
McDillon86 is offline   Reply With Quote
Old May 16th, 2012, 18:24   #14
Lightflyer1
Veteran Member

Lightflyer1's Avatar

Join Date: Sep 2005
Location: Round Rock, Texas
Default

Lets you use a screw on filter that can be cheaper or can filter finer or can last longer, depending on what filter you choose to use. Not necessarily better, easier or more reliable.
__________________
How to post pics:http://forums.tdiclub.com/showthread...t=post+picture
2015 Beetle TDI.

Last edited by Lightflyer1; May 16th, 2012 at 18:29.
Lightflyer1 is offline   Reply With Quote
Old May 16th, 2012, 18:28   #15
McDillon86
Member

McDillon86's Avatar

Join Date: Feb 2012
Location: Fort Worth, Texas
Default

ok so its like a oil filter relocation mod with better filter type?
