Default Trouble Remove Transmission on 05 TDI

Hello, I am right in the middle of swapping my 09A automatic for an 02J 5 speed manual. I have run into a bit of a hurdle while trying to get the auto out of the car. It seems that I don't have enough room to remove the transmission to engine bolts, as my triple square socket seems to be taking up most of the space. I feel like a total goof since I am assuming this should be easy since all any of the instructions say is "remove engine to trans bolts" and that's it. I have included some photos so that hopefully I can get some insight as to what other tool I need or how I should go about getting these things out.









Also, while removing my dogbone mount, I noticed that one of the bolt heads in the subframe was broken off leaving only a rusted stud. Well that took me an hour to get off, and now I just have the stud taunting me. What would be the best course of action to remove it? I would prefer not to helicoil if I can help it.

spartan is offline   Reply With Quote
Old April 23rd, 2012, 11:21   #2
PDJetta
Veteran Member

PDJetta's Avatar

Join Date: Nov 2003
Location: Northern Virginia
Default

Last first: For the busted off bolt on for the dogbone mount I would soak in PB Blaster for a couple of days (douse it a couple of times a day) and after the first dousing, I would take a BFH (a big hammer) and hit the top of the busted bolt a few times, as if driving a nail. The idea is to loosen the threads. Don't his so hard as to damage the threads. soak in PB Blaster after hammering. After soaking and tappping, take a big pair of vice grips or a pipe wrhench and turn the bolt bit out. It will come out.

For the auto transaxle tripple squares, '05 was a split model year, with both the A4 and A5 offered. Which is yours? I suspect the shop manual will state to use a special purpose VW tool to get to them. If you had a tripple square that would accept a wrench you'd be in business. I can check my Bentley tonight and see if any special tool is called for. I have two bentleys--One for the A4 and one for the A5.

A couple of them look like you could use a 1/2 inch drive universal joint on a long extension with your tripple square bit. The other two, no way.

--Nate
__________________
2004 Jetta GLS TDI 5M Plat. Grey w/ Leather. RC Stage 2, G60/VR-6 clutch, steel skid plate, TDIHeater, CAT 2um fuel flter, Phat Noise, and VDO boost & volt guages.

Last edited by PDJetta; April 23rd, 2012 at 11:25.
PDJetta is offline   Reply With Quote
Old April 23rd, 2012, 12:31   #3
JamesRZR1
Newbie

Join Date: Jan 2004
Location: Angus, Ontario
Default

For trans axle triple squares I used and 1/2 wrench with a triple square bit cut down, to give me some room. As for the broken stud, as PDJetta stated soak it with PB Blaster for a day, the stuff doesn't work instantly, and if you have a torch heat the hell out of it and then use the vice grips to break it free.

HTH

James.
JamesRZR1 is offline   Reply With Quote
Old April 23rd, 2012, 13:16   #4
Redneck Truck
Veteran Member

Redneck Truck's Avatar
Default

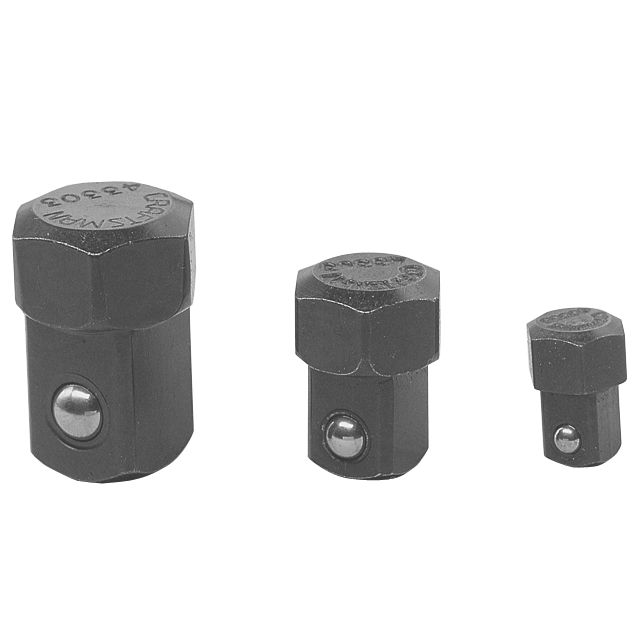

http://www.sears.com/craftsman-3-pc-...p-00943303000P
__________________
- Still parting a 2002 4-door reflex silver Golf TDI 5-speed.
- Still parting most of 2001 Audi TT 225 6-speed engine bay.

Please help me clear out my garage. PM me.
Redneck Truck is offline   Reply With Quote
Old April 23rd, 2012, 13:40   #5
spartan
Veteran Member

spartan's Avatar

Join Date: Aug 2011
Location: MI
Default

Thanks for the help, I also ordered a set of stubby triple square bits off amazon, so hopefully I will be able to get these things out with some help from swivels and other parts. I will also look into the socket cap set, I know I could have used those in other jobs, so maybe I will pick those up regardless. Oh and my car is an A4, jetta wagon.

I already started soaking that bolt, but I am going to wait til the transmission is out of the way regardless to try and pull it.

THANKS!
spartan is offline   Reply With Quote
Old April 23rd, 2012, 16:55   #6
PDJetta
Veteran Member

PDJetta's Avatar

Join Date: Nov 2003
Location: Northern Virginia
Default

Quote:
Originally Posted by Redneck Truck View Post
Those are slick. I'll have to get a set!
__________________
2004 Jetta GLS TDI 5M Plat. Grey w/ Leather. RC Stage 2, G60/VR-6 clutch, steel skid plate, TDIHeater, CAT 2um fuel flter, Phat Noise, and VDO boost & volt guages.
PDJetta is offline   Reply With Quote
Old April 25th, 2012, 08:40   #7
red golf tdi

Join Date: Jan 2001
Location: Minneapolis,MN
Fuel Economy: 53/48/42
Default

Quote:
Originally Posted by PDJetta View Post
Last first: For the busted off bolt on for the dogbone mount I would soak in PB Blaster for a couple of days (douse it a couple of times a day)...
--Nate
I'd recommend Kroil. It's super industrial and they "say" frozen lug nuts will "fall off"....ok sounds like an exaggeration, but it is the best I've used in penetrating oil. It’s “Twice as good as JB80” and “Four times better than WD40”.
__________________
Terry
1999.5 Golf TDI 2 door 355K; Owner of FrostHeater-Custom Engine Heater Kits
24 different heater kits available for Volkswagens. Got Heat? Be warm this winter! http://www.FrostHeater.com
red golf tdi is offline   Reply With Quote
Old June 20th, 2012, 19:27   #8
grubyuppie
Member

grubyuppie's Avatar

Join Date: Feb 2012
Location: Albuquerque
Default

What tool or combination of tools did you end up using to get out the 2 bolts on top of the auto tranny. Is that triple square bolt a 14mm? I've been looking for a universal joint triple square socket to fit in that tight space. Where did you buy yours?

thanks

Last edited by grubyuppie; June 20th, 2012 at 22:04.
grubyuppie is offline   Reply With Quote
Old June 21st, 2012, 17:53   #9
spartan
Veteran Member

spartan's Avatar

Join Date: Aug 2011
Location: MI
Default

I bought a set of shorty triple square bits from amazon.com. They were dramatically shorter (.75-1") than the normal sockets. Those and a wobble extension was all that I needed.
spartan is offline   Reply With Quote
